Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

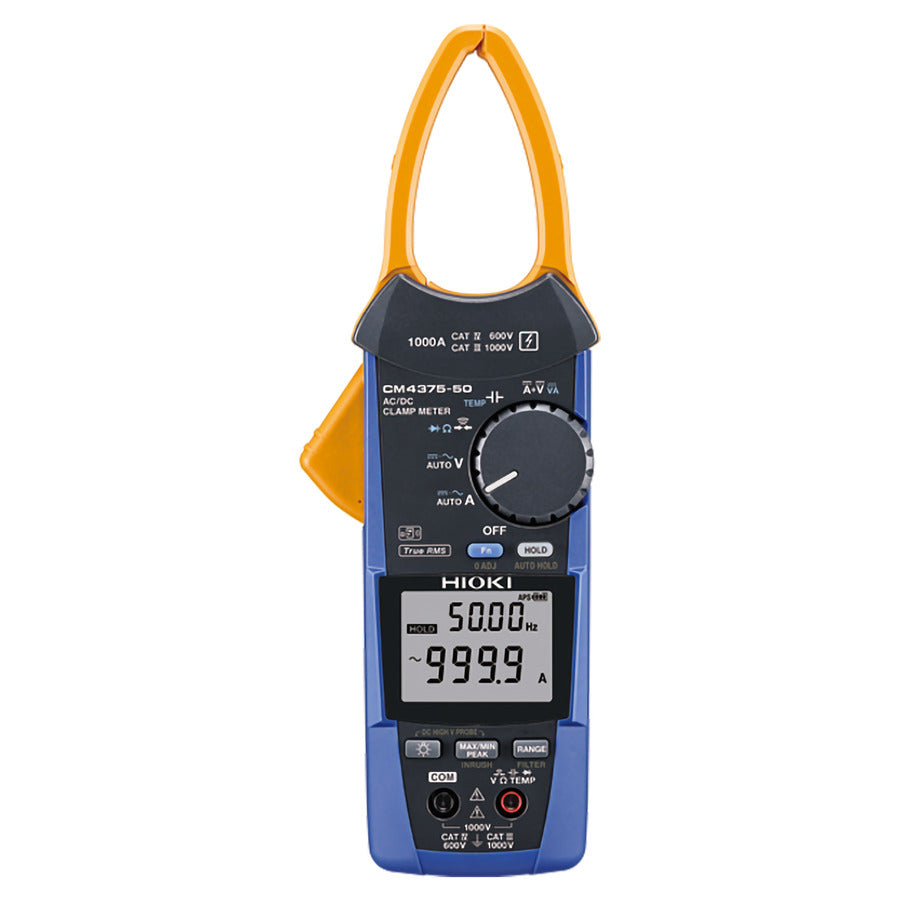

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4375-50 is a 1000 A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The broad IP54 dustproof and waterproof enclosure to enable professionals to work quickly in challenging situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V is ideal for inspection of solar PV system.
CAT IV 600 V, CAT III 1000 V
Easily get into tight spaces between cables thanks to thin sensor structure
Measure DC voltages of up to 1000 V
Automatic AC/DC function helps boost work efficiency, Measure up to 1000 A
Simultaneously measure inrush current in RMS and crest values
Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel file.
Harmonic analysis from 1st to 30th order with GENNECT Cross
Wireless Adapter Z3210 Included
DC High V Probe Mode
Enables high voltage measurement up to CAT III 2000 V
Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2010 to compatible Hioki clamp meters

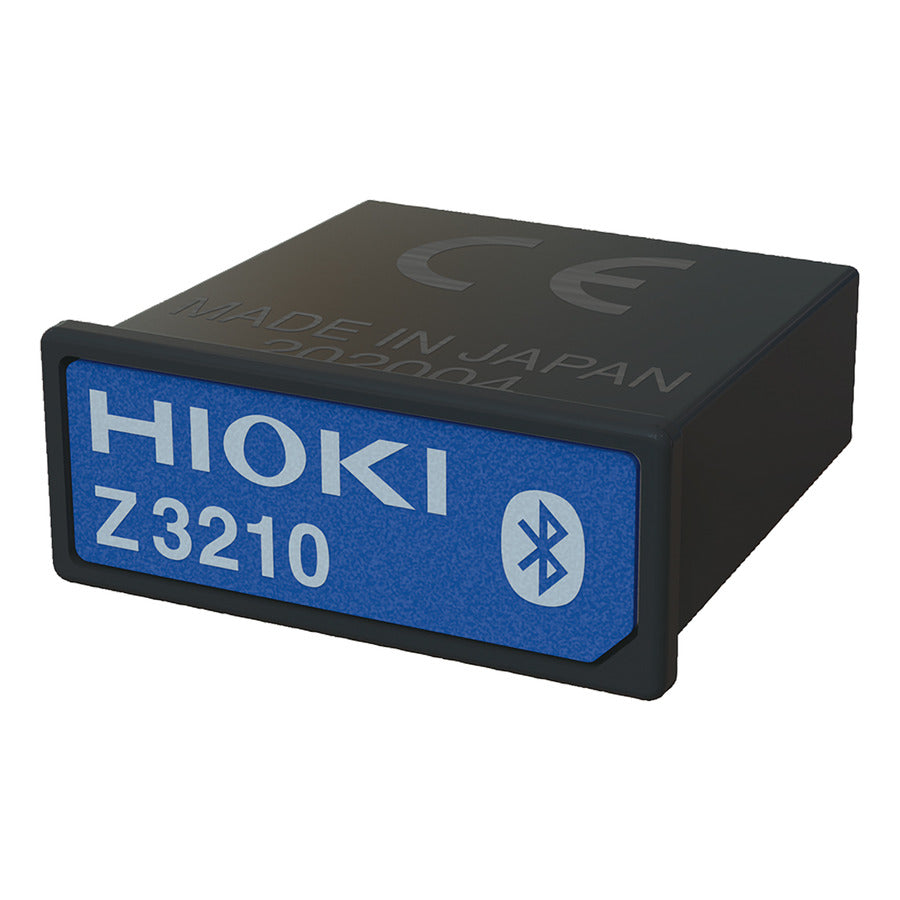

When the Wireless Adapter Z3210 is installed, Bluetooth wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

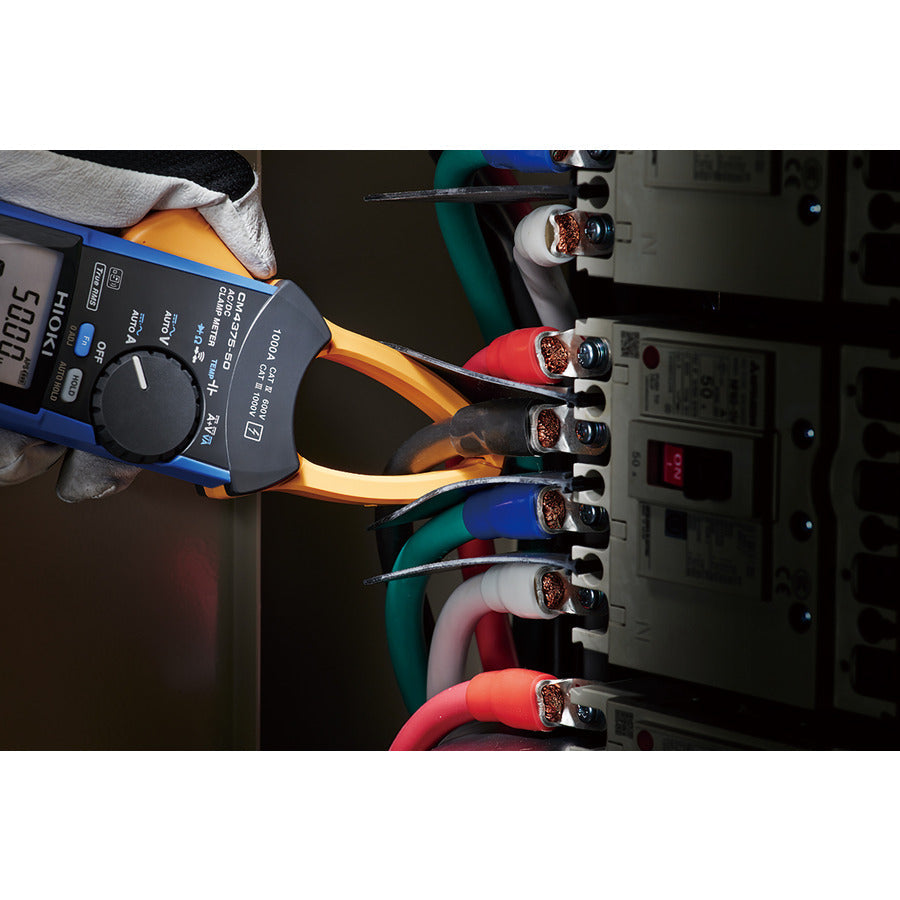

Panel overcrowding is commonly found in many power distribution breakers and termination boxes. The newly designed thin sensor gets into even the most limited spaces. Eliminate the issues of trying to find the right wire or forcing the clamp around thick cables.

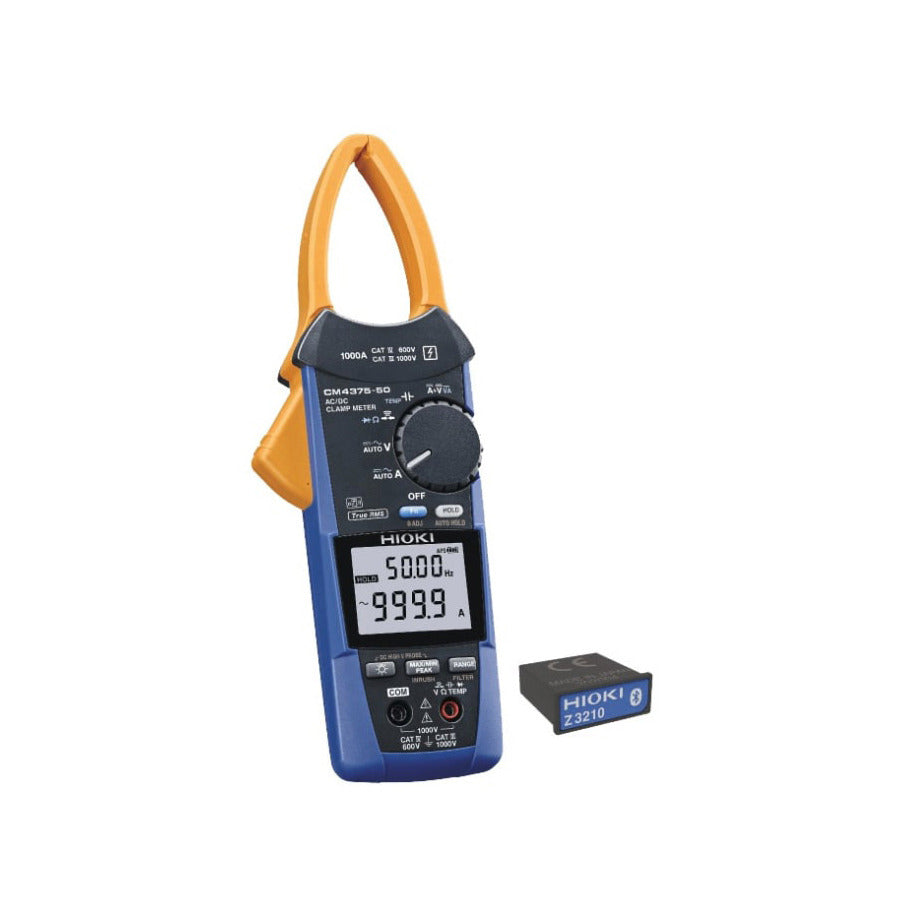

CM7345-90 Clamp Meter
Z3210 Wireles Adaper included
Test Lead L9300
Carrying Case C0203
LR03 Alkaline battery ×2
Instruction Manual ×2
Operating Precautions ×1
