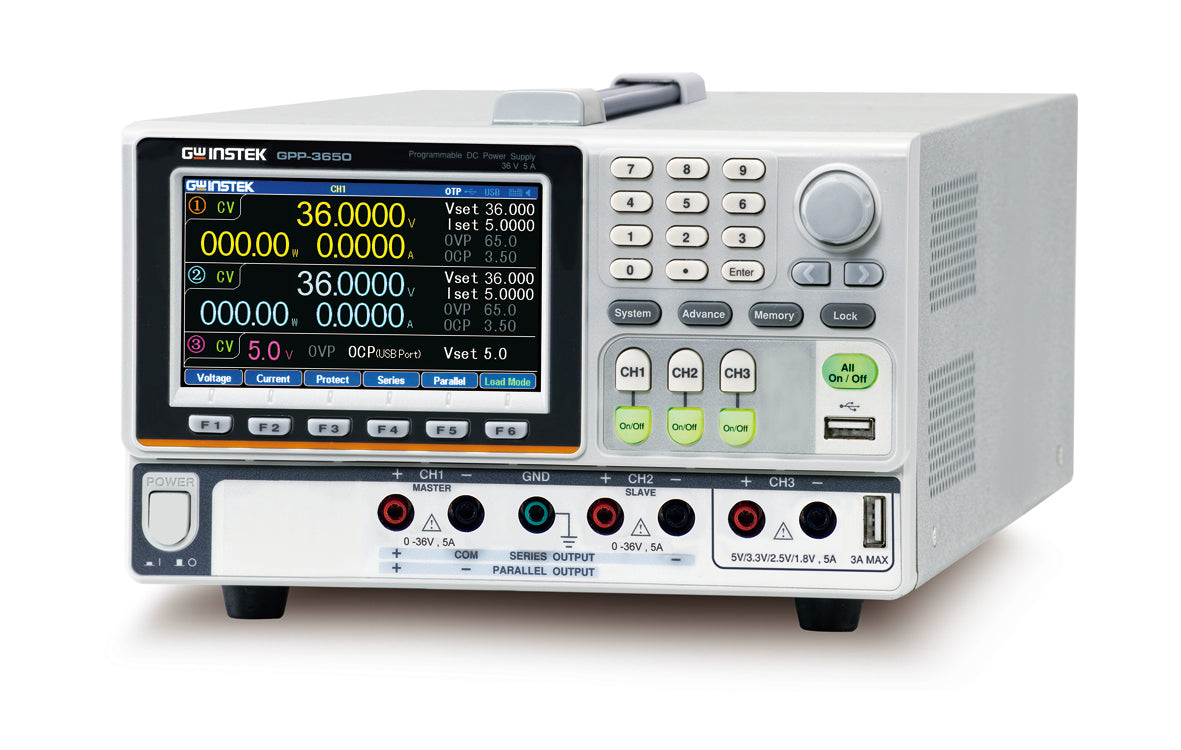

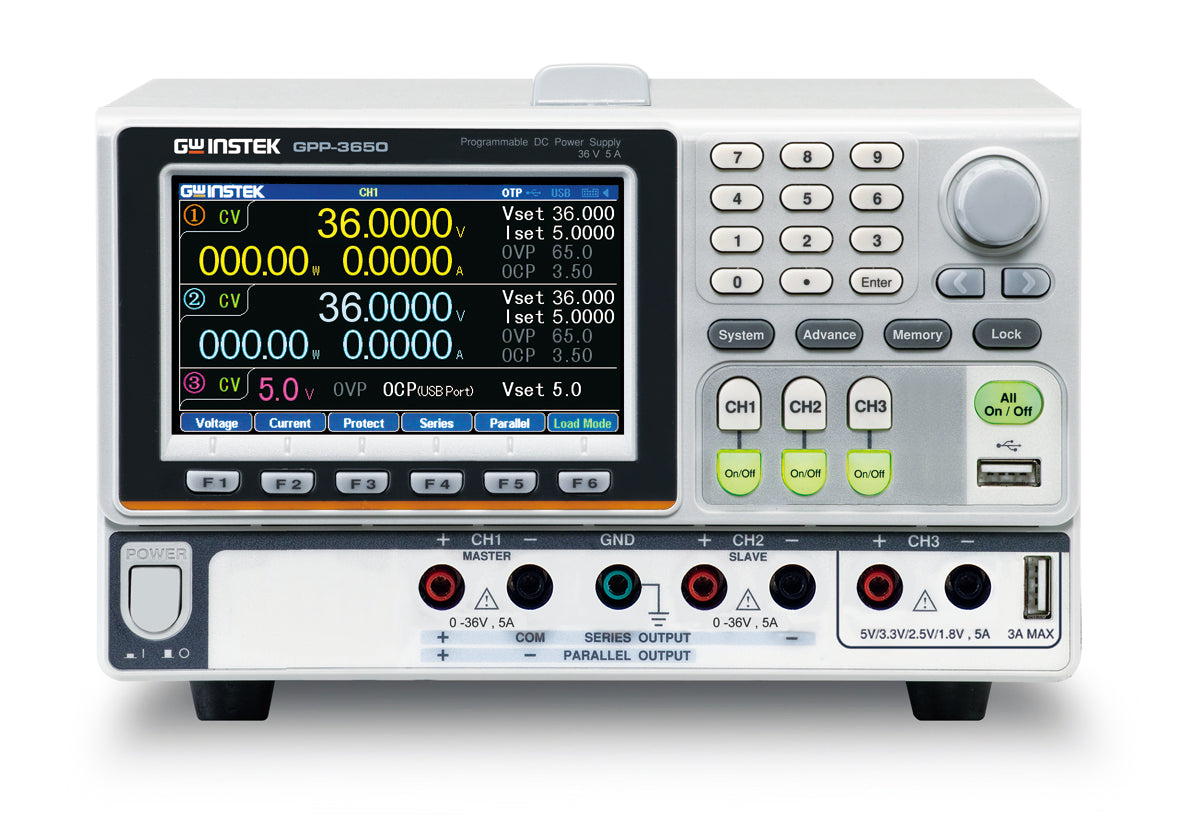

GPP-3060/6030/3650 triple-channel programmable DC power supplies are extension models of the GPP-X323 series. The maximum output power of these three models is 385 W.
GPP-3060 supports CH1/CH2: 0 V to 30 V / 0 A to 6 A output; GPP-6030 supports CH1/CH2: 0 V to 60 V / 0 A to 3 A output; GPP-3650 supports CH1/CH2: 0 V to 36 V / 0 A to 5 A output; CH3 of three models supports 1.8 V, 2.5 V, 3.3 V, 5.0 V/5 A.
GPP-3060/6030/3650 inherit the high program resolution (1 mV/0.1 mA) and read back resolution (0.1 mV/0.1 mA) of the GPP series with low-ripple noise characteristics ≦1 mVrms/≦2 mArms and ≦100 µs output transient recovery ability. An independent output on-off switch is provided for each channel.
The unique load function of the GPP series can arbitrarily set CH1/CH2 as power supply or load function. For example, one channel is set as power output, and the other channel is set as load function to consume the power of the DUT to satisfy simple battery charging and discharging or load characteristic test by a single power supply.
