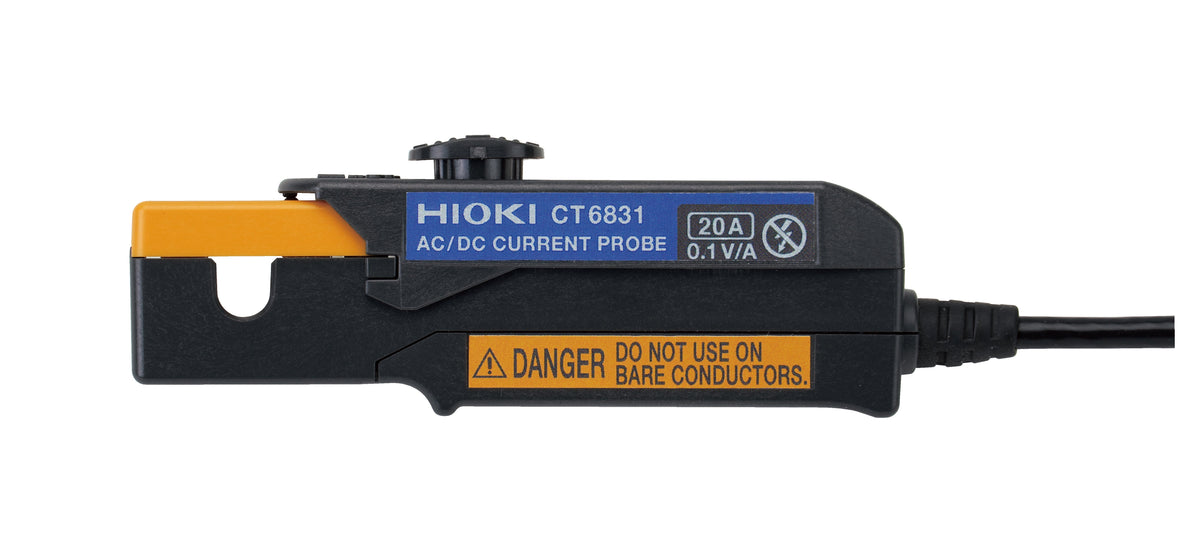

Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
Ultra small zero flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3% rdg., wide temperature range -40 to 85 °C, measurable current up to 20 A, ME15W connector.
• High Accuracy ±0.3% rdg.

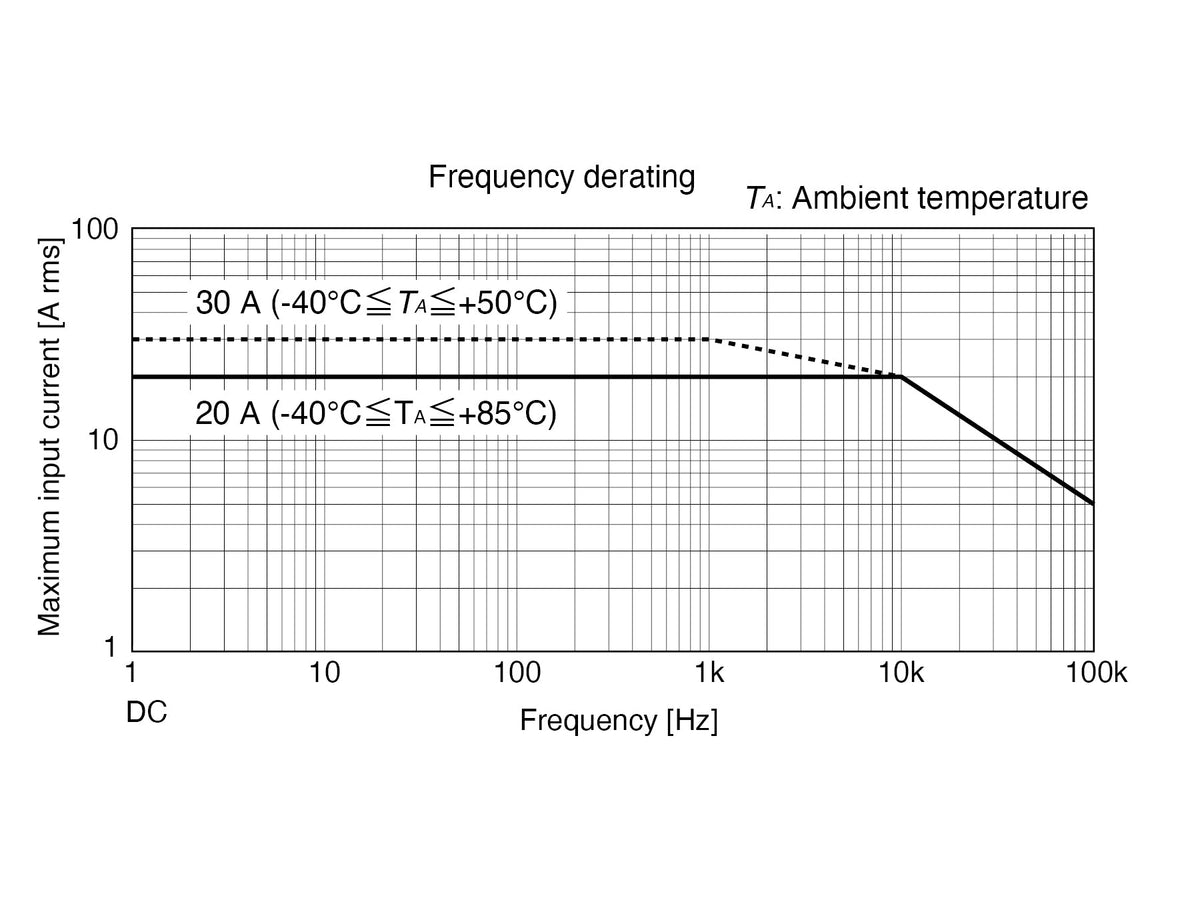

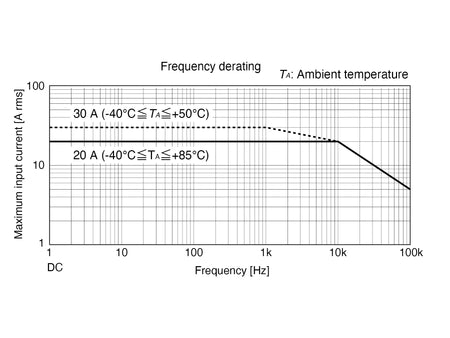

• Measurable current up to 20 A
• Ultra small size sensor with slide open/lock mechanism
• Wide temperature range -40 to 85 °C

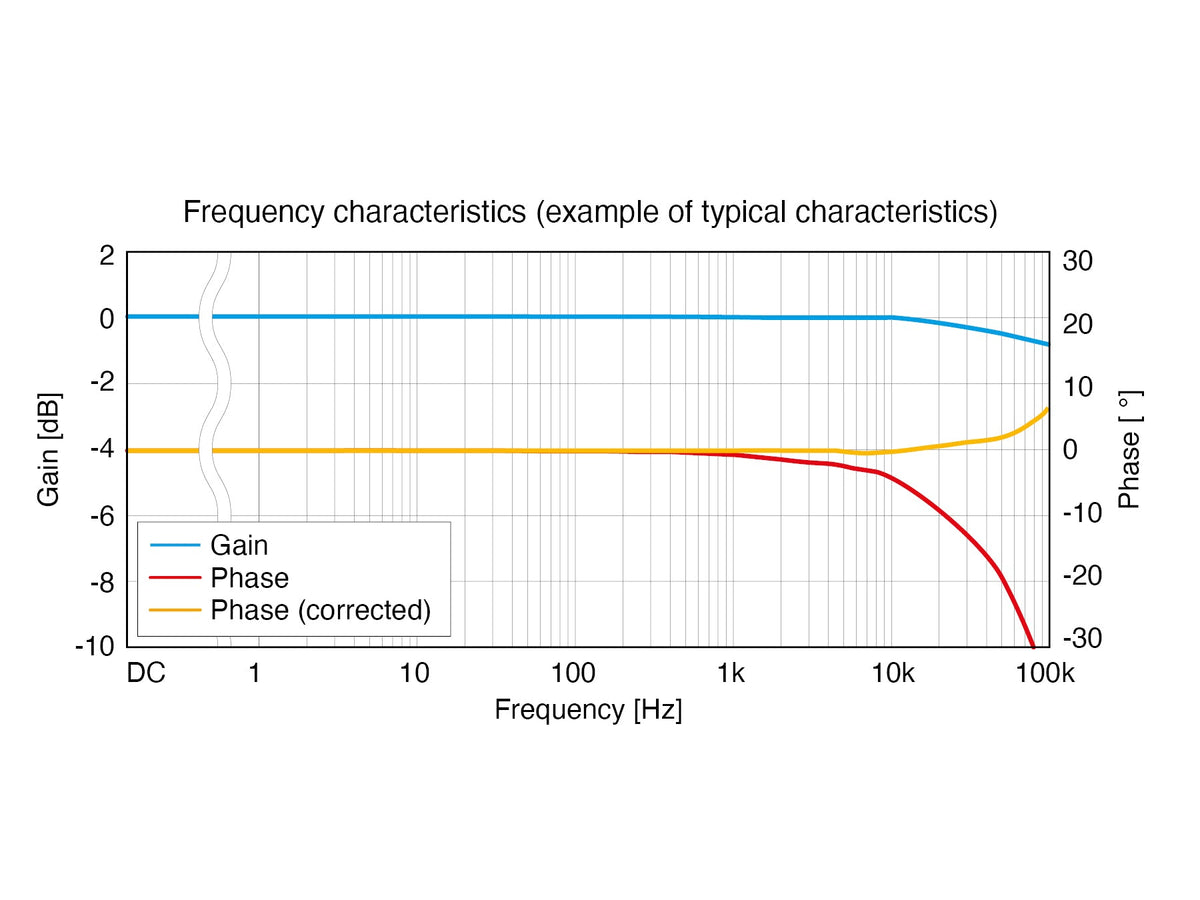

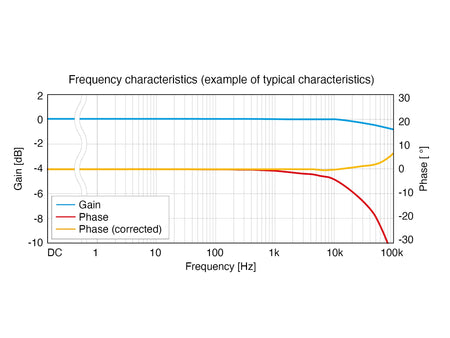

• Bandwidth DC to 100 kHz

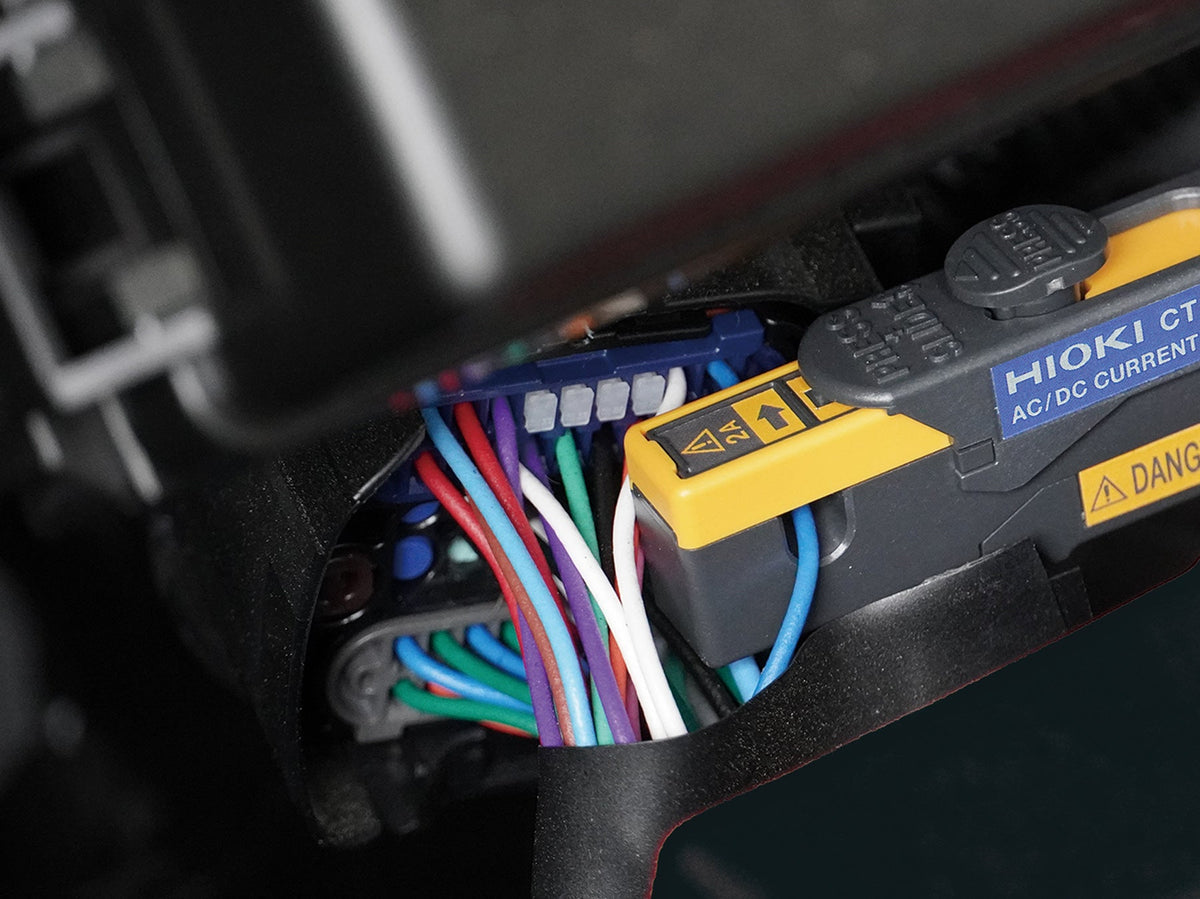

• Easy installation, even in tight spaces
• Accurate low current measurement
• Automatic recognition by HIOKI Power Analyzer PW8001
• Allows for stable measurement from Alaska to the Sahara
• Development and analysis tool for improving the fuel efficiency of electrical vehicles
• Consumption measurement of low power EV circuits like wipers, entertainment systems, seat heating, power steering, etc.
• Optimizing the overall energy consumption of low power circuits in EVs to extend the driving range
• Optimizing the overall energy consumption of low power circuits in electrical construction vehicles or electrical agricultural vehicles to extend the time between charging

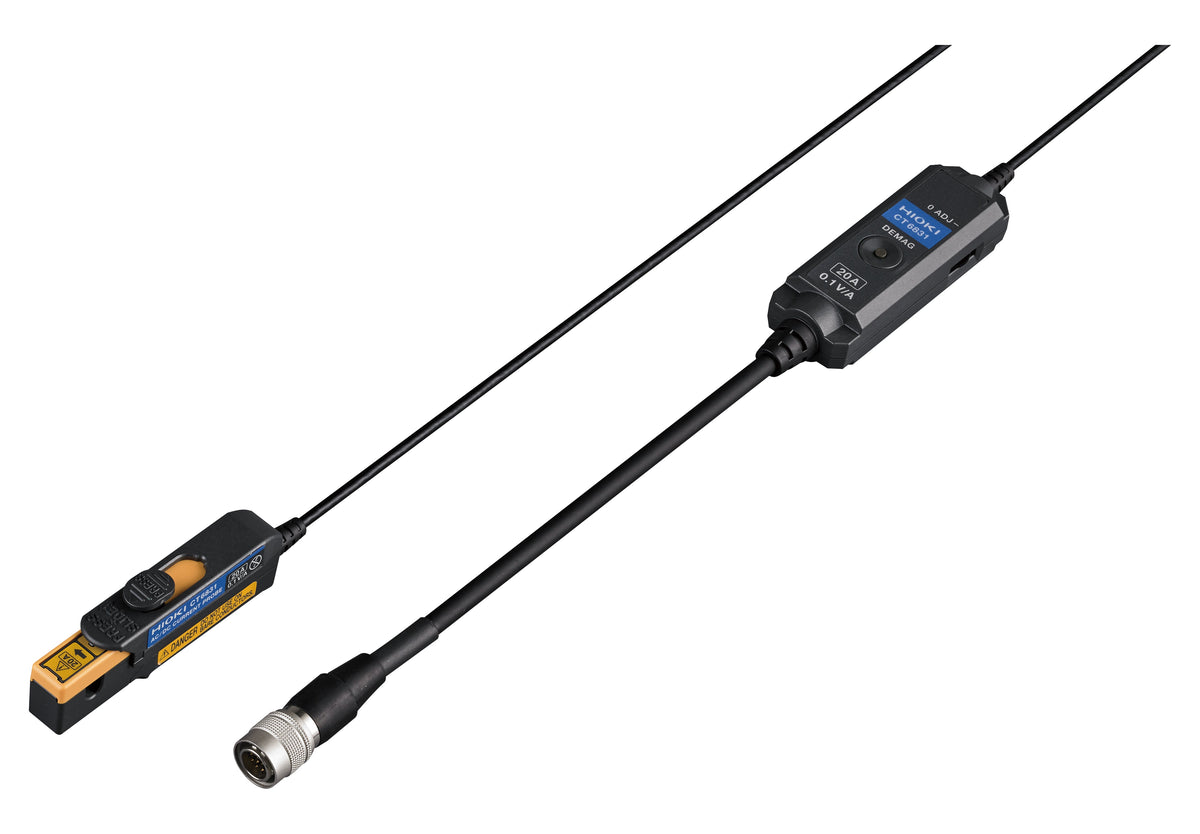

The ultra-small CT6831 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents up to 20 A AC/DC and frequencies up to 100 kHz are possible even in the most confined spaces with a basic accuracy of ±0.3% rdg. This compact sensor gives development engineers of EVs, electrical trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor energy consumption under the most extreme temperature conditions.
Designed to be used in combination with a HIOKI Power Analyzer, Memory Recorder or Data Logger, the CT6831 helps provide detailed energy consumption insight, for example, of a vehicle under test. Combined with a CT9555, CT9556 or CT9557 Power Supply Unit, the CT6831 Current Probe can also be connected to third-party equipment such as a DAQ system or an oscilloscope.
• CT6831 in hardcase
• Instruction Manual
• CT6830 AC/DC Current Probe
• PW8001 Power Analyzer
• PW6001 Power Analyzer
• PW3390 Power Analyzer
• LR8101 Data Logger
• LR8102 Data Logger
• M7103 Power Measurement Module
• MR6000 Memory Recorder
• U8977 Current Module
• CT9555 Power Supply Unit
• CT9556 Power Supply Unit
• CT9557 Power Supply Unit
