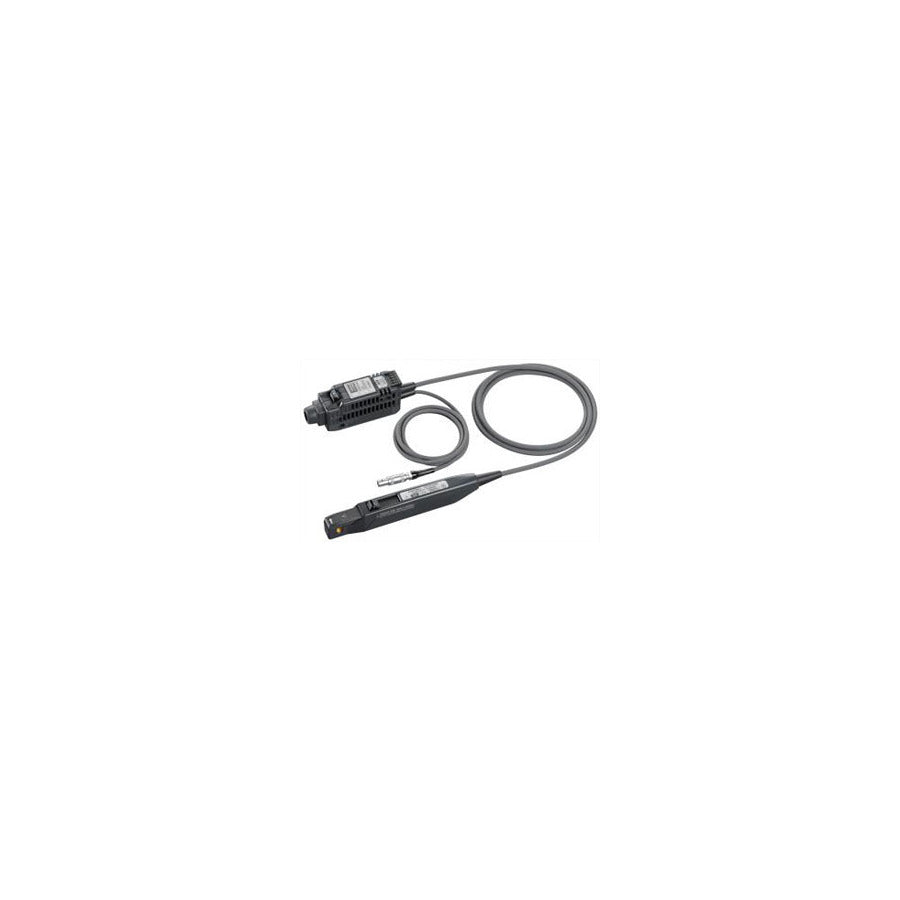

Hioki CT6701
Hioki CT6701
Hioki
SKU: 26410.1 | MPN: CT6701
New

Hioki CT6701 High-Sensitivity Current Probe, AC/DC, 1mA, 5 A, 120MHz, 7.5 A, Insulated Conductor

£3,086.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Hioki

Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

Hioki CT6701 Current Oscilloscope Probe

Features and Specifications

  • Wide band: DC to 120 MHz (-3 dB)
  • High S/N characteristic ideal for ultra low 1 mA order current waveforms
  • Connect directly to an oscilloscope's BNC input terminal *1
  • High Signal-to-Noise Ratio
  • One-touch Disconnection from the BNC Terminal
  • Automatic Zero-Adjustment and Demagnetization with a Single Button

Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6701 is a high-sensitivity current probe that offers a wide DC to 120 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield with low insertion loss to reduce derating that may result from increased sensor head heating caused by eddy currents, making it ideal for measuring current of low impedance circuits and waveforms that include high frequency components.

What's in the Box

  • 1 x Carrying Case
  • 1 x Instruction manual
