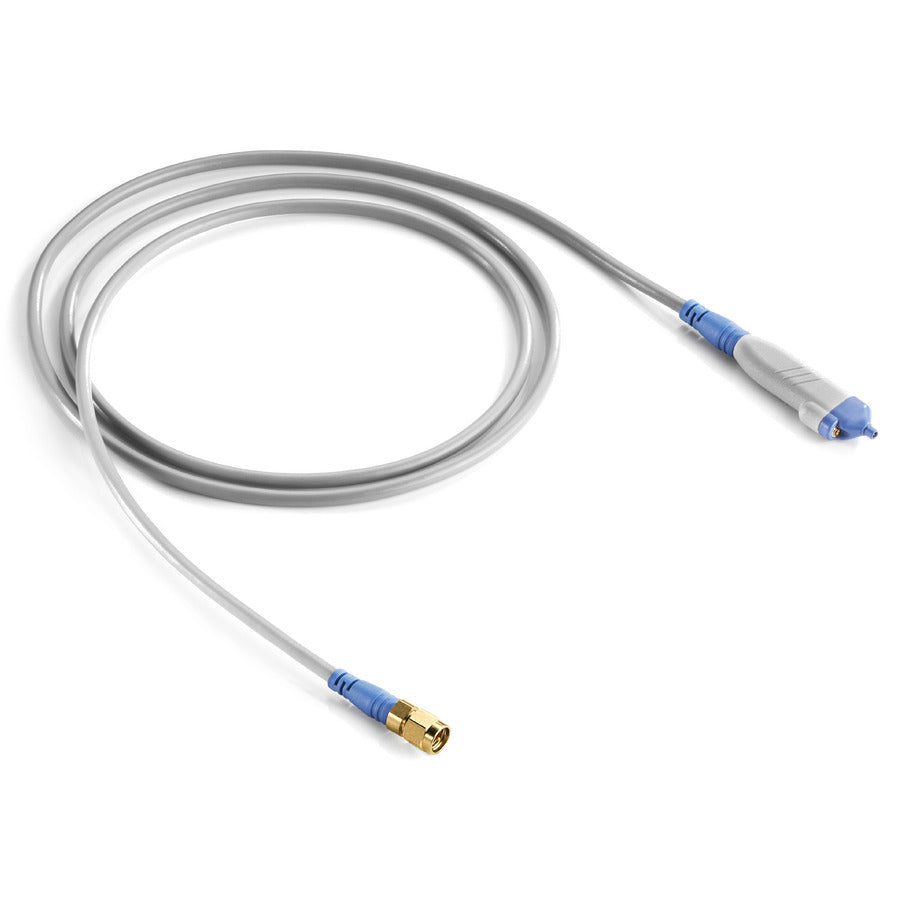

Rohde & Schwarz RT-ZZ80 10:1 8 GHz Passive Oscilloscope Probe
Features and SpecificationsThe R&S® RT-ZZ80 8 GHz probe provides an attenuation factor of 10:1 at an input impedance of 500 Ω || 0.3 pF. Its SMA plug is connected to the oscilloscope via the provided SMA-BNC adapter. The probe can be easily selected as a predefined probe from the R&S® RTO oscilloscope menu.
Transmission line probes like R&S RT-ZZ80 are a special type of passive probes. They are based on an impedance-controlled microwave cable (transmission line), which is terminated into a 50 Ω input impedance of the measuring instrument.
The R&S RT-ZZ80 has a wide dynamic range. High input levels up to 20 V (RMS) can be measured without distortion. The low inherent noise enables the measurement of small input signals.
The comprehensive accessory set allows connection to a wide variety of devices under test (DUT) without impairing the very high bandwidth, short rise time and the low input capacitance of the R&S RT-ZZ80.
