Teledyne LeCroy T3CP100-2
Teledyne LeCroy T3CP100-2
Teledyne LeCroy
SKU: 45581.1 | MPN: T3CP100-2
New

Teledyne LeCroy T3CP100-2 Current Probe, AC/DC, 50mA, 70.7 A, 2MHz, 600V, 12mm, 100 A, T3CP Series

£1,160.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Teledyne LeCroy

Teledyne LeCroy is a global leader in oscilloscopes, protocol analysers and test solutions for electronics, automotive, aerospace and communications applications. Its portfolio includes high-performance oscilloscopes, serial data analysers, power analysers and quantum testing systems designed to deliver exceptional insight into complex electronic signals. Engineers worldwide trust Teledyne LeCroy for precision, innovation and advanced debugging capabilities.

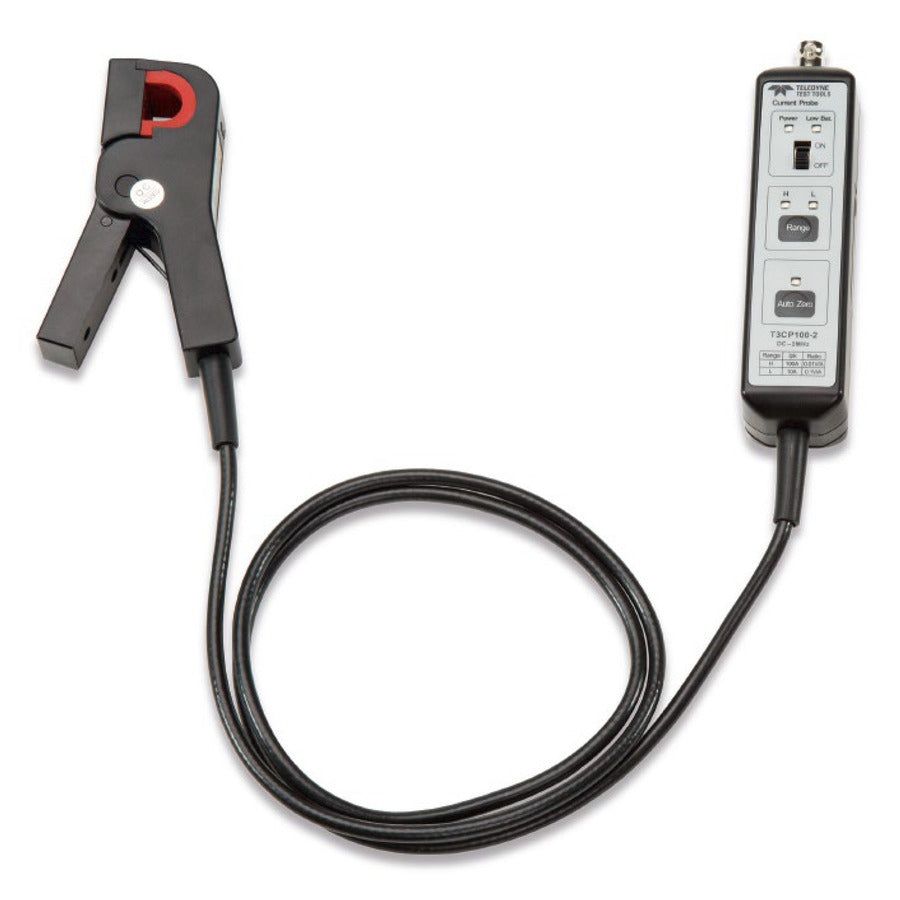

Teledyne LeCroy T3CP100-2 AC/DC Current Oscilloscope Probe

Features and Specifications
  • Accurate and easy current measurements
  • Wide 2 MHz bandwidth
  • Maximum AC Peak to Peak current of 200 A
  • Dual range 10 A Peak, 7 A rms / 100 A Peak, 70 A rms
  • Maximum conductor voltage of 600 V
  • Measurement jaw size 12 mm
  • Auto Zero button and indicator
  • Use with any scope with a 1 MΩ input and BNC connector
  • Powered by 9 V battery or wall plug power supply (included)

Teledyne Test Tools new T3CP100-2 current probe is a DC to 2 MHz bandwidth active AC/DC coupled probe, featuring 2 ranges of 100 A Peak, 70 A rms / 10 A Peak, 7 A rms, fast and accurate waveform capture, risetime of ≤ 175 ns and low test circuit loading. This probe can be used with any oscilloscope having a 1 MΩ BNC input.

What's in the Box
  • Universal Power supply, DC 12 V / 1 A - 1
  • 1 m BNC to BNC cable - 1
  • Instruction Manual - 1
  • Calibration Report - 1
