Teledyne LeCroy PP022-1
Teledyne LeCroy PP022-1
Teledyne LeCroy
SKU: 45250.1 | MPN: PP022-1
New

Teledyne LeCroy PP022-1 Passive Probe, 500MHz, 10X, 10 pF, 500V, CAT2, PP Series

£415.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Teledyne LeCroy

Teledyne LeCroy is a global leader in oscilloscopes, protocol analysers and test solutions for electronics, automotive, aerospace and communications applications. Its portfolio includes high-performance oscilloscopes, serial data analysers, power analysers and quantum testing systems designed to deliver exceptional insight into complex electronic signals. Engineers worldwide trust Teledyne LeCroy for precision, innovation and advanced debugging capabilities.

Teledyne LeCroy PP022-1 10:1 500 MHz Passive Oscilloscope Probe

Features and Specifications
  • Attenuation Ratio 10:1
  • 500 MHz bandwidth
  • Maximum Voltage 500 V
  • Input Capacitance 10 pF
  • Input Resistance 10 MΩ
  • Cable Length 1.3 m
  • Compensation Range: 10 - 20 pF

Teledyne LeCroy PP022-1 is a passive high impedance voltage oscilloscope probe designed and calibrated for use with general purpose oscilloscopes having an input impedance of 1 MΩ and can be compensated for use with instruments having an input capacitance between 10 and 20 pF. It is compatible with oscilloscopes that automatically detect probe attenuation and adjust their readout accordingly.

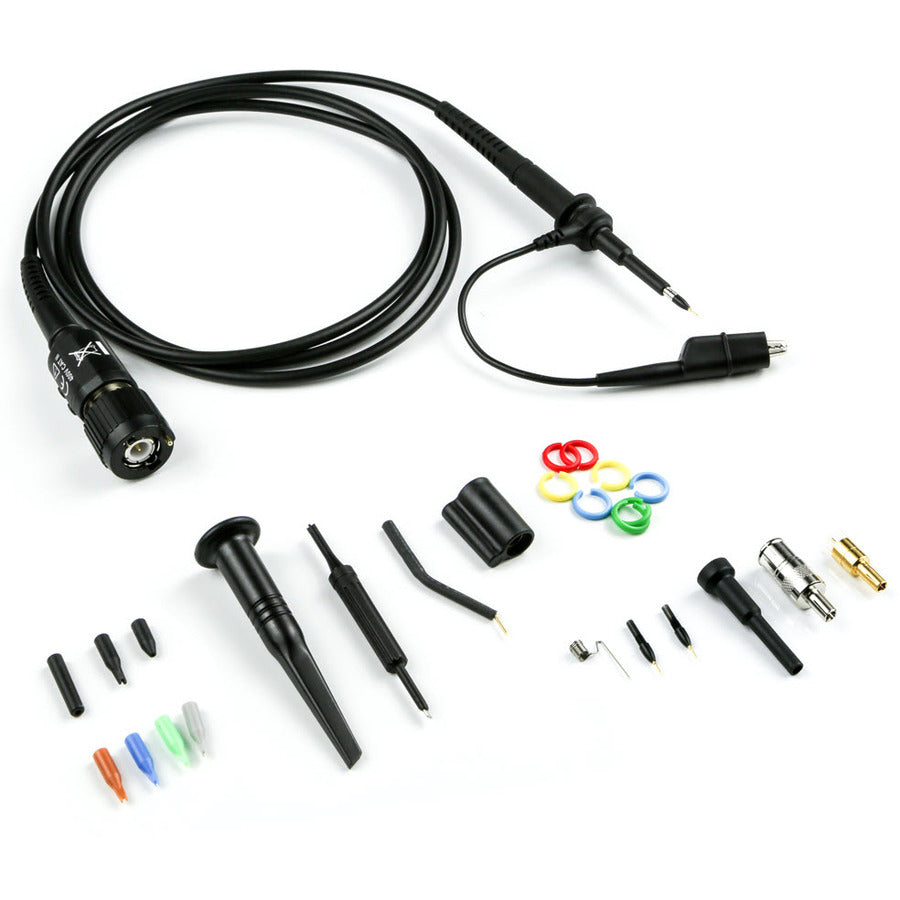

What's in the Box
  • Ground Lead with Alligator Clip
  • 2x Rigid Probe Tip (1 installed standard)
  • Short Collar (installed standard)
  • Sprung Hook
  • Trimmer Tool
  • Long Collar
  • 5x IC Tip Insulators (Black, Brown, Blue, Green, Gray)
  • Tip Insulator 2.5mm
  • Probe Tip Cover
  • BNC Adapter 2.5mm
  • Swivel Ground Lead
  • Swivel Ground Lead Adapter
  • Ground Spring
  • PCB Adapter
  • Spring Tip
  • 8x Color Coding Rings (2 ea. yellow, red, green, blue)
