B&K Precision offers 8 modules for use with its MPS series mainframes (MPS1000 and MPS1001).
Key facts (MPS1101):
Rated Voltage: 15V
Rated Current: 20A
Multi-range
Note: Mainframes are sole separately
100W Modules | ||||
|---|---|---|---|---|
Model |
MPS1101 |
MPS1102 |
MPS1103 |
MPS1104 |
Rated Voltage |
15V |
32V |
60V |
100V |
Rated Current |
20A |
9.5A |
5A |
3A |
Ranging |
Multi-range (Autoranging) |
|||
Traditional power supplies only output their rated power at one voltage/current point. The MPS Series 100 W multi-range modules extend the rated power from one point to a curve, delivering the rated power at a wider range of voltage/current combinations.
Identical modules can be combined in series/parallel to increase the maximum voltage/current output to 400 V or 80 A.
When series/parallel operation is enabled, the display automatically adjusts for increased voltage/current limits.

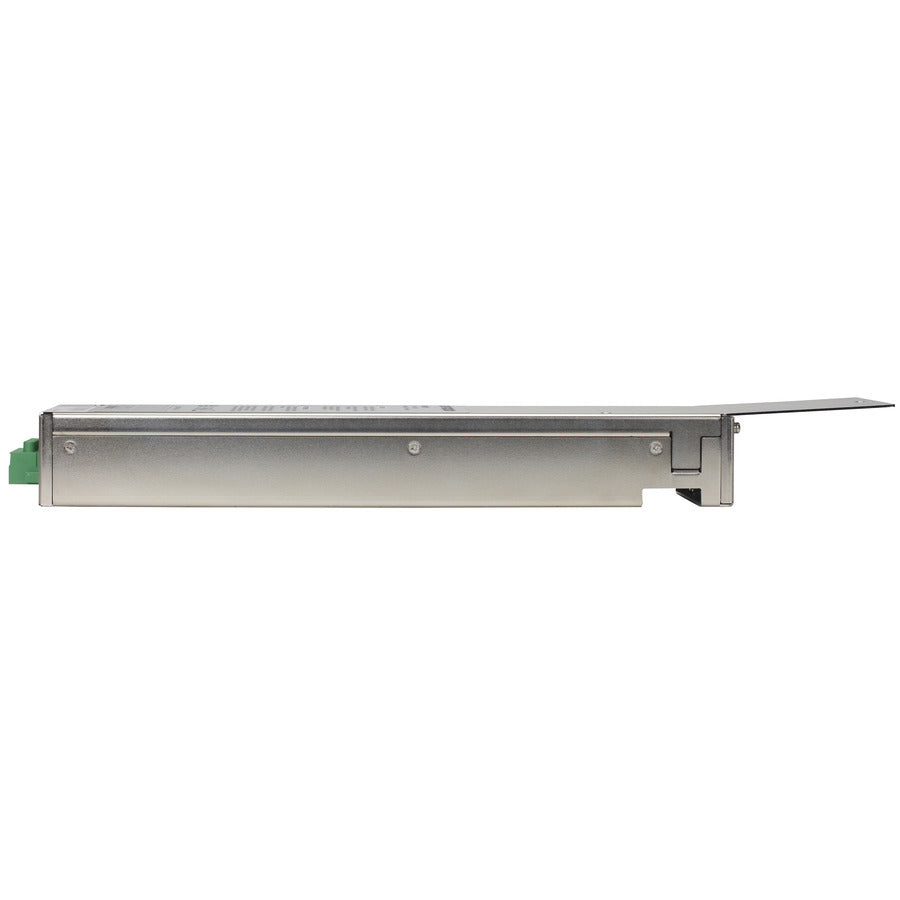

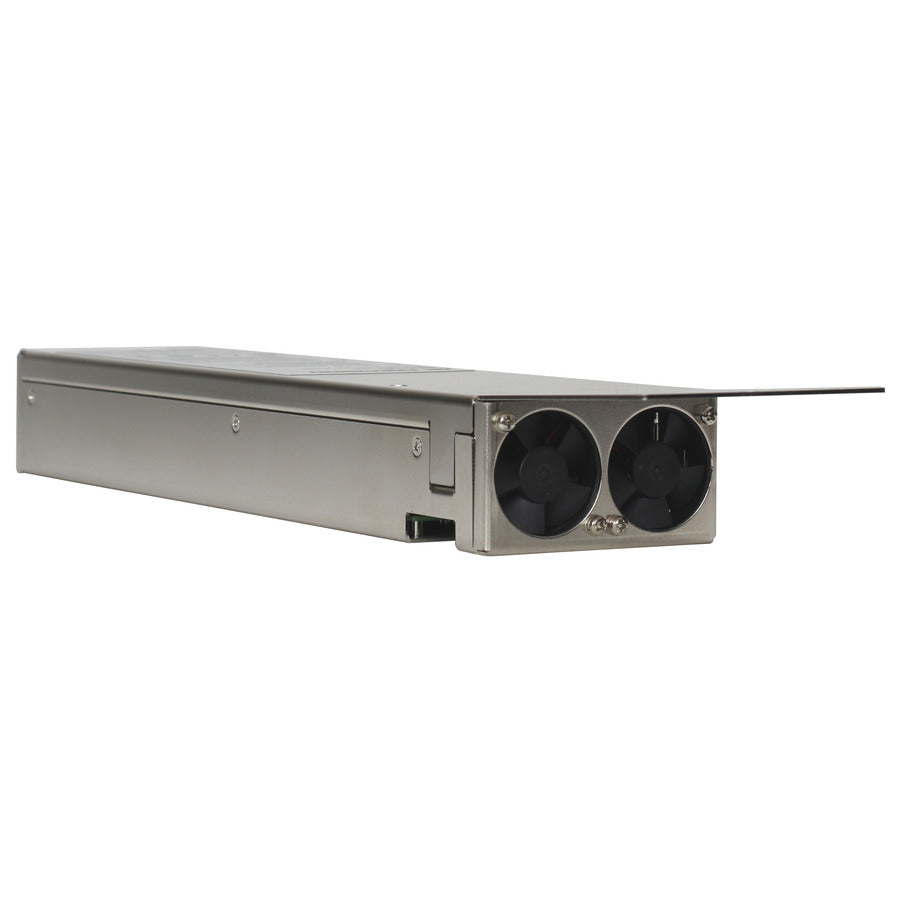

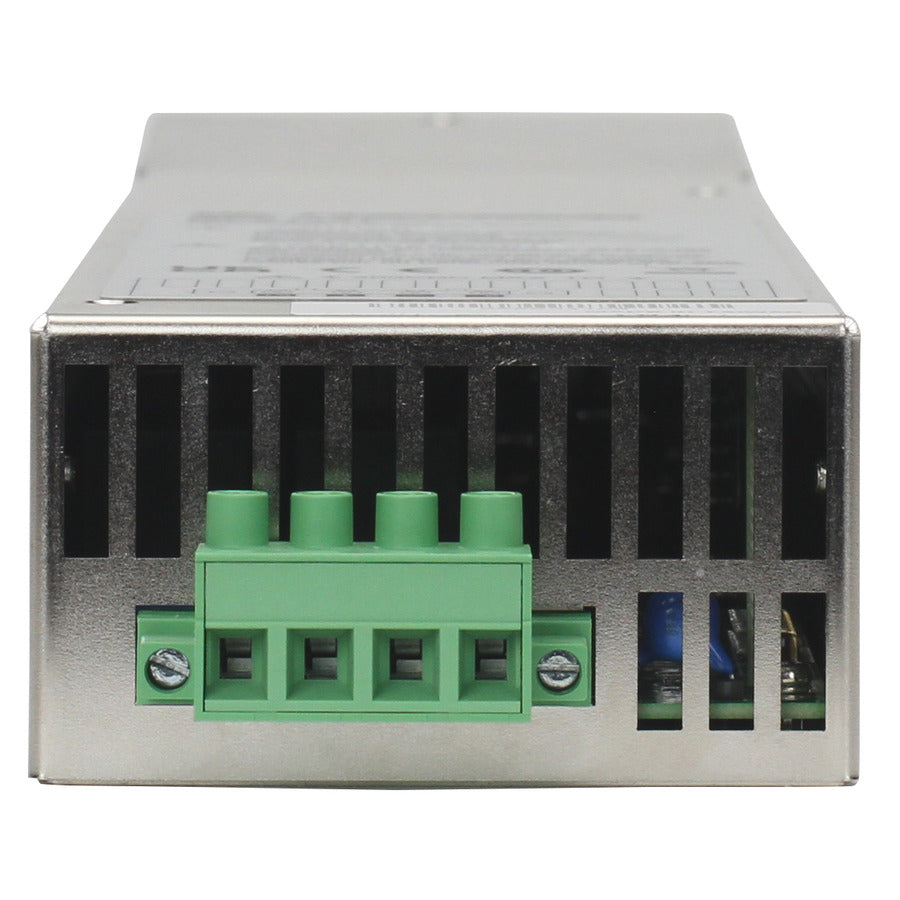

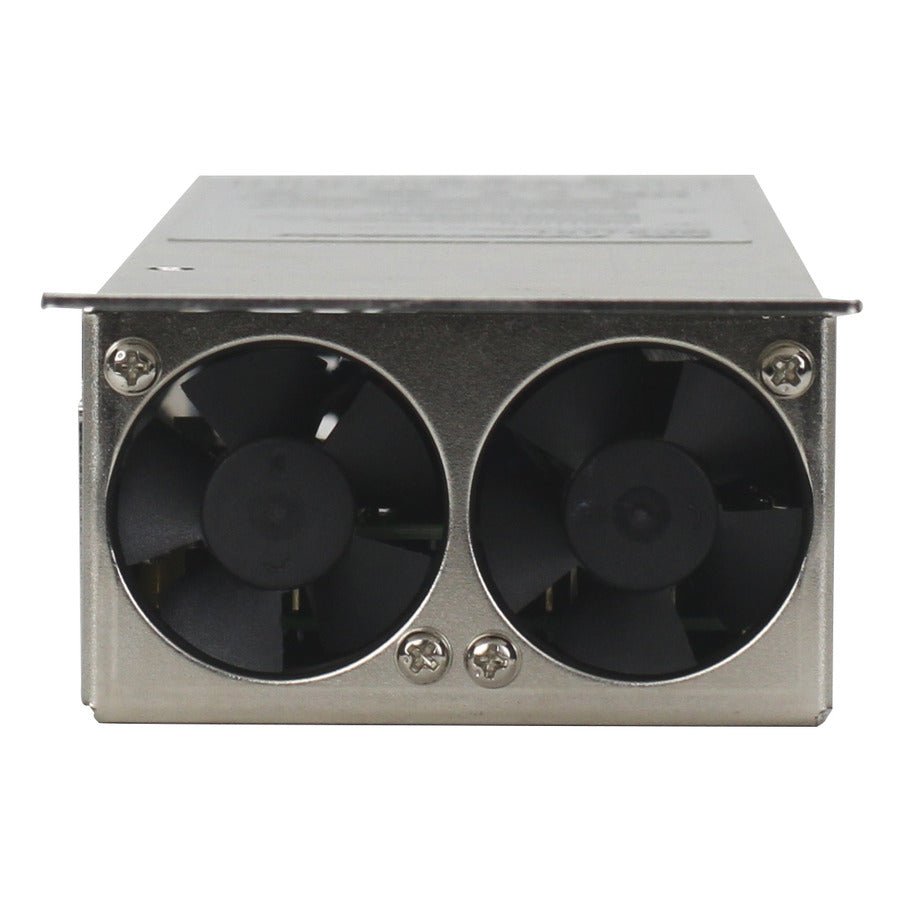

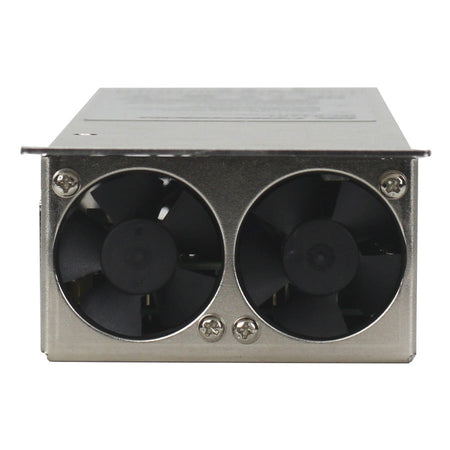

MPS1101 100W Module
Calibration Certificate
Note: Mainframe sold separately (required for operation)
