Rohde & Schwarz RT-ZH11
Rohde & Schwarz RT-ZH11
Rohde & Schwarz
SKU: 39008.1 | MPN: RT-ZH11
New

Rohde & Schwarz RT-ZH11 Passive Probe, 400MHz, 1000X, 7.5 pF, 1 kV, CAT1, CAT2, RT-Zxx Series

-11% £1,080.00 VAT Excl.
£966.00
£966.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Rohde & Schwarz

TestEquity works closely with Rohde & Schwarz to provide engineers, manufacturers, and research organisations with trusted test and measurement solutions for design, validation, production, and service. Our team combines technical knowledge with practical application support to help you choose the right instruments for your requirements, whether you’re working in RF, wireless communications, aerospace, defence, electronics, or education.

Rohde & Schwarz RT-ZH11 1000:1 400 MHz Passive Oscilloscope Probe

Features and Specifications
  • Bandwidth: 400 MHz
  • Attenuation: 1000:1
  • Dynamic range: 1,000 V
  • Continuous voltage: 1000 V (RMS), CAT II
  • DC input resistance, Differential 50 MOhm
  • DC input capacitance, Differential 7.5 pF

The R&S RT-ZH11 is a 400 MHz Passive High-Voltage Probe with an attenuation of 1000:1. The probe can be adjusted for low frequency (LF) compensation and for high frequency (HF) compensation and DC dividing ratio. The probe is designed for RMS voltages up to 1000 V (CAT II) and - when used exclusively for pulse measurements - for peak voltages up to 6000 V (CAT I).

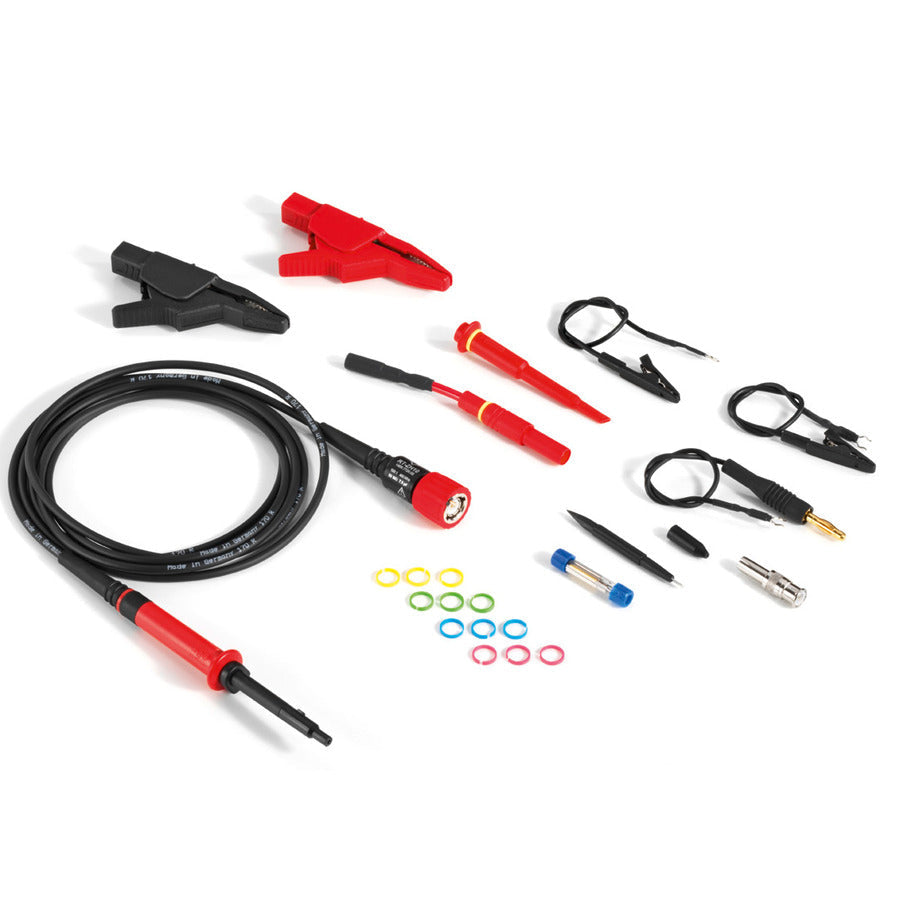

What's in the Box
  • Probe RT-ZH11
  • Operating Manual
  • Adjustment Tool
  • BNC Adapter 5.0-L
  • Insulating Cap 5.0-L (black)
  • Protection Cap 5.0-L (black)(plugged on probe)
  • Coding Rings (set) 3x4 Colors
  • 2x Ground Lead 22 cm
  • Ground Lead 22 cm to 4 mm banana plug
  • Safety Alligator Clip (black)
  • Safety Alligator Clip (red)
  • 5x Solid Tip 0.8 mm
  • 5x Spring Tip 0.8 mm(one is installed in probe)
  • Sprung Hook 5.0-L (red)
  • Flexible Adapter 5.0-L to 4 mm safety banana plug
