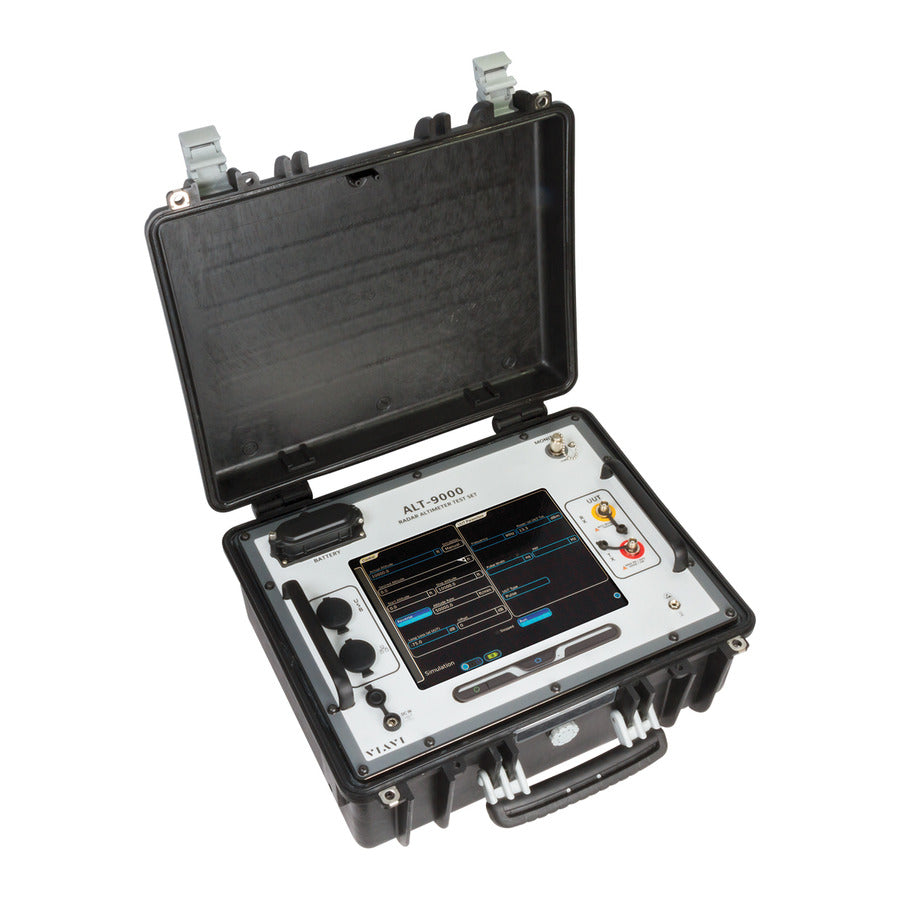

ALT-9000 Radio Altimeter

Introducing ALT-9000 Radio Altimeter Test Set and Altitude Simulator!

Product Features

  • Fiber optic delay line based test set supports all formats of radio altimeters
  • Portable ruggedized enclosure for flight line or benchtop use
  • Battery operated
  • Simulates static altitudes from 0* ft. to 10,000 ft. in 10 ft. steps (*minimum simulated altitude dependent upon AID and test cable length)
  • +20 dB of power level offset from nominal loop loss value
  • Touch-screen operation
  • Direct-connect to UUT T/R or installed system via antenna couplers

Quickly test or troubleshoot all types of radio altimeter test systems.

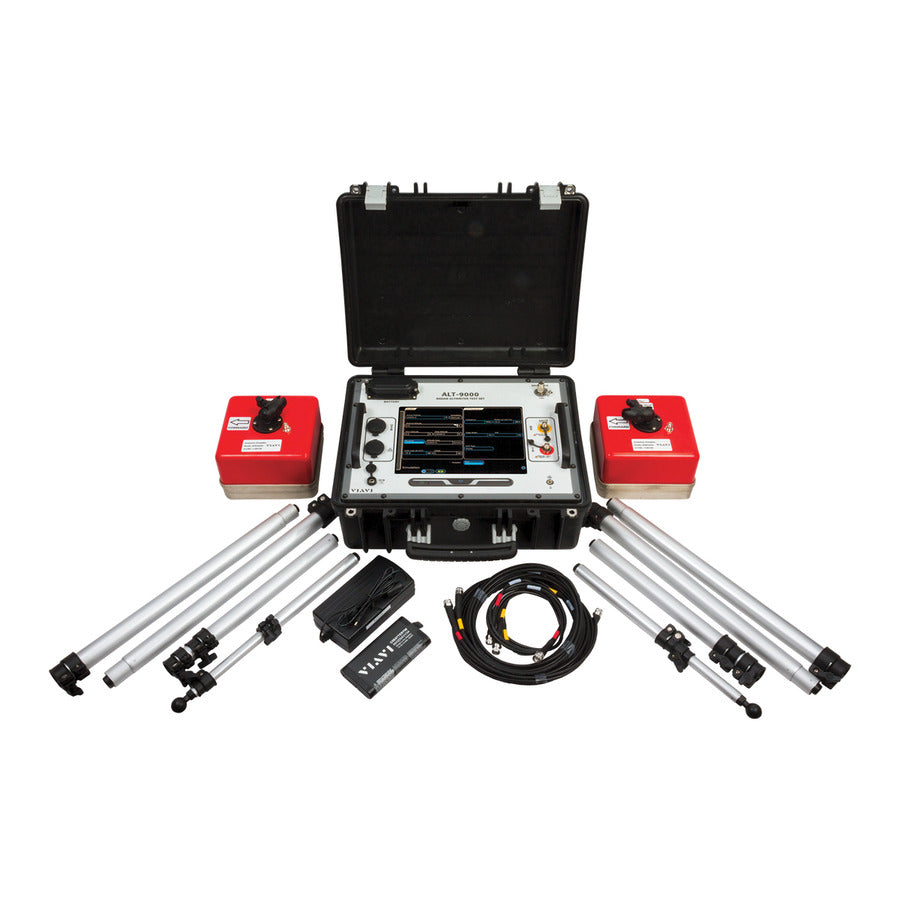

The ALT-9000 comes with everything needed for confirming the installation and performance of:

  • CARA
  • LPI
  • FMCW
  • Pulse
  • Next-Gen Radios

The ALT-9000 makes testing RADALT anomalies fast, and the large touch screen makes setting up and replicating multi-leg scenarios up to 10,000 feet easy. Most importantly, technicians can isolate faulty components with a variety of test applications, including:

  • TX Power
  • TX Frequency
  • FM Deviation
  • Sweep Rate
  • Pulse Width
  • PRF
