Keithley 3700A Series System Switch and Control Cards

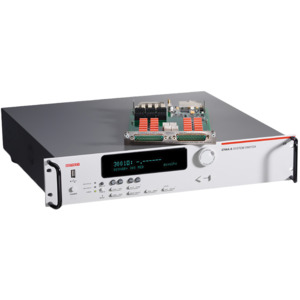

3706A-S: Six slot system switch mainframe WITHOUT DMM
Multi-processor architecture optimized for high throughput scanning and pattern switching applications
Remote PC control via Ethernet, USB, and GPIB interfaces
Up to 576 two-wire or 720 one-wire multiplexer channels in one mainframe
Up to 2,688 one-pole matrix crosspoints in one mainframe
Embedded Test Script Processor (TSP®) offering unparalleled system automation, throughput, and flexibility
TSP-Link® master/slave connection provides easy system expansion and seamless connection to Series 2600 SourceMeter® instruments
Capable of over 14,000 readings per second to memory with optional high performance multimeter
LXI Class B with embedded Web browser interface for test setup, maintenance, and basic application control
The Series 3700A offers scalable, instrument grade switching and multi-channel measurement solutions that are optimized for automated testing of electronic products and components. The Series 3700A includes four versions of the Model 3706A system switch mainframe along with a growing family of plug-in switch and control cards.
The Model 3706A/3706A-NFP systems switch with high performance digital multimeter contains six slots for plug-in cards in a compact 2U high (3.5-inch) enclosure that easily accommodates the needs of medium to high channel count applications. When fully loaded, a mainframe can support up to 576 two-wire multiplexer channels for unrivaled density and economical per channel costs. The high performance multimeter provides a tightly integrated switch and measurement system that meets the demanding application requirements in a functional test system or provides the flexibility needed in stand-alone data acquisition and measurement applications.
Optional Plug-In:
Model |
Description |
Function |
|---|---|---|
3720 |
Dual 1x30 Multiplexer |
60 two-pole channels or 30 four-pole channels (auto CJC for thermocouples with 3720-ST) |
3721 |
Dual 1x20 Multiplexer |
40 two-pole or 20 four-pole channels (auto CJC for thermocouples with 3721-ST) |
3722 |
Dual 1x48 High-Density Multiplexer |
96 two-pole or 48 four-pole channels |
3723 |
Dual 1x30 High-Speed Reed Relay Multiplexer |
60 two-pole or 30 four-pole channels |
3724 |
Dual 1x30 FET Multiplexer |
60 two-pole or 30 four-pole channels (auto CJC for thermocouples with 3724-ST) |
3730 |
6x16 High-Density Matrix |
6 row by 16 column matrix (2-pole) |
3731 |
6x16 High-Speed Reed Relay Matrix |
6 row by 16 column matrix (2-pole) |
3732 |
Quad 4x28 Ultra-High Density Reed Relay Matrix |
4 independent 4x28 matrices (1-pole) |
3740 |
32-Channel Isolated Switch |
28 general purpose Form C, 4 high current Form A |
3750 |
Multifunction Control |
40 digital I/O bits, 2 analog output channels, 4 counters |
3760 |
High Current Switch Card |
10-Channels, 2-pole, 5 A |
3761 |
Low Current Multiplexer Card |
10-channels, single-pole, 16 mA |
3762 |
High Voltage Multiplexer Card |
10-channels, double-pole, 1000 V |
3765 |
3765 Hall Effect Card |
Four rows by five columns, single pole |
In The Box
Test Script Builder Software Suite CD
Ethernet Crossover Cable (CA-180-3A)
Series 3700A Product CD (includes LabVIEW ® , IVI C, and IVI.COM drivers)
