EM TEST
EM TEST

Surge Generator, 1.2/50us-8/20us, 10kV, 5kA, IEC coupling

Our Part #:N|AME|11272

Mfg Part #:VCS 500N10

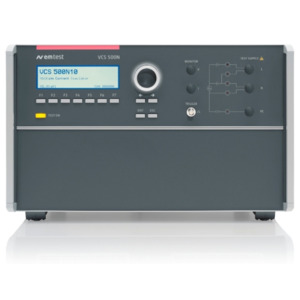

EM TEST VCS 500N10
EM TEST
EM TEST

Surge Generator, 1.2/50us-8/20us, 10kV, 5kA, IEC coupling

Our Part #:N|AME|11272

Mfg Part #:VCS 500N10

Call / each

Ex. VAT

  • Surge pulses up to 10kV/5kA
  • Single phase or three-phase coupler up to 100A (external options)
  • Fail inputs
  • Warning lamp control
  • Emergency interlock
  • Standard test routines
  • USB (optical link) and GPIB interface

Combination Wave Simulator Surge pulses occur due to direct or indirect lightning strokes to an external (outdoor) circuit. This leads to currents or electromagnetic fields causing high voltage or current transients. Another source for surge pulses are switching transients originating from switching disturbances and systems faults. Due to the characteristic of the phenomenon nearly every electrical and electronical device may suffer from such lightning events which justifies the necessity of surge tests being widely performed. Surge voltage can reach several thousands of volts and surge current is seen to reach several thousands of amps.


BrandEM TEST
Alternate Product Number104937
Series500N10 Series
