Mechanical Calibration Kit, 4in1 OSLT DC-9GHz, Type-N(f/f), 50 ohm, 85500A Series

Our Part #:N|KEY|35096

Mfg Part #:85515A

Keysight 85515A
Keysight
Keysight

Mechanical Calibration Kit, 4in1 OSLT DC-9GHz, Type-N(f/f), 50 ohm, 85500A Series

Our Part #:N|KEY|35096

Mfg Part #:85515A

£1,247.00 / each

Ex. VAT

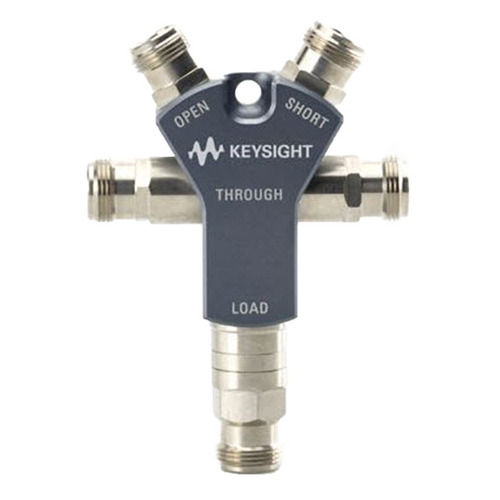

The 85515A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with female-female connectors. During the “thru” part of the calibration, the 85515A through can be used.

Key Features & Specifications
  • Type-N (f), open, short, load, and through
  • DC to 9 GHz
  • Open phase error: 0 to 4 GHz ≤ 2.0 deg, 4 to 9 GHz ≤ 3.0 deg
  • Short phase error: 0 to 9 GHz ≤ 1.25 deg
  • Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz, ≥ 35 dB
  • Through, female-female, insertion loss: 0 to 4 GHz ≤ 0.05 dB, 4 to 9 GHz ≤ 0.1 dB
  • Dimensions: H x W x D approx 104 x 74 x 22 mm

BrandKeysight
Alternate Product Number19608.1
Connector TypeType-N(f/f)
FrequencyDC to 9GHz
No. of Ports4 to 1
TypeMechanical OSLT
Series85500A Series
ConditionNew
Impedance50 Ohm
£1,247.00 / each
