Mechanical Calibration Kit, 4-in-1 OSLT, DC to 18 GHz, Type-N Male to Male, 50 ohm, 85500A Series

Our Part #:N|KEY|35104

Mfr Part #:85518A

Keysight 85518A
Keysight
Keysight

Mechanical Calibration Kit, 4-in-1 OSLT, DC to 18 GHz, Type-N Male to Male, 50 ohm, 85500A Series

Our Part #:N|KEY|35104

Mfr Part #:85518A

£2,594.00

Ex. VAT

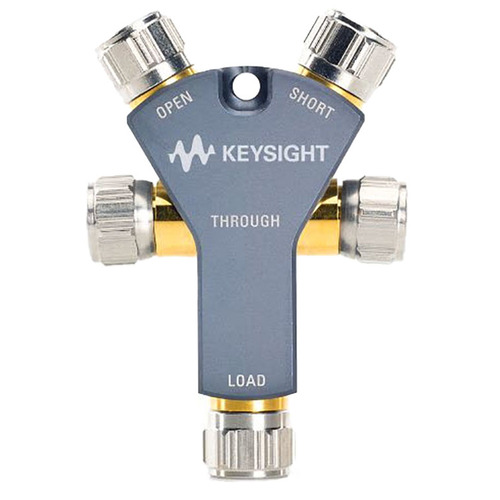

The 85518A 4-in-1 mechanical calibration module combines an open, short, load, and through in a compact unit. The product is small, easy to handle, and light weight. The through allows users to easily calibrate non-insertable devices, such as a cable or filter with male-male connectors. During the "thru" part of the calibration, the 85518A through can be used.

Key Features & Specifications
  • Type-N (m), 50 ohm, open, short, load, and through
  • DC to 18 GHz
  • Open phase error: 0 to 6 GHz ≤ 2.0 deg, 6 to 9 GHz ≤ 3.0 deg, 9 to 18 GHz ≤ 4.0 deg
  • Short phase error: 0 to 6 GHz ≤ 1.5 deg, 6 to 9 GHz ≤ 2.5 deg,9 to 18 GHz ≤ 3.0 deg
  • Load return loss: 0 to 6 GHz ≥ 42 dB, 6 to 9 GHz, ≥ 35 dB, 9 to 18 GHz, ≥ 32 dB
  • Dimensions: H x W x D approx 106 x 72 x 22 mm

BrandKeysight
Alternate Product Number19868.2
Connector TypeType-N(m/m)
FrequencyDC to 18GHz
No. of Ports4 to 1
TypeMechanical OSLT
Series85500A Series
ConditionNew
Impedance50 Ohm
£2,594.00

Ex. VAT
