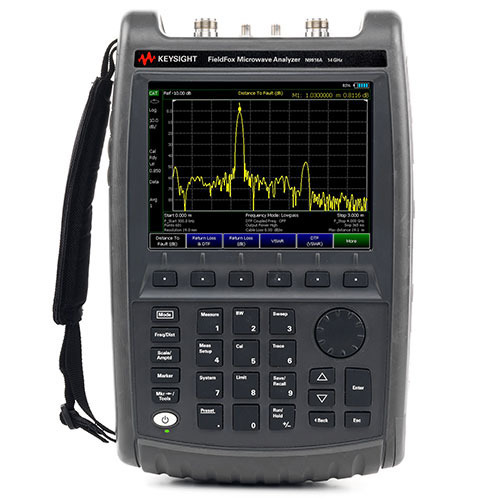

FieldFox RF Combination Analyser

Our Part #:N|KEY|51832

Mfr Part #:N9916A

Keysight N9916A
Keysight
Keysight

FieldFox RF Combination Analyser

Our Part #:N|KEY|51832

Mfr Part #:N9916A

£15,671.00

Ex. VAT

Cable and Antenna Analyzer (CAT), Vector Network Analyzer (VNA, optional)

  • 30 kHz to 14 GHz
  • Dynamic range: 100 dB
  • CAT: Distance-to-fault, return loss, cable loss
  • VNA (optional): S11, S21, S22, S12, magnitude and phase

Spectrum analyzer (optional)

  • 5 kHz to 14 GHz
  • ± 0.5 dB amplitude accuracy, full band, over full temperature range of -10 to +55 C(14 to 131 F)
  • Spur-free dynamic range: ≥ 105 dB
  • Full-band tracking generator

FieldFox 30-second video introducing real time spectrum analysis (RTSA)

Designed to Withstand Your Toughest Working Conditions
The N9916A FieldFox 14 GHz RF Combination Analyzer's base function is a cable and antenna analyzer and it can be configured to include a spectrum and network analyzer. FieldFox can be ordered with additional capabilities: power meter, independent signal generator, vector voltmeter, interference analyzer, variable DC source, and built-in GPS receiver.

Independent source, vector voltmeter (VVM), power sensor and built-in measurements

  • RF source: 30 kHz to 14 GHz, CW, CW coupled, and tracking
  • VVM: 30 kHz to 14 GHz, compare phase and electrical length
  • Power measurements with USB sensor: 9 kHz to 24 GHz (sensor dependent)
  • Built-in power meter: 100 kHz to 14 GHz
  • Three-year warranty

Includes: AC/DC Adapter, 1 battery, soft carrying case, LAN cable, quick reference guide, and user's guide.


BrandKeysight
Alternate Product Number20445.8
Frequency14 GHz
ConditionNew
