Keithley
Keithley

Dual Channel SourceMeter, 3 A DC, 10 A Pulse

Our Part #:N|TEK|13130

Mfr Part #:2602B

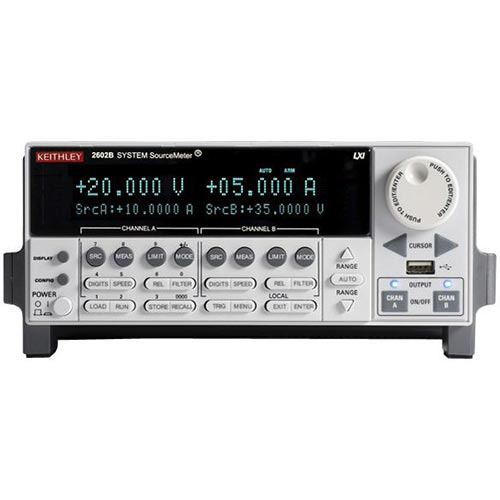

Keithley 2602B
Keithley
Keithley

Dual Channel SourceMeter, 3 A DC, 10 A Pulse

Our Part #:N|TEK|13130

Mfr Part #:2602B

£11,000.00

Ex. VAT

  • Dual Channel
  • Max Current Source/Measure Range: 10A (3 A DC, 10 A Pulse)
  • Max Voltage Source/Measure Range: 40V
  • Measurement Resolution: 100fA / 100nV
  • Tightly integrated, 4-quadrant voltage/current source and measure instruments offer best in class performance with 6-1/2-digit resolution
  • Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world
  • Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device
  • TSP (Test Script Processing) technology embeds complete test programs inside the instrument for best-in-class system-level throughput
  • TSP-Link expansion technology for multi-channel parallel test without a mainframe
  • Software emulation for Keithley 2400 SourceMeter SMU Instrument
  • USB 2.0, LXI-C, GPIB, RS-232, and digital I/O interfaces

Keithley Series 2600B System SourceMeter SMU Instruments are the industry's leading current/voltage source and measure solutions, and are built from Keithley's third generation SMU technology. The Series 2600B offers single- and dual-channel models that combine the capabilities of a precision power supply, true current source, 6-1/2-digit DMM, arbitrary waveform generator, pulse generator, and electronic load – all into one tightly integrated instrument. The result is a powerful solution that significantly boosts productivity in applications ranging from bench-top I-V characterization through highly automated production test.

Built-in web browser based software enables I-V testing through any computer from anywhere in the world. Or, use your Android smart device to perform plug & play I-V testing with fingertip control with the Keithley IVy application. For automated system applications, the Series 2600B's Test Script Processor (TSP®) runs complete test programs from inside the instrument for industry-best throughput. In larger, multi-channel applications, Keithley's TSP-Link® Technology works together with TSP Technology to enable high-speed, SMU-per-pin parallel testing. Because Series 2600B SourceMeter SMU Instruments have fully isolated channels that do not require a mainframe, they can be easily reconfigured and re-deployed as your test applications evolve.

**Benchtop versions do not include TSP-Link, Contact Check, or Digital I/O capabilities.


BrandKeithley
Alternate Product Number20865.1
Voltage40
Watts40
ConditionNew
Amps3
£11,000.00

Ex. VAT
