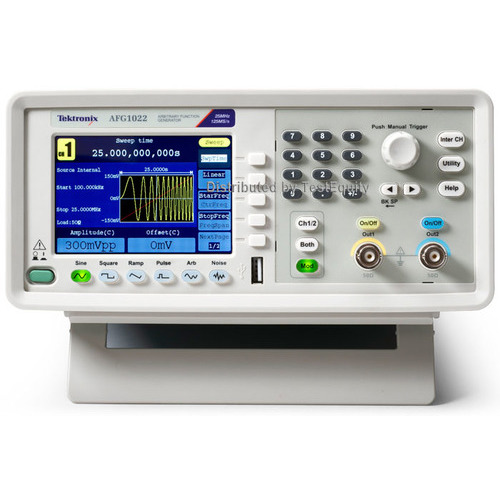

AFG1022 Arbitrary/Function Generator, 2 Channels
- 25 MHz, Two-channels
- 12-digits frequency resolution; 2-8 kpts / 14-bit vertical resolution
- 3.95" color TFT
- Built-in noise generator
- Built-in 200 MHz, 6 digits/sec frequency/counter
- 50 built-in standard function and arbitrary waveforms
- Free ArbExpress makes user defined waveforms editing extremely easy
- Compatible with TekSmartLab for easy teaching and learning
- 2U half rack size
- AM/FM/PM/FSK modulation modes (on channel 1)
- Sweep and burst/gated modes (on channel 1)
- 125 MS/s sample rate
- 64 MB built-in non-volatile memory and USB memory expansion for user-defined waveforms
- Five-year warranty
Versatile features, functionality and best-in-class performance
Tektronix AFG1022 Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes dual channel, 25 MHz bandwidth and up-to 10 Vp-p output amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.
Four different run modes and four modulation modes cover most use cases with a cost effective solution. 50 most-frequently used standard and arbitrary waveforms are built-in for easy access. Up to 8,192 points arbitrary waveforms memory enables users to replicate real world signals captured with a Tektronix oscilloscope or defined with ArbExpress. The built-in 200 MHz and 6 digit resolution frequency counter is an easy and precise way to measure frequencies/periods/pulse widths/duty cycles.
Ease of use
The high-resolution 3.95-inch color TFT display shows relevant settings and parameters in both text and graphic formats, giving you full-confidence in your settings — letting you focus on the task at hand. The front panel shortcut buttons and rotary knob make accesses to most frequently used functions and settings with minimum effort and time. The built-in 64-MByte non-volatile memory together with USB stick memory interface, provide unlimited space for user-defined waveform storage. And, its intuitive user-interface makes for a short learning curve
Doesn't compromise between output amplitude and frequency
Four different run modes and four modulation modes provide you with cost-effective solutions. 50 most-frequently used standard and arbitrary waveforms are built-in for easy access. Up to 8,192 points arbitrary waveforms memory enables users to replicate real world signals captured with a Tektronix oscilloscope or defined with ArbExpress. The built-in 200 MHz and 6-digit resolution frequency counter is an easy and precise way to measure frequencies/periods/pulse widths/duty cycles.
The AFG1022 typical applications include: electric and electronics experiments, sensor simulation, functional testing and communications experiments.
Includes: printed Safety and Compliance instructions, Quick Start, Programmer Manual and Specifications and Performance Verification Manual on CD, Power cord, printed Certificate of calibration, Type A to B USB cable, two (2) BNC cables and two (2) fuses (0.5 A, 1.0 A).
