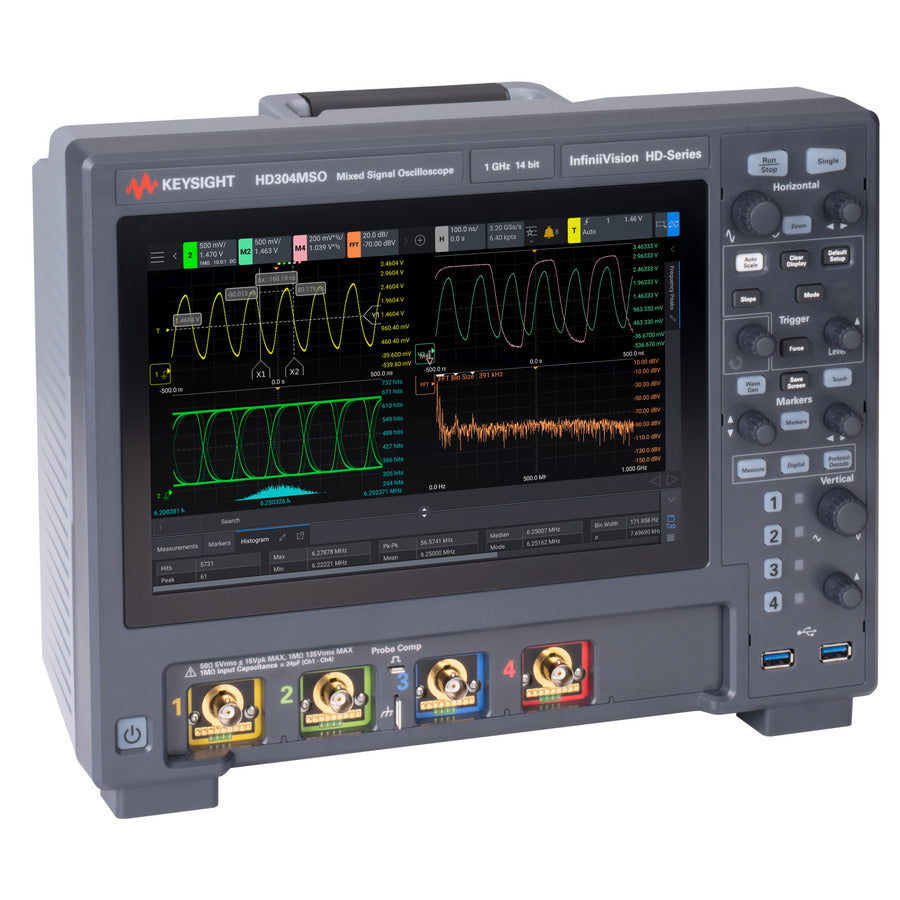

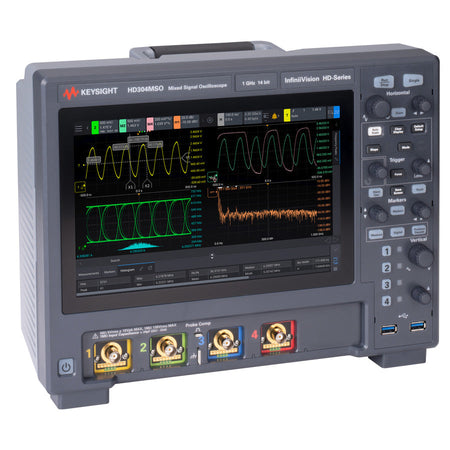

Keysight HD304MSO InfiniiVision Mixed Signal Oscilloscope, 4+16 CH, 200 MHZ, 20Mpts, HD3 Series

300 HD Series - Upgradable Base Model

• STEP 1: Add 200 MHz Base Model to Cart
• STEP 2: Want a Bandwidth upgrade, choose one in Accessories and Add to Cart

Questions or need a quote please contact sales.

HD304MSO Specs:

• 200 MHz Bandwidth
• 4 Analog Channels
• 16 Digital Channels (Optional)
• Maximum sample rate: 3.2 GSa/s all channels
• Memory: 20 Mpts
• 14 bit ADC: 4x the vertical resolution of any oscilloscope in this class
• Waveform Update Rate: Uncompromised >1,000,000 wfms/s
• Noise Floor: 55 µVRMS
• Vertical Resolution: 14 bits (measurement resolution is 16 bits at lower bandwidths)

Or, Pick An Upgrade::

BUY NOW with installation

or BUY LATER

All bandwidth upgrades can be performed in the field by purchasing and installing a license.

4x The Resolution, Half The Noise

The InfiniiVision HD3 Series oscilloscopes offer high-end technology in a small form factor. With an intuitive touch user-interface, industry-leading waveform update rate, and zone trigger, you can capture elusive glitches and anomalies not possible on other oscilloscopes.

Highlights

• Increase vertical resolution by four times with a
  14-bit analog-to-digital converter (ADC)
• See smaller signals with a 50 µVRMS noise floor
• Find signal glitches with a fast 1.3 M waveform / second update rate
• Capture longer time spans at full sample rate
  with 100 Mpts of deep memory
• Display up to four independent signals and control the scaling individually
• Isolate signals in seconds with zone triggering -
  simply draw a box on the screen
• Characterize signals, hunt for errors, and save automatically
  with Keysight Fault Hunter
• Perform advanced analysis with fast Fourier transforms,
  histograms, and Bode plots

All models are equipped with these standard functions:

• Frequency response analysis (Bode plots)
• Fault Hunter Software
• Powerful triggering and decoding serial buses including
  I2C, SPI, UART/RS232/RS485
• Segmented memory
• MSO (HD3MSO logic probe sold separately)
• High-performance mask and measurement limit testing enabled in hardware
• Built-in function/arbitrary waveform generator
• Waveform and measurement histograms
• FFT, and more

See What You've Been Missing

Utilizing advanced hardware from the UXR Series, the HD3 offers exceptional resolution with quadruple the vertical accuracy, a 14-bit ADC, and reduced noise. This enhances precision in a more compact form, ensuring highly accurate measurements and a clear view of your device's signals.

Additionally, the new architecture features deep memory with dedicated chips for each channel (100 Mpts), eliminating interleaving. You can activate all four channels and still achieve maximum memory and sample rate. The custom MegaZoom 5 ASIC provides hardware-based functions like zone trigger, serial decoding, and mask testing.

Capture Smaller Signals With A 50 µVRMS Noise Floor

All electronic devices, including oscilloscopes, produce some noise. The aim is to reduce this noise as much as possible. A lower noise floor means the oscilloscope has less influence on the signal, leading to more precise measurements.

Keysight's HD3 establishes a new standard in noise floor performance with a 50 µVRMS noise floor at 1 GHz bandwidth. You can further decrease the noise using bandwidth limiting and waveform averaging options on the HD3.

Fault Hunter Software

Fault Hunter is a cutting-edge system designed for inspecting digital systems. It automatically assesses your signal's characteristics based on user-defined criteria, swiftly identifying and saving errors for you to review. It's highly adaptable, allowing you to set the test duration from a few minutes to two days. You can set up your device for testing on a Friday afternoon and return on Monday morning to a comprehensive test report, with billions of tests completed.

Automate complex measurements with advanced software capabilities:

• Convert time-domain signals into frequency-domain signals
  using a fast Fourier transform (FFT)
• Compare signals to pre-defined templates for
  quick pass / fail analysis with mask testing
• Analyze the statistical distribution of jitter and noise
  with waveform and measurement histograms
• Perform frequency response analysis with Bode plots
• Isolate signals in seconds with zone touch triggering
• Characterize signals, hunt for errors, and save them
  automatically with Fault Hunter

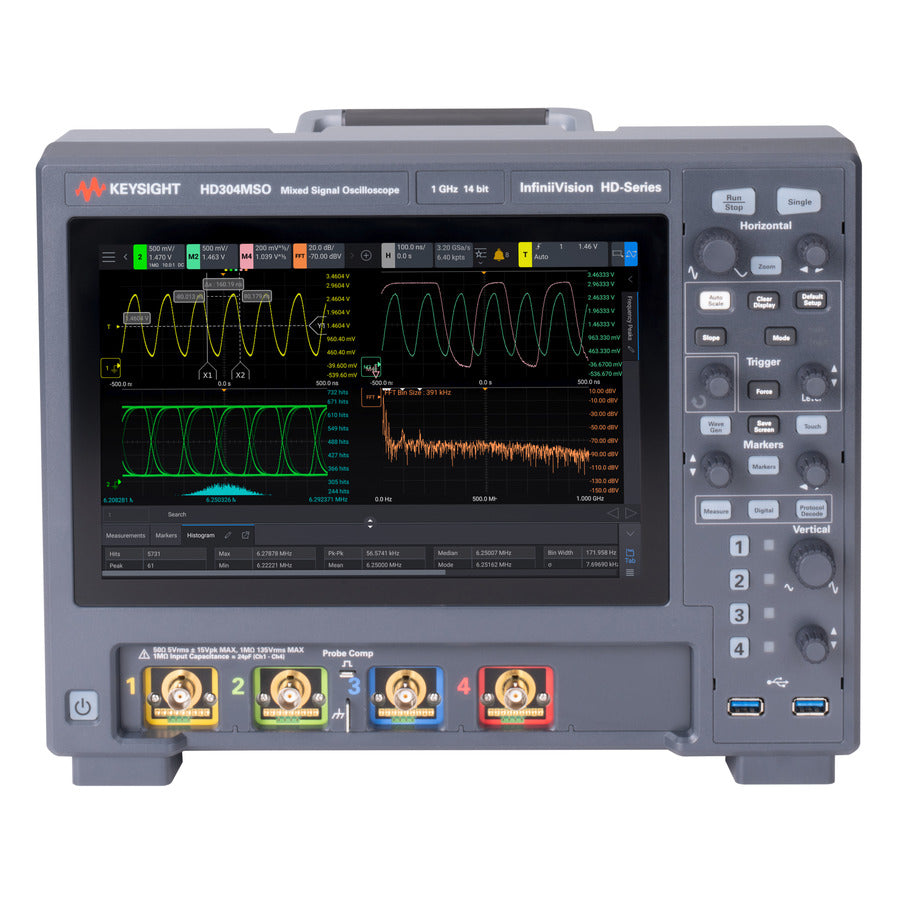

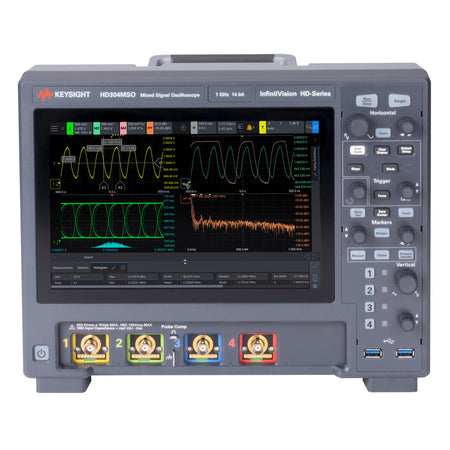

Front Panel Features

1. Power switch
2. Analog channel
3. Probe comp and ground
4. USB host
5. Analog channel selection
6. Vertical knobs
7. Y and X marker knobs
8. Left to right: Entry knob, Wave Gen,
   save screen on/off, touch screen on/off
9. Trigger buttons and knob
10. Horizontal knobs
11. 10.1-inch capacitive touch gesture-enabled display

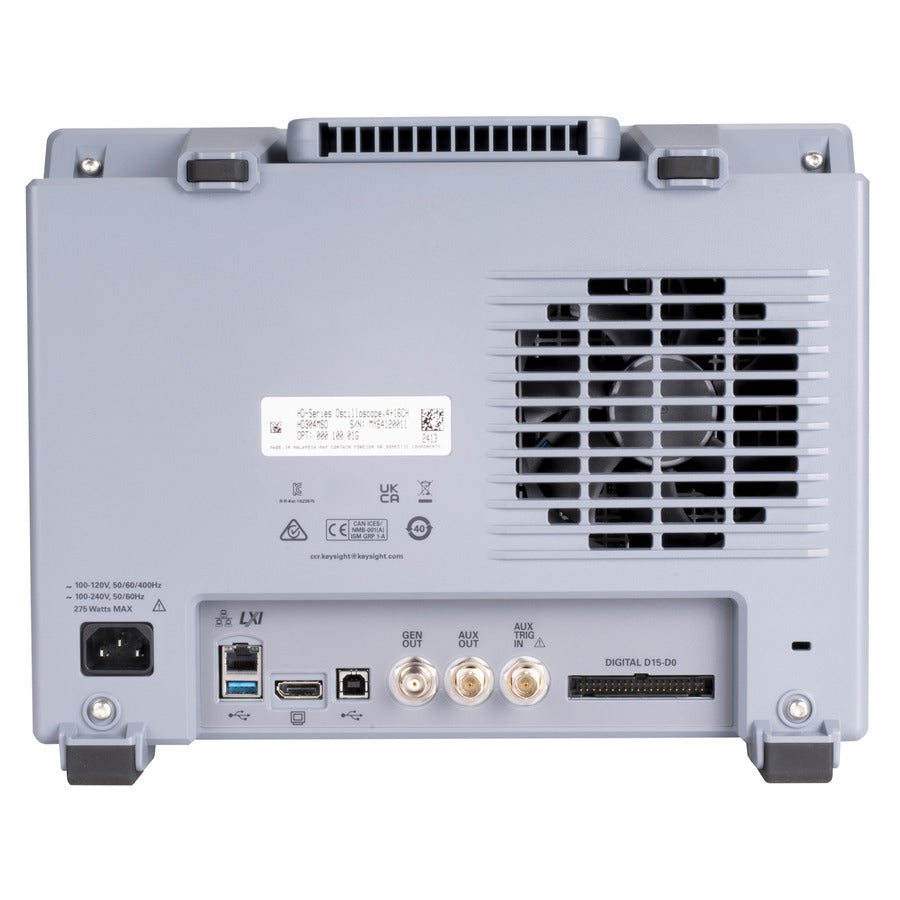

Rear Panel Features

1. Power cord connector
2. USB host port
3. LAN port
4. USB device port
5. GEN out
6. AUX out
7. AUX TRIG In connector
8. Digital channel inputs
9. Kensington lock hole

What's in the Box

• Soft copy of Certificate of Calibration
• Standard secure erase
• N2843A Passive probe 500 MHz 10:1 attenuation (1 per channel)
• HD3MSO 16 digital channel MSO cable
• CD containing localized user’s guide
• Service guide, and programmer’s manual
