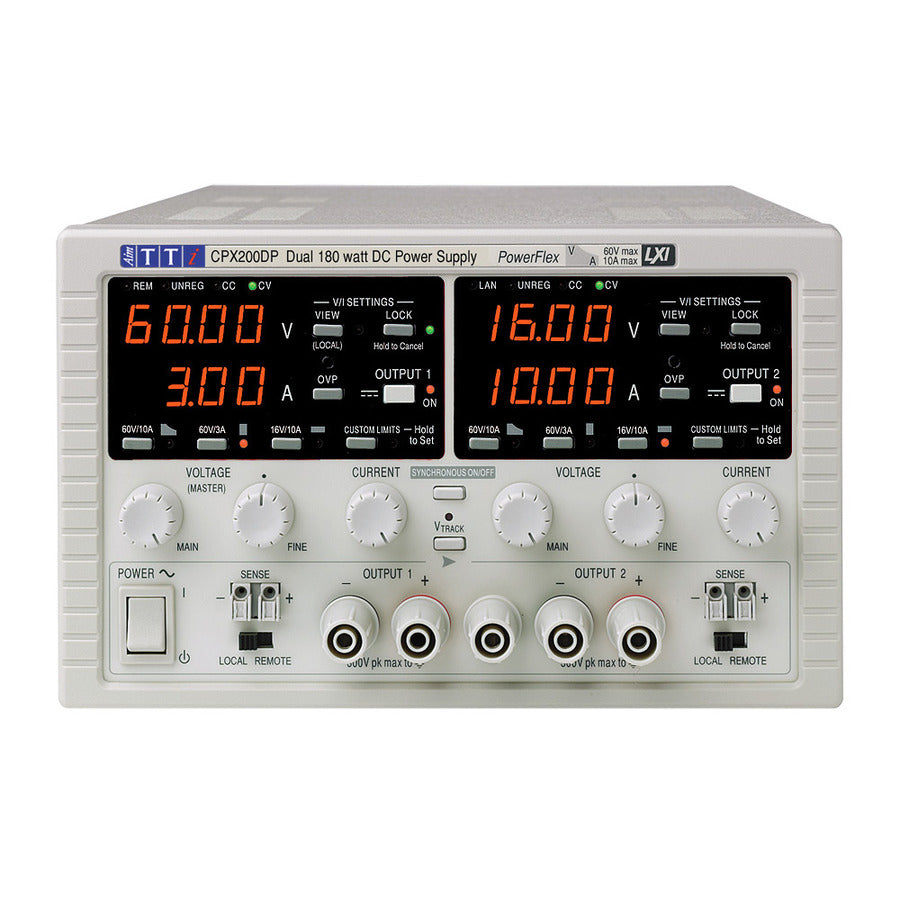

Aim-TTi CPX200DP DC Power Supply, Dual Output, 2 x 60V/10A, 180W, USB, RS232, LAN, CPX Series

-16% £1,377.00 VAT Excl.
£1,157.00
£1,157.00
Only 1 left
Low Stock - Order Today

Ask an expert!

Email +44 (0)1492 643 060

Aim TTi

Aim-TTi is a leading UK manufacturer of electronic test and measurement equipment, specialising in precision instruments for laboratories, research facilities and industrial applications. Its portfolio includes programmable power supplies, electronic loads, source measure units, function generators, arbitrary waveform generators, pulse generators, multimeters and RF test equipment. Engineers worldwide rely on Aim-TTi solutions for product development, validation, troubleshooting and production testing.

CPX200DP - A new variant of the CPX series:

Replacing the CPX200, the CPX200D's wider PowerFlex range extends maximum voltage from 35 volts to 60 volts, while the maximum current of 10 amps is now available up to 16 volts rather than 12 volts. Existing CPX200 owners will appreciate the NEW features of S-Lock, Range Control, Voltage Tracking and Synchronous On/Off.

Features:

  • PowerFlex design gives variable voltage and current combinations within a maximum power envelope
  • Up to 60V and up to 10A per output (180W maximum)
  • Constant voltage or constant current operation
  • Low output noise and good transient response
  • PowerFlex or fixed-range operation plus custom limits
  • True analogue controls with digital settings locking
  • Independent outputs or isolated voltage tracking
  • Outputs can be wired in series or parallel for 120V or 20A
  • Variable OVP trips; safety binding-post terminals
  • 4 digit fixed resolution meters; selectable remote sensing
  • Compact ½ rack 3U case for bench use or rack mounting
  • Duplicate terminals at rear on CPX200DP

Bench and System use:
The CPX200DP is a bus programmable version and includes all of the manual control features plus a full set of comprehensive digital interfaces. Remote control via RS-232, USB and LAN interfaces with LXI compliance (CPX200DP only).
