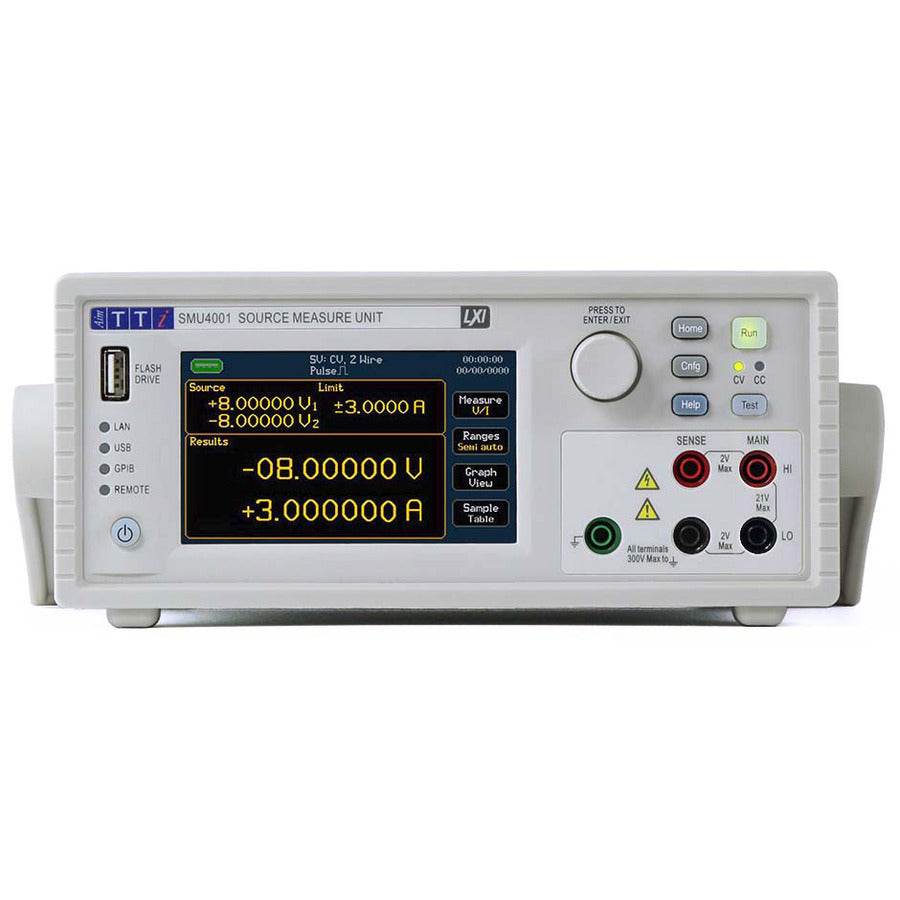

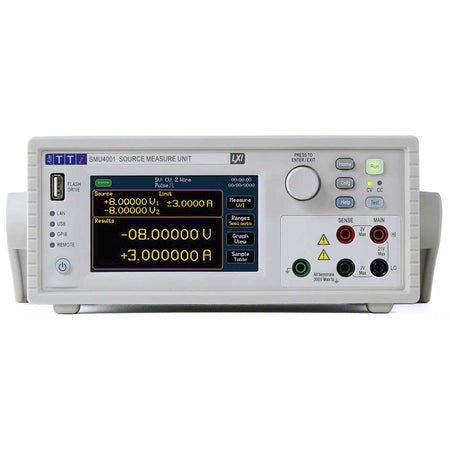

Aim-TTi SMU4001 Source Meter, SMU Instrument, 20V, 3A, 25W, SMU4000 Series

-16% £3,818.00 VAT Excl.
£3,208.00
£3,208.00
In Stock
Same Day Dispatch

Ask an expert!

Email +44 (0)1492 643 060

Aim TTi

Aim-TTi is a leading UK manufacturer of electronic test and measurement equipment, specialising in precision instruments for laboratories, research facilities and industrial applications. Its portfolio includes programmable power supplies, electronic loads, source measure units, function generators, arbitrary waveform generators, pulse generators, multimeters and RF test equipment. Engineers worldwide rely on Aim-TTi solutions for product development, validation, troubleshooting and production testing.

SMU4001 Four Quadrant Source Measure Unit - 20V

Features:

  • Current: 3A
  • Power: 25W
  • Maximum voltage: ± 21V
  • Voltage range: 20mV to 20V
  • 0.015% basic accuracy with 6.5 digit resolution
  • 0.1µV and 100fA resolution
  • Sense terminals for 4 wire operation and guard capabilities
  • Powerflex technology achieves full instrument output power across the majority of the voltage range
  • Internal memory, up to 100k measurements and 100k steps
  • Fast measurement speeds up to 200µs (5k/s)
  • 8 EasySet pre-sets included: Power Supply, Current Source, Load, Voltmeter, Ammeter, Ohmmeter, Insulation resistance meter and Leakage current meter
  • Advanced features are:
    • Advanced sweep engine
    • Advanced math features for data handling
    • Tolerance band result sorting
    • Advanced load modes [LC, LR & LP] with integral volatage dropout setting

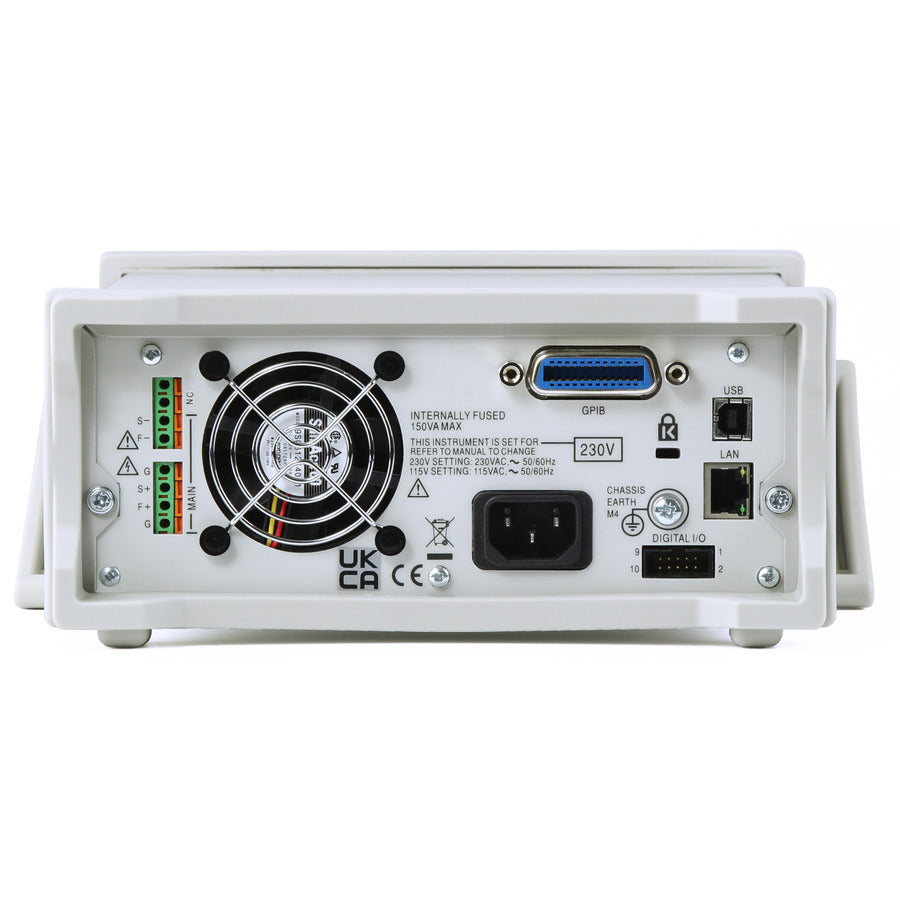

  • Interfaces: LAN, LXI Conformance, USB and GPIB (optional)
  • Optional SMU Link allows two SMUs to be linked together for synchronous operation

The SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. Combining touch-screen technology with an intuitive graphical user interface provides a clear and natural flow through the test and measurement process.

It integrates a fast and agile, four quadrant Voltage/Current source and meter in a compact half rack 2U casing, capable of precisely supplying positive and negative voltages, sourcing or sinking power, while simultaneously measuring both current and voltage for I-V characterising. With fast measurements and low glitch auto-ranging speed, this SMU is the ideal solution for industrial development as well as educational environments.
