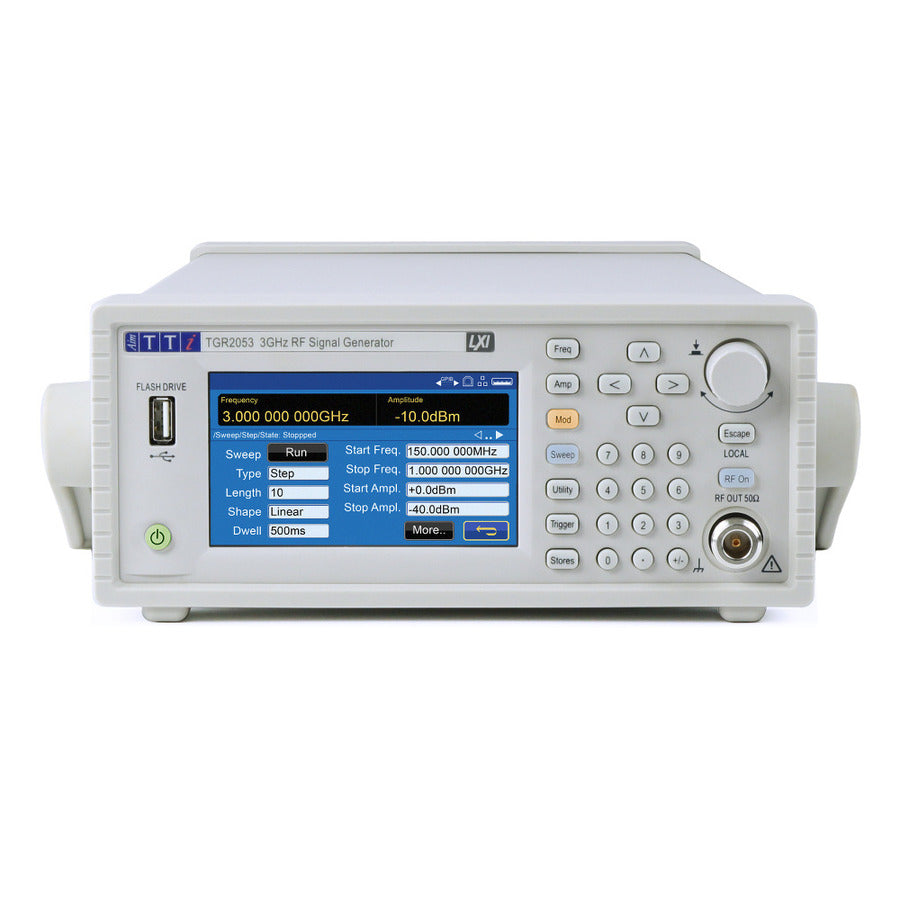

Aim-TTi TGR2053 RF Signal Generator, 3 GHz, TGR205x Series

-16% £4,188.00 VAT Excl.
£3,519.00
£3,519.00
Only 1 left
Low Stock - Order Today

Ask an expert!

Email +44 (0)1492 643 060

Aim TTi

Aim-TTi is a leading UK manufacturer of electronic test and measurement equipment, specialising in precision instruments for laboratories, research facilities and industrial applications. Its portfolio includes programmable power supplies, electronic loads, source measure units, function generators, arbitrary waveform generators, pulse generators, multimeters and RF test equipment. Engineers worldwide rely on Aim-TTi solutions for product development, validation, troubleshooting and production testing.

TGR2053 RF Signal Generator

Specifications:

  • Frequency Range: 150kHz to 3GHz
  • Frequency Setting Resolution: 10Hz up to 3GHz

TGR205x Series: The next generation of RF signal generators from Aim-TTi offers both exceptional performance and new improved functionality with touch screen operation. Ideal for development, test and service work, the TGR2053 high-performance RF generator provides high-frequency accuracy and stability, large signal amplitude range, low phase noise and flexible modulation capabilities.

Series HIghlights:

  • Frequency setting resolution of 10Hz at up to 3GHz
  • Amplitude range of -127dBm to +13dBm
  • 0.1dBm amplitude setting resolution. Amplitude can be set in dBm, dBμV or in linear Volts.
  • High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
  • 1ppm frequency accuracy, <1ppm drift in first year
  • 5ms sweep settling time
  • User selectable low spur mode setting
  • Internal or external analog modulations (AM, FM, PM)
  • Modulation Synchronization
  • Internal DDS baseband generator provided as logic LF output

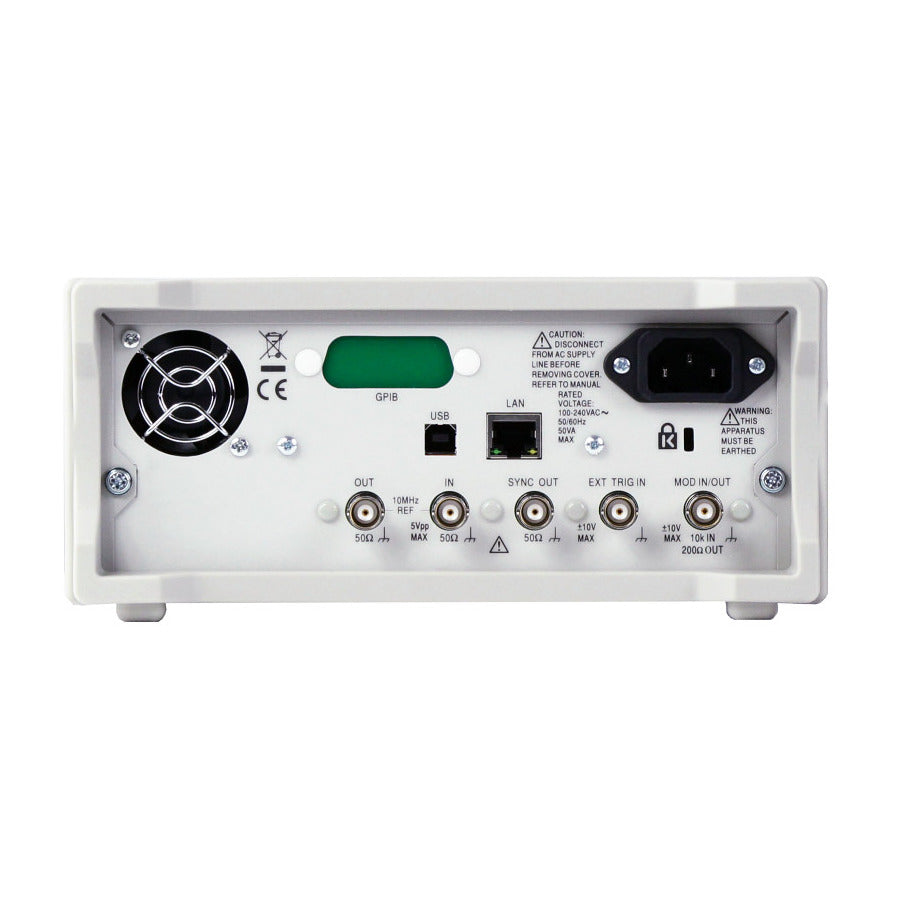

  • Modulation waveform output on the rear panel
  • Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern
  • Fast amplitude and/or frequency sweeps with comprehensive triggering
  • Simple and easy to operate with the color and touch display
  • Compatible with previous Aim-TTi RF generators
  • SCPI compatible
  • Programmable via USB, LAN (LXI) and GPIB (optional)
  • Small case design (2U ½ rack), lightweight (3kg)

Increased Compatibility: Upgrading existing test and measurement systems is simple with the new TGR2053. It can seamlessly replace legacy Aim-TTi RF generators, TGR2050 and TGR1040, in an existing system using the legacy remote command sets.
