B&K Precision Battery Capacity Analyzer Overview:
The 600B and 601B Battery Capacity Analyzers address the need to test and maintain sealed lead acid (SLA) batteries used in backup power UPS, emergency lighting, fire alarms, security systems, and many other electrical systems. By quickly characterizing a battery's response to a load resistance and measuring the battery's internal resistance, these meters display the remaining battery capacity as an indicator of the battery's health. Additionally, the 601B is powered by the battery under test, and supports testing of both 6 V and 12 V storage type lead acid batteries.

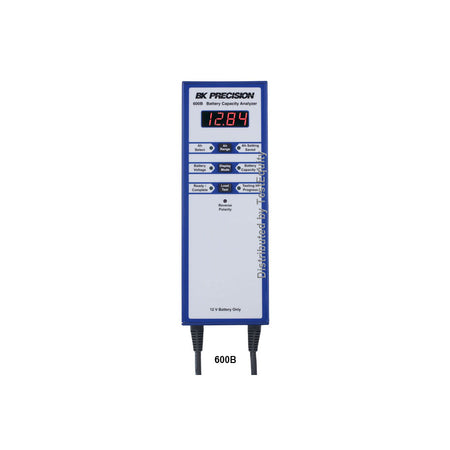

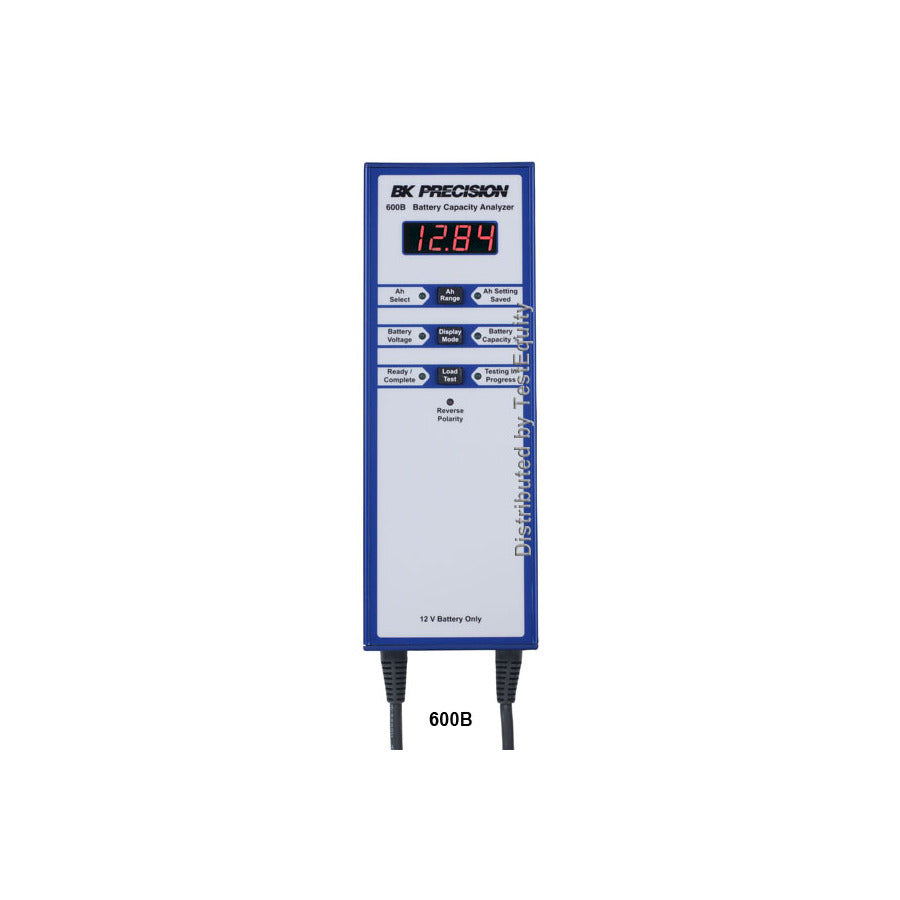

600B & 601B Handheld SLA Battery Capacity Analyzers
| 600B | 601B | |
|---|---|---|
| Supported SLA battery voltages | 12 V | 6 V & 12 V |
| Ah range | 7, 12, 24, 42, 65, & 100 | 5 - 100 in 1 Ah steps |
| Internal resistance | N | Y |
| Load voltage | N | Y |
| No load (open circuit) voltage accuracy | ±2 counts | ±(0.2% + 1 count) |
