Home » B&K Precision Products » B&K Precision 9172B DC Power Supply, Single Output, Dual Range, 35V/3A, 70V/1.5A, 9170B Series
B&K Precision 9172B
B&K Precision 9172B
B&K Precision 9172B
B&K Precision 9172B
B&K Precision
SKU: 28717.1 | MPN: 9172B
New

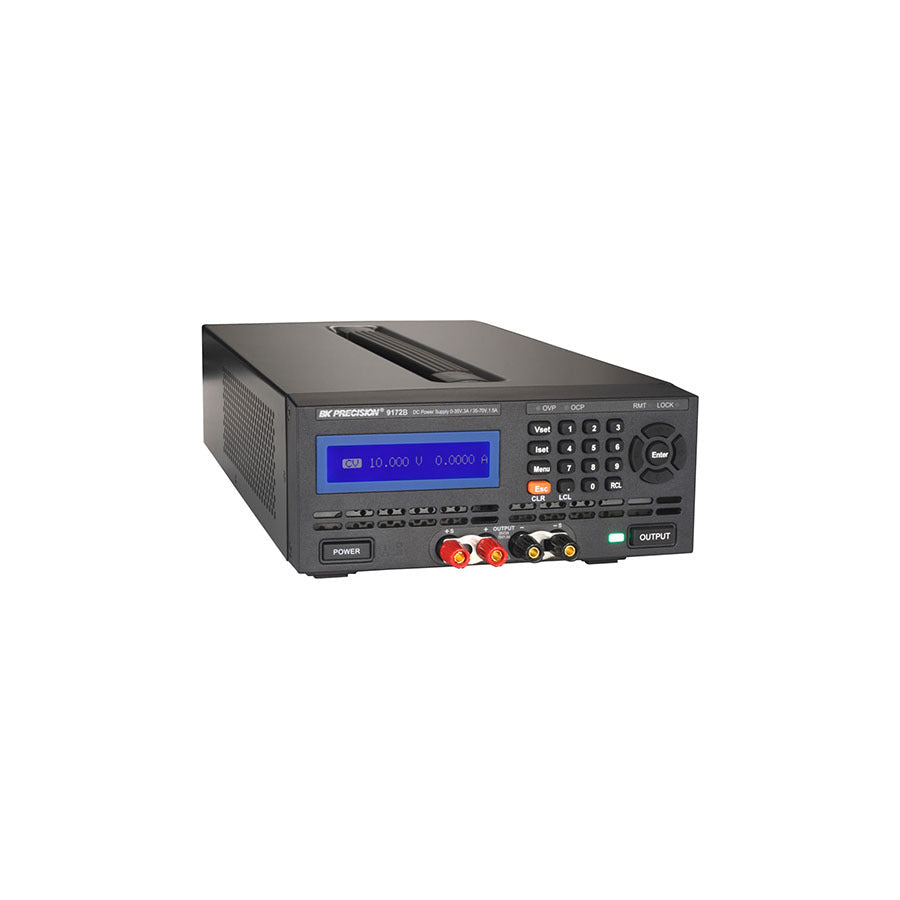

B&K Precision 9172B DC Power Supply, Single Output, Dual Range, 35V/3A, 70V/1.5A, 9170B Series

£951.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

B&K Precision

B&K Precision is a leading manufacturer of reliable and cost-effective test and measurement equipment for engineers, technicians and research professionals. Its portfolio includes DC power supplies, electronic loads, spectrum analysers, signal generators, oscilloscopes, multimeters, battery testers and component analysers. Trusted across the electronics, automotive, education and industrial sectors, B&K Precision instruments are designed to support product development, manufacturing, troubleshooting and quality assurance applications.

  • Single and dual output models with 35V, 70V output power
  • Current 3A, 1.5A
  • Output: 1
  • Exceptionally low ripple and noise

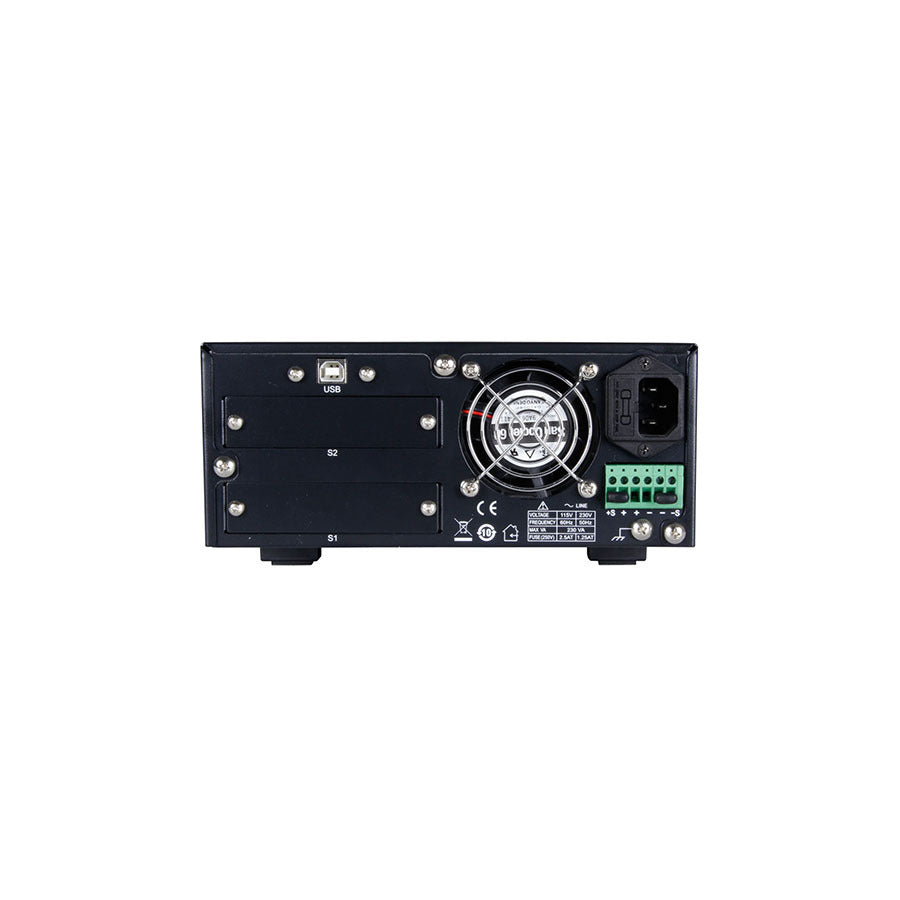

  • Front and rear panel output
  • List mode for executing up to 10 stored test sequences with a maximum of 150 steps in total
  • Overvoltage/overcurrent/overtemperature protection (OVP/OCP/OTP) and key-lock function
  • Fast transient response time of < 50 us for most models
  • Fast command processing time < 10 ms
  • Programmable voltage and current slew rates
  • Standard USB interface
  • 4 optional types of modular interface cards add LAN and GPIB, Digital I/O and Analog Control, RS485, or RS232 functionality
  • LabVIEW (TM) drivers available

The 9170B/9180B series programmable DC power supplies deliver clean, stable and precise output power due to the supplies’ exceptionally low ripple and noise, low temperature coefficient, excellent regulation and fast transient response time characteristics.

These power supplies offer SCPI IEEE488.2 compliant USB (standard), RS232, RS485, GPIB and LAN interfaces, combined with front and rear panel output and remote sense terminals to facilitate test system development and integration. The LAN interface includes a built-in web server that allows users to configure, control, or monitor basic power supply settings.

In addition to a full numerical keypad for convenient data entry, this series also provides unique features not typically found in comparable power sources, such as LED test modes, modular interface card slots, automatic range selection, and an optional 8-bit bidirectional digital I/O interface.
