B&K Precision is a leading manufacturer of reliable and cost-effective test and measurement equipment for engineers, technicians and research professionals. Its portfolio includes DC power supplies, electronic loads, spectrum analysers, signal generators, oscilloscopes, multimeters, battery testers and component analysers. Trusted across the electronics, automotive, education and industrial sectors, B&K Precision instruments are designed to support product development, manufacturing, troubleshooting and quality assurance applications.
B&K Precision offers 8 modules for use with its MPS series mainframes (MPS1000 and MPS1001).
Key facts (MPS1302):
Rated Voltage: 32V
Rated Current: 9.5A
Fixed Range
Note: Mainframes are sole separately
300W Modules | ||||
|---|---|---|---|---|
Model |
MPS1301 |
MPS1302 |
MPS1303 |
MPS1304 |
Rated Voltage |
15V |
32V |
60V |
100V |
Rated Current |
20A |
9.5A |
5A |
3A |
Ranging |
Fixed Range |
|||
Identical modules can be combined in series/parallel to increase the maximum voltage/current output to 400 V or 80 A.
When series/parallel operation is enabled, the display automatically adjusts for increased voltage/current limits.

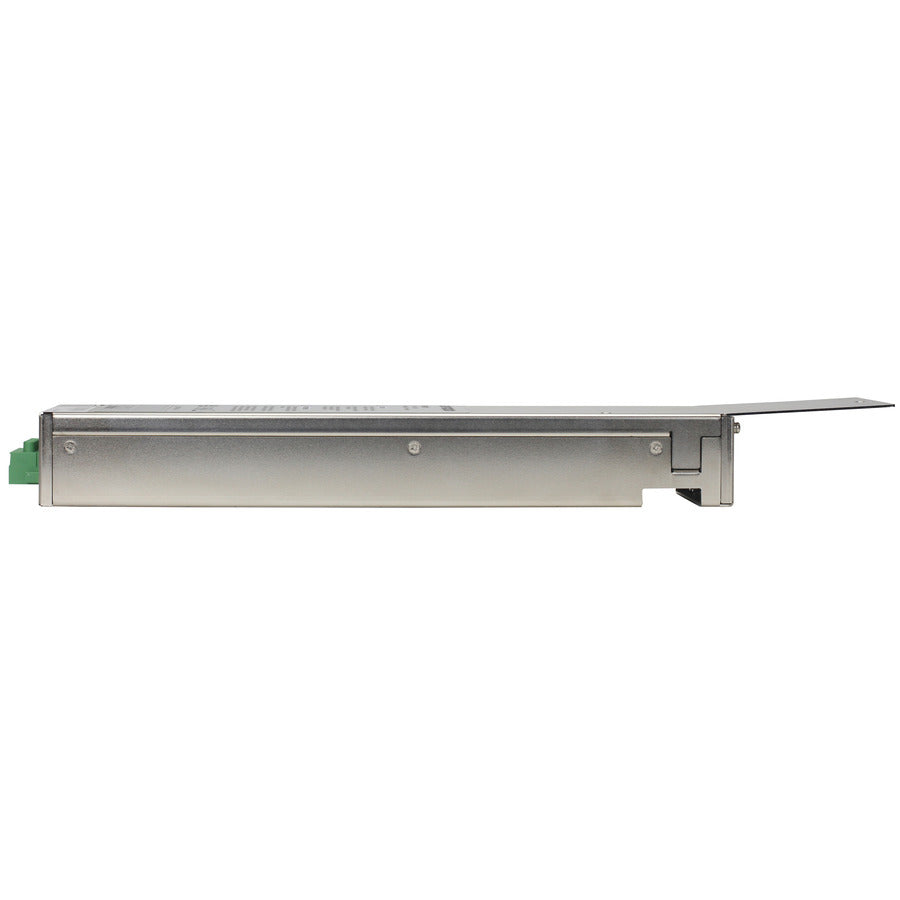

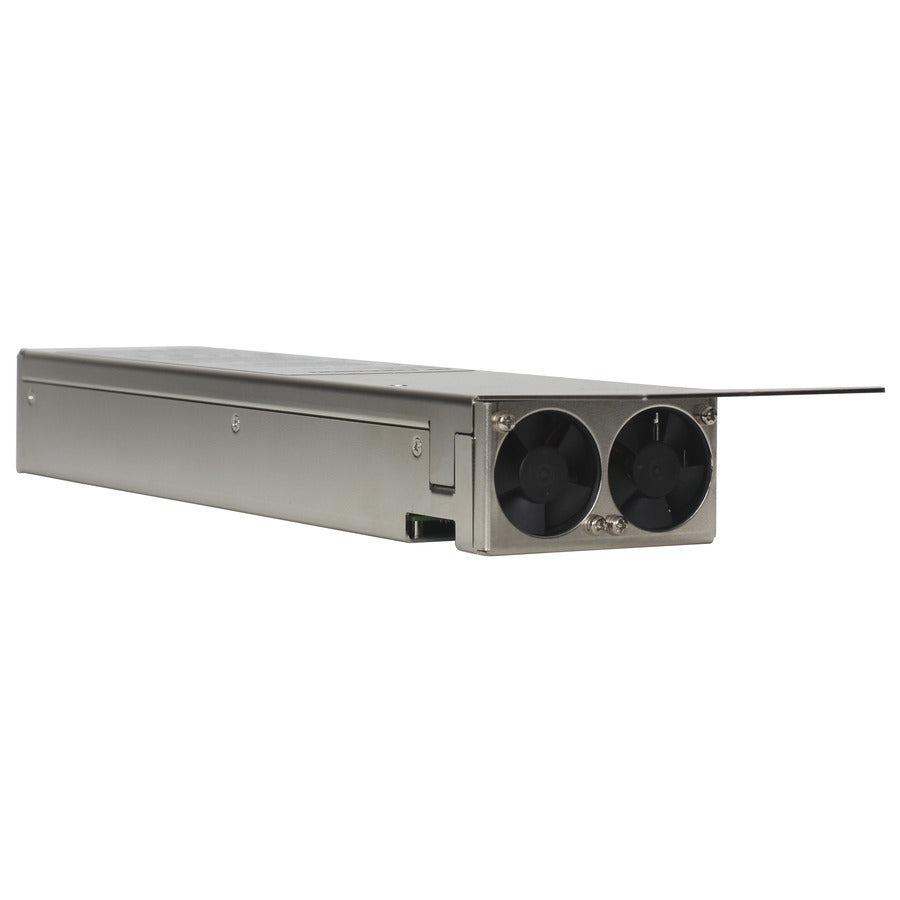

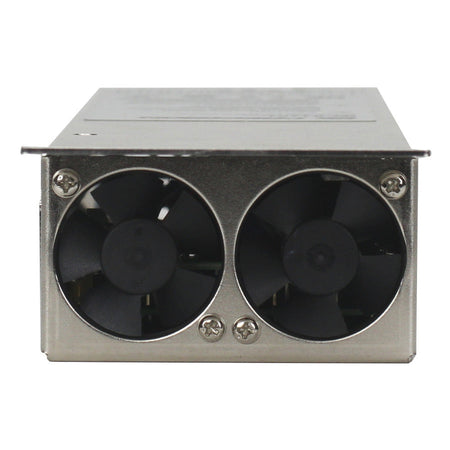

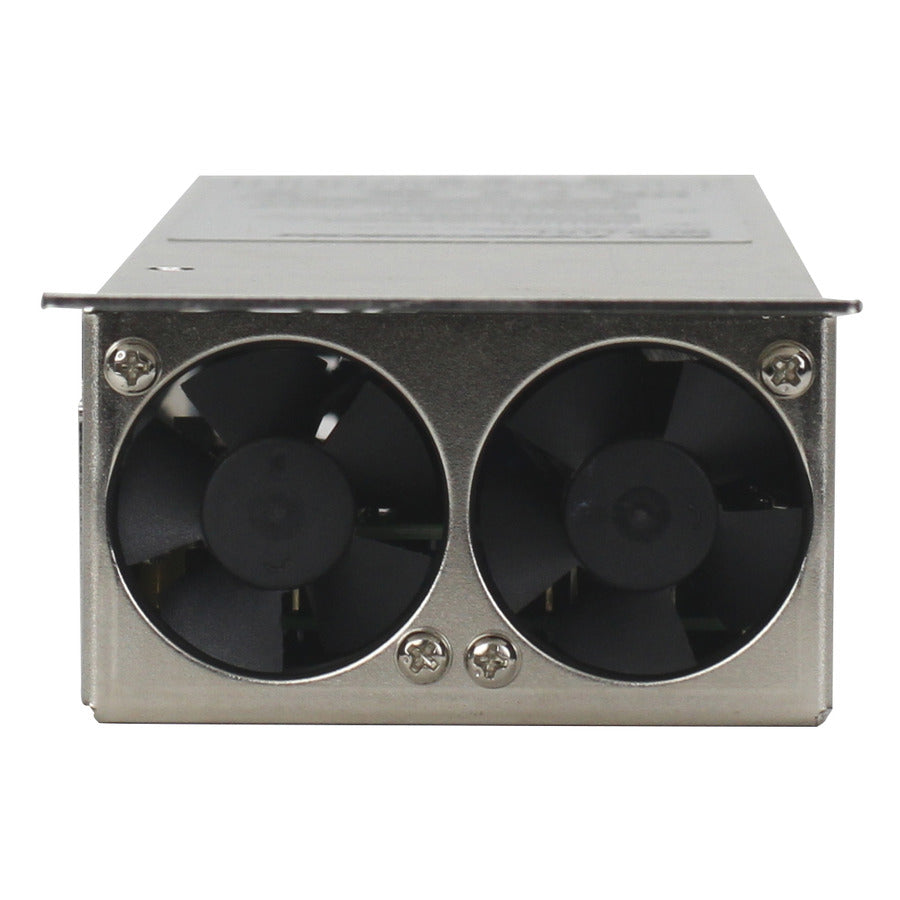

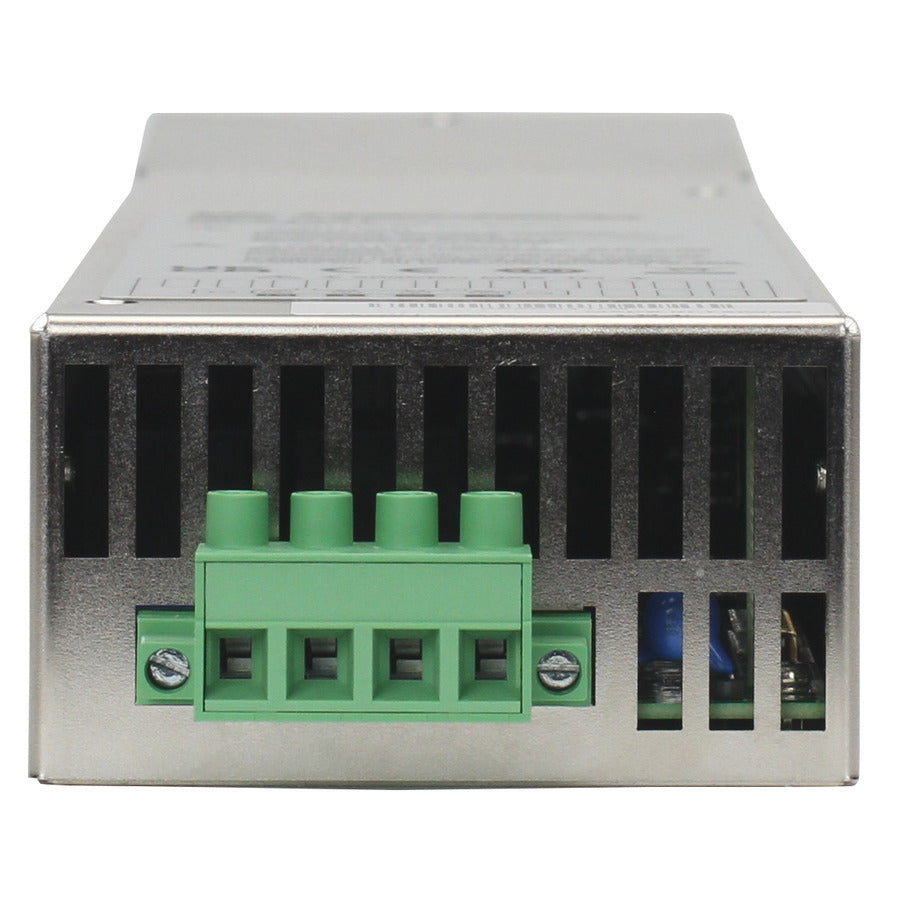

MPS1302 300W Module
Calibration Certificate
Note: Mainframe sold separately (required for operation)
