SKU: 70048107 | MPN: CGO-5100B
New

Com-Power CGO-5100B Comb Generator, Radiating Signals up to 18 GHz

Regular price £4,226.00
Available on Request
Manufacturers lead time applies
Discounts are only applicable while stocks last.

Need help choosing the right equipment?

Our product specialists can compare models, confirm availability and lead time, and help you find the best option for your application.

Com-Power

Com-Power is a specialist manufacturer of EMC and RF test equipment, providing solutions for electromagnetic compatibility testing, emissions measurement and immunity testing. Its portfolio includes antennas, signal generators, EMI receivers, amplifiers, LISNs, field probes and EMC test software. Trusted by engineers in electronics, automotive, aerospace and compliance laboratories, Com-Power products support accurate EMC testing and compliance with international standards.

The CGO-5100B Comb Generator is a radiated reference signal source with a 100 MHz frequency step size. Unlike a signal generator the Comb Generator radiates all the harmonics at the same time without any need of tuning. The CGO-5100B has a frequency stability of 5 PPM and radiate signals up to 18 GHz.

This Comb Generators have a built in antenna which is located on top of the circular chassis. The chassis shape helps the Comb Generator radiate the signal more uniformly in all directions in the horizontal plane. It can be turned on its side for vertical plane measurements, but is generally not recommended because the influence of the ground plane on the radiation pattern.

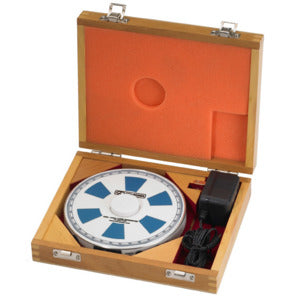

The CGO-5100B is powered by rechargeable internal NimH batteries. Using a battery eliminates the need for external cabling that may interfere with the radiated signals. When fully charged, the battery allows continuous use of the Comb Generator for up to 18 hours. The Comb Generator and the charger are shipped with a custom wooden storage box.

Application

Most EMC regulatory agencies require EMI labs to perform regular calibration of test equipment and test sites used for EMI emission measurements. Most EMC labs calibrate their sites and test equipment annually to ensure this requirement is met. However, it is prudent to check the sites and test equipment more frequently to ensure the data taken on the site is accurate and consistent. The normal calibration methods are not practical for a quick check. The solution is to use a Comb Generator as reference signal source.

The test engineer can keep a regular log of Comb Generators radiated readings. This data can be used to detect potential problems with site or equipment by monitoring any significant changes. Using this method, potentially costly measurements error can be avoided. Without regular monitoring a broken antenna, a bad cable, blown preamplifier and poor RF connections may go undetected. The Comb Generator can be also used compare several sites to determine the impact of the site on the test data.

Other applications for the comb Generator include testing shielding effectiveness of an enclosure and materials.
