Com-Power is a specialist manufacturer of EMC and RF test equipment, providing solutions for electromagnetic compatibility testing, emissions measurement and immunity testing. Its portfolio includes antennas, signal generators, EMI receivers, amplifiers, LISNs, field probes and EMC test software. Trusted by engineers in electronics, automotive, aerospace and compliance laboratories, Com-Power products support accurate EMC testing and compliance with international standards.

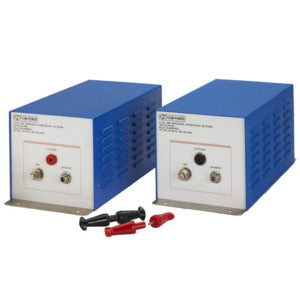

The LI-125C Line Impedance Stabilisation Network LISN provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-125C is compliant with both CISPR 16-1-2 and ANSI C63.4.
The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-125C includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-125C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-125C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports.
The matching colour-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-125C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.
