Fluke FLUKE-116 Digital HVAC Multimeter, CAT III 600 V, Built-In Thermometer, 110 Series

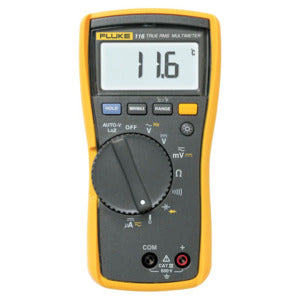

FLUKE-116 Digital HVAC Multimeter

Key Features:

• 6,000 Count display
• True RMS
• Built in thermometer and temperature probe included for HVAC applications
• Microamps to test flame sensors
• LoZ: low input impedance to eliminate ghost (stray) voltage to make more accurate measurements
• Large, white LED backlight to work in poorly lit areas
• Compact ergonomic design for one-handed operation
• Min/Max/Average to record signal fluctuations
• Compatible with optional magnetic hanger (ToolPak)
• Resistance, continuity, frequency and capacitance
• CAT III 600 V safety rated
• TL75 Hard Point Test Lead Set
• 3 Year Warranty

The Fluke 116 HVAC Digital Multimeter provides the features needed to troubleshoot HVAC equipment

The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors. Use the Fluke 116 to test motor start and run capacitors up to 10,000 microfarads. Rely on the Fluke 116 to make your everyday measurements †up to 600 volts ac or dc, 40 MΩ, diode test and exceptionally fast continuity.

Perform A Wide Range Of HVAC/R Tests

Measure superheat and subcooling

• Measure key temperatures and pressures. Use the Fluke 116 with a Fluke velcro pipeclamp (80PK-11) and a pressure module (PV350) to determine superheat and subcooling values.

• Detect problems like a clogged filter drier, undercharge, overcharge, faulty metering device or improper airflow, liquid line restriction or insufficient water flow.

• Check the temperature of the air coil

• Confirm when the defrost cycle starts and ends

Take temperature surveys

• Test out compressor heads, oil sumps, evaporator coils and suction lines, plus discharge lines, condenser coils and the liquid line

Microamps measurement for testing flame sensors

• When a furnace flame will not stay lit, use the Fluke 116 microamps measurement to troubleshoot the flame rod circuit.

LoZ - Low impedance input

• Reduces chance of false readings due to ghost voltage with new low impedance design

• Safer troubleshooting in high energy 3-phase distribution panel with IEC61010 ratings

Fluke 110 Series of Digital Multimeters

The Fluke 110 series of digital multimeters is designed for professionals who need reliable tools to quickly diagnose and resolve problems. These handheld, battery-powered devices feature true-RMS measurement for accurate readings, a 6000-count display, and a backlight that ensures visibility in poorly lit conditions. With the addition of a bar graph for dynamic readings, a CAT III 600 V safety rating, and an IP 42 rating for added durability, the Fluke 110 series combines functionality and robustness to meet the demands of challenging environments.

What's in the Box

• Fluke 116 Digital Multimeter
• (1 pair) 4 mm silicone test lead set
• 80BK Integrated Temperature probe
• Holster
• Installed 9 V battery
• Quick reference guide
