Features
Adopts compound semiconductor silicon carbide (SiC) technology to create a 4U 6 kVA high-performance AC/DC power source with high power density
AC input supports single-phase and three-phase, phase voltage 200 V to 240 V±10 % (Delta or Y connection)
10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA)
Multi-channel output function
Supports 1P2W, 1P3W, 3P4W output
AC maximum output phase voltage: 350 Vrms line voltage: 700 Vrms
Frequency Range ：AC Mode: 15.00 Hz to 2000.0 Hz, AC+DC Mode: 1.00 Hz to 2000.0 Hz (Stand-alone unit ASR-6450/6600)；Parallel Rack Type：highest frequency de-rating to 1000.0 Hz (9 kVA to 18 kVA)；de-rating to 550.0 Hz (24 kVA to 36 kVA)
AC balanced and unbalanced three-phase, phase loss output functions
Programmable output impedance adjustment
Dual-channel voltage/current output monitoring function
Voltage output rise time can be adjusted in three ranges
Supports sequence editing and emulation output mode
Powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms
Advanced web server control to support data acquisition function
100th order harmonic measurement function
Support Parallel Connection Type Up to 36 kVA / 36 kW Maximum
Standard interfaces: RS-232C, USB, LAN
Optional interfaces: CAN Bus, DeviceNet, GPIB
The Inception of ASR-6000 High Performance AC/DC Power Source Development
From the very moment Alpha Go defeated the human chess champion with its ultra-high-speed computing capability, artificial intelligence technology (AI) has developed rapidly around the world. Today, servers with advanced AI functions process tremendous amounts of data under the high-speed computing architecture of 2 CPUs + 8 GPUs.
However, AI servers require a huge amount of power to maintain high-speed computing! In order to meet this demand, the power, density and efficiency of server power supplies have been greatly improved. High-power server power modules require high-efficiency conversion and saving of power consumption. AC single-phase input, HVDC 400 V input or increased DC voltage output designs can be utilized to achieve this purpose.
In order to ensure power stability when high-power servers are operating, power modules with hot-swappable redundant power supply specifications (such as CRPS) have been widely applied in server racks. Power modules with redundant functions require testing of multiple power modules at a time to ensure that all modules can maintain normal operation during high power output. Due to the rapid changes in the development of server power supplies, GW Instek developed the brand new flagship model ASR-6000 series to meet customer needs.
The ASR-6000 series has two models - ASR-6450 AC / DC 4.5 kVA and ASR-6600 AC / DC 6 kVA
ASR-6000 is the first stand-alone unit from GW Instek that supports AC single/three-phase input and output, and has rated DC power output. The series employs compound semiconductor silicon carbide (SiC) technology to create a 4U 6 kVA high power density and high-performance AC /DC power source.
ASR-6000 has the ability to emulate more diverse power environment changes, such as balanced three-phase and unbalanced three-phase, phase loss, and features multi-channel output function can test up to three DUTs at the same time, programmable output impedance adjustment, and built-in over 40 types of arbitrary waveform outputs. The invincible launch of GW Instek flagship model ASR-6000 demonstrates that GW Instek can provide a complete test solution for high-power AC sources. ASR-6000 is the MVP of GW Instek power sources.

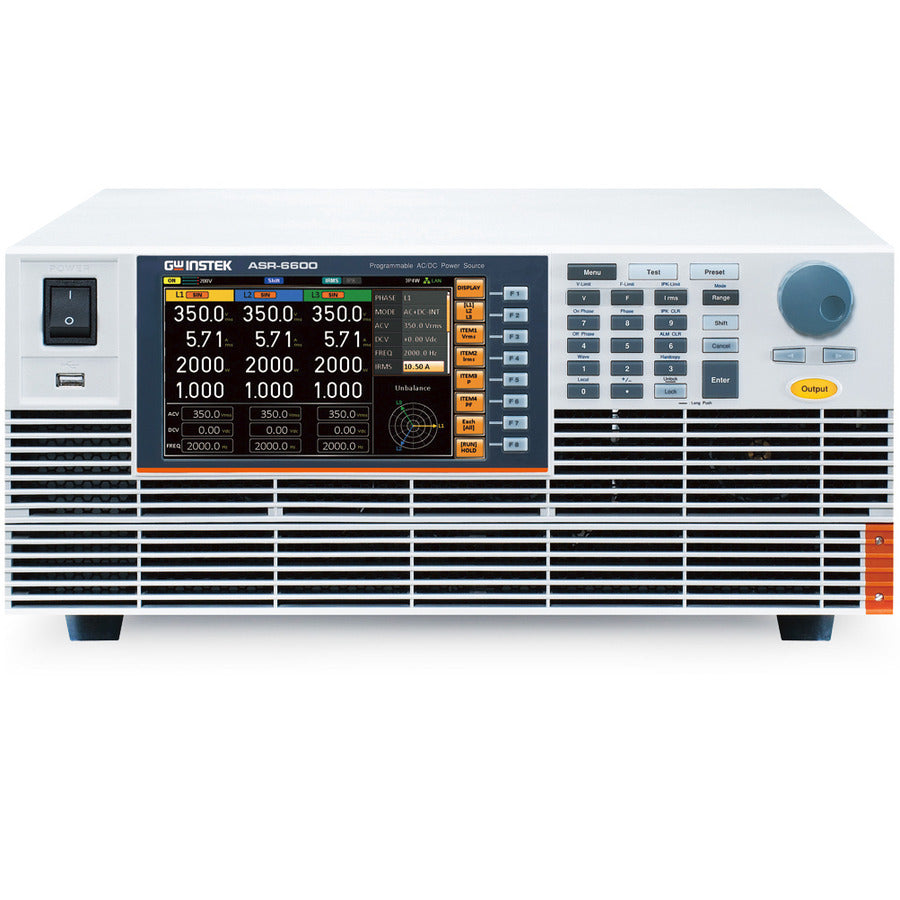

1. Air Inlet |
6. Menu/Test/Preset Keys |

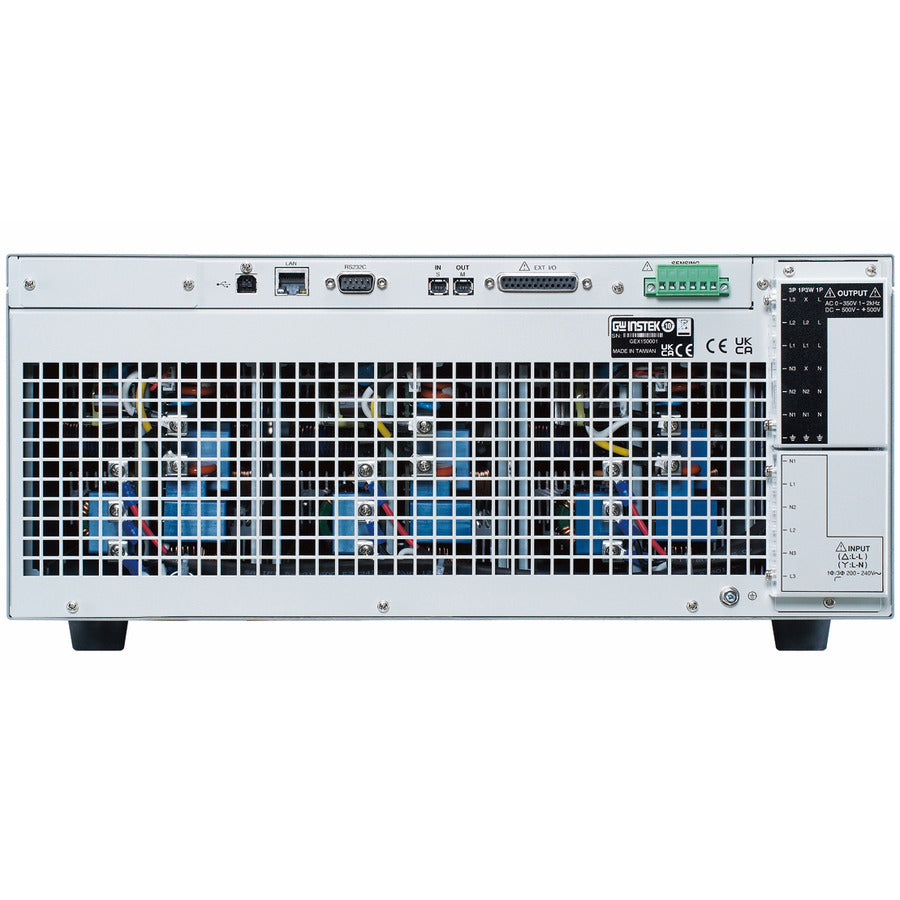

11. LAN Connector |
16. Output Terminal |
2. 7-inch TFT-LCD Screen |
7. V/F/Irms and Limit, Range, Lock/Unlock Buttons, etc. |
12. RS-232C Connector |
17. AC Line Input Terminal |
3. Function Keys |
8. Scroll Wheel and Arrow Keys |
13. External IN/OUT Connection in Parallel Function |
18/ Ground Point |
4. Power Switch Button |
9. Output Key |
14. External I/O Connector |
19. Optional Interface Slot |
5. USB Host Port |
10. USB Device Connector |
15. Remote Sensing Input Terminal |
In The Box
QuickStart Guide
Safety guide
Input terminal cover
Output terminal cover
Copper plate for delta connection input (Mark 1)
Copper plate for single phase and Y connection input (Mark 2)
Copper plate for delta connection input (Mark 3)
Copper plate for 1P output (Mark 4)
GRA-451-E Rack mount adapter (EIA)
USB cable (USB 2.0 Type A - Type B cable, approx. 1.2 m)
