GW Instek GKT-008
GW Instek GKT-008
GW Instek
SKU: 26918.1 | MPN: GKT-008
New

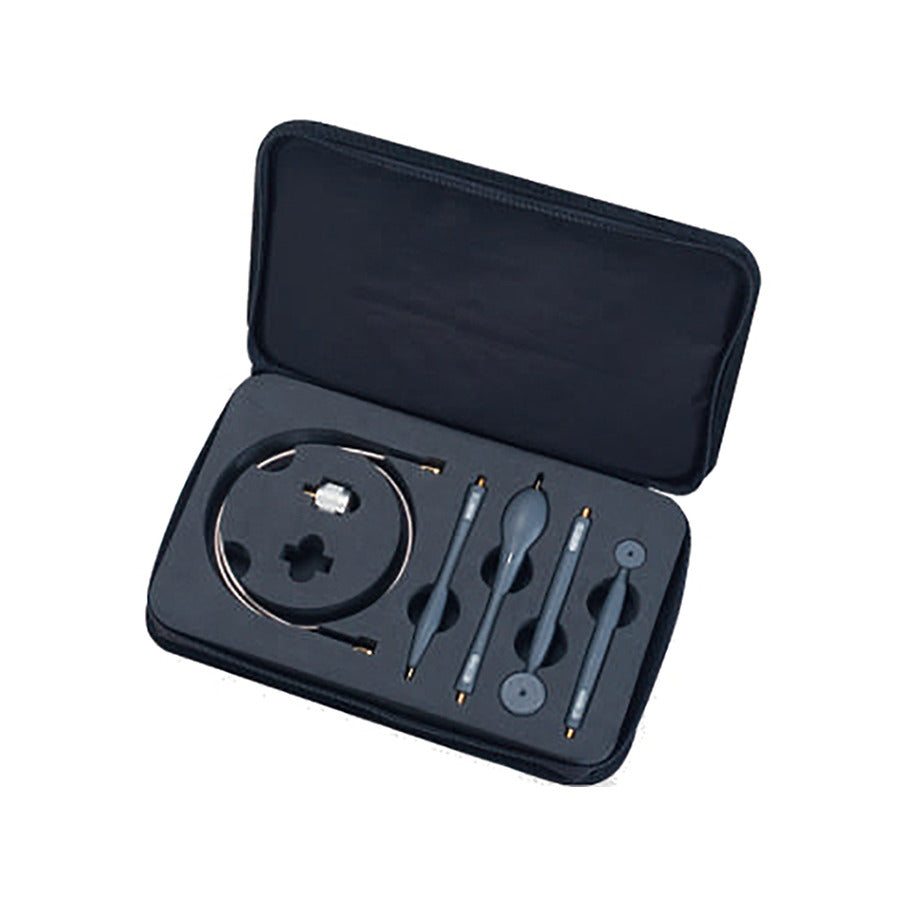

GW Instek GKT-008 EMI Near Field Probe Set, Includes 4 Probes PR-01, PR-02, ANT-04, ANT-05

£774.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

GW Instek

GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

Series Key Features

  • PR-01: AC voltage probe, 150kHz ~ 30MHz
  • PR-02: Electric field probe, 30MHz ~ 3GHz
  • ANT-04: Magnetic field probe, 30MHz ~ 3GHz
  • ANT-05: Magnetic field probe, 30MHz ~ 3GHz
  • ADP-002: Adaptor SMA(F) to N-type (M)
  • GTL-303: RF testing cable SMA(M) to SMA(M)

GKT-008 EMI Near Probe Set comprises of four probes, including the PR-01, PR-02, ANT-04, and ANT-05. The antenna factors of these four probes are built in the EMC Pretest function of the GSP-9330 spectrum analyzer. ANT-04 and ANT-05 are EMI magnetic field probes, which can maximally sustain 50Vdc. ANT-04 and ANT-05 magnetic field probes will collocate with ADB-008 DC block to avoid damaging spectrum analyzer and the RF input terminal of DUT receiver. PR-01 is an AC voltage probe, which can maximally sustain CAT II, 300VAC, PR-01 AC voltage probe will collocate with GPL-5010 transient limiter and BNC (M) to SMA (F) adapter to avoid damaging spectrum analyzer and the RF input terminal of DUT reciever. PR-02 is an EMI electric field probe, which can maximally sustain CAT I 50V DC. PR-02 electric field probe will collocate with ADB-008 DC block to avoid damaging spectrum analyzer and the RF input terminal of DUT receiver.
