Home » GW Instek » GW Instek PEL-503-80-50 DC Electronic Load, Programmable, 250W, 80V, 50A, Bench Top, PEL-500 Series
GW Instek
SKU: 20005549 | MPN: PEL-503-80-50
New

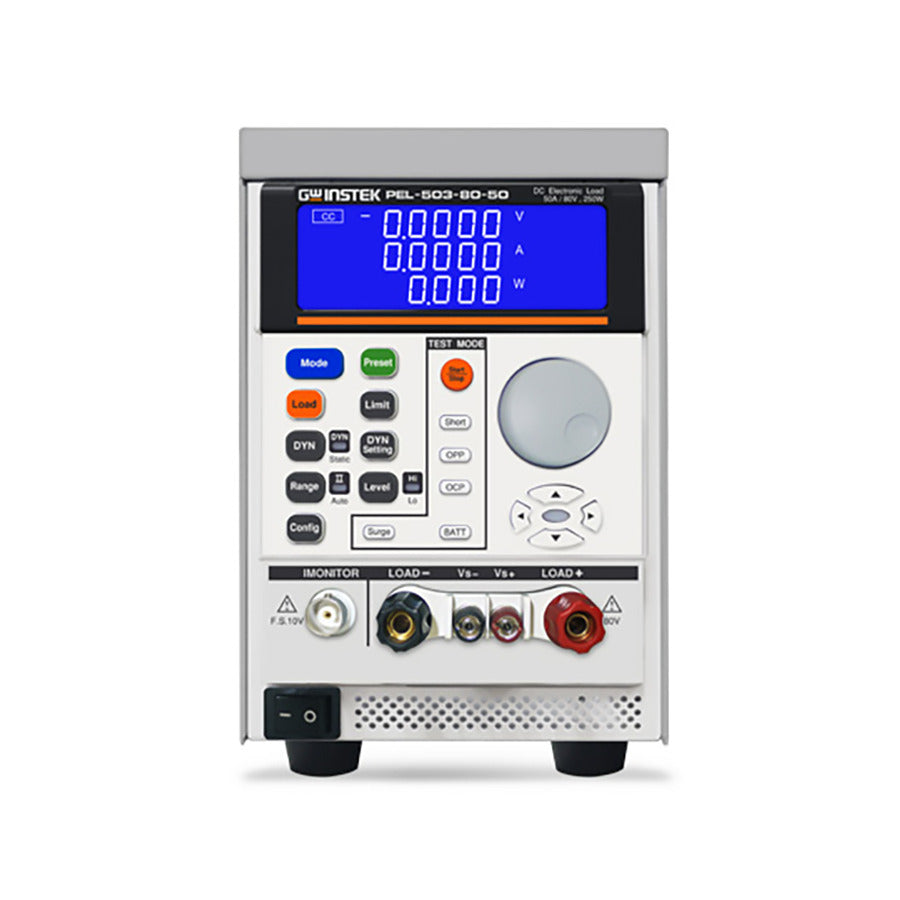

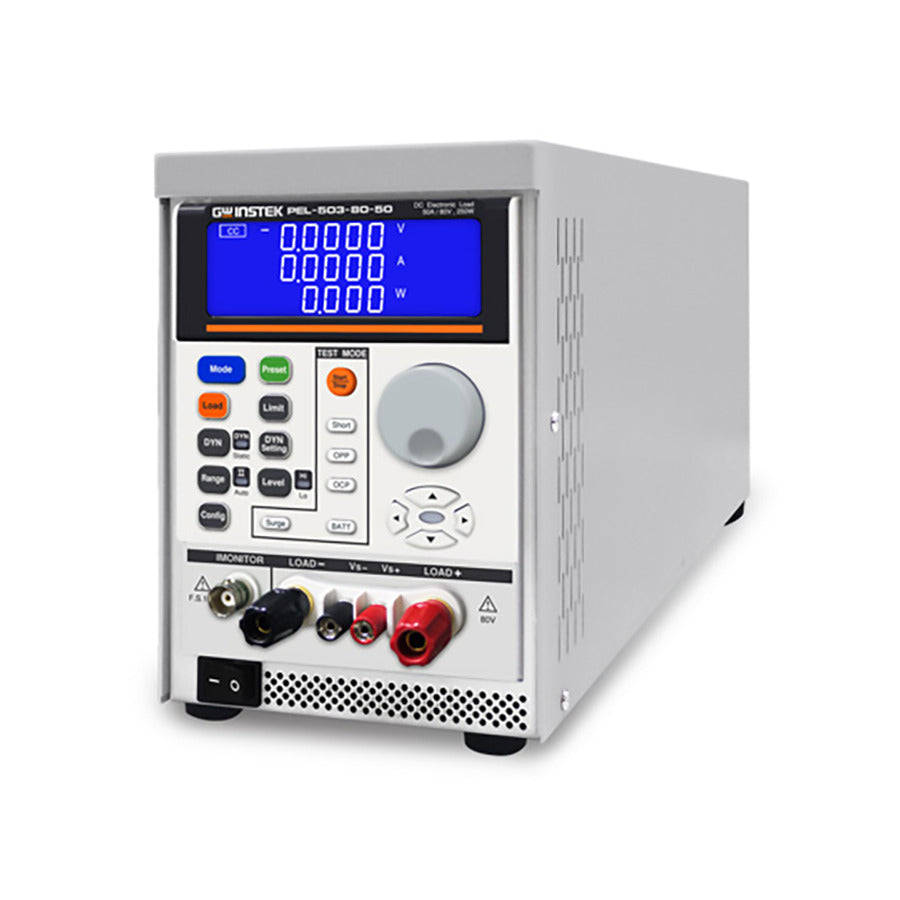

GW Instek PEL-503-80-50 DC Electronic Load, Programmable, 250W, 80V, 50A, Bench Top, PEL-500 Series

£981.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

GW Instek

GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

PEL-500 Series DC Electronic Load

Features

  • 5-digit digital voltage, current and power meter
  • Simultaneous display of voltage, current, and watts
  • Short-circuit time can be set during short-circuit test
  • Automatic test function of overcurrent protection/overpower protection
  • The battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time.
  • Surge test can simulate boot overshoot current and transient current from hot plugging.
  • Constant current, constant resistance, constant voltage, constant power and Dynamic mode
  • Overvoltage, overcurrent, over power, over temperature protection and reverse polarity detection
  • Voltage polarity display can be set to positive value ("+") or negative value ("-")
  • Communications interface: RS232, USB

The PEL-500 series single-channel electronic load has a total of 5 models and provides 0~80V/ 0~500V voltage operating ranges and 250~700W power operating range. The series can be applied to R&D, quality control, ATE system and production test, including voltage source/current source test; switching power supply transient response; constant voltage mode for current limiting test; battery simulation; and battery discharge test.

PEL-500 Series DC Electronic Load
Model Power Voltage Current
PEL-503-80-50 250W 80V 50A
PEL-504-80-70 350W 80V 70A
PEL-504-500-15 350W 500V 15A
PEL-507-80-140 700W 80V 140A
PEL-507-80-30 700W 500V 30A
