GW Instek PPX-10H01
GW Instek PPX-10H01
GW Instek PPX-10H01
GW Instek PPX-10H01
GW Instek
SKU: 33108.1 | MPN: PPX-10H01
New

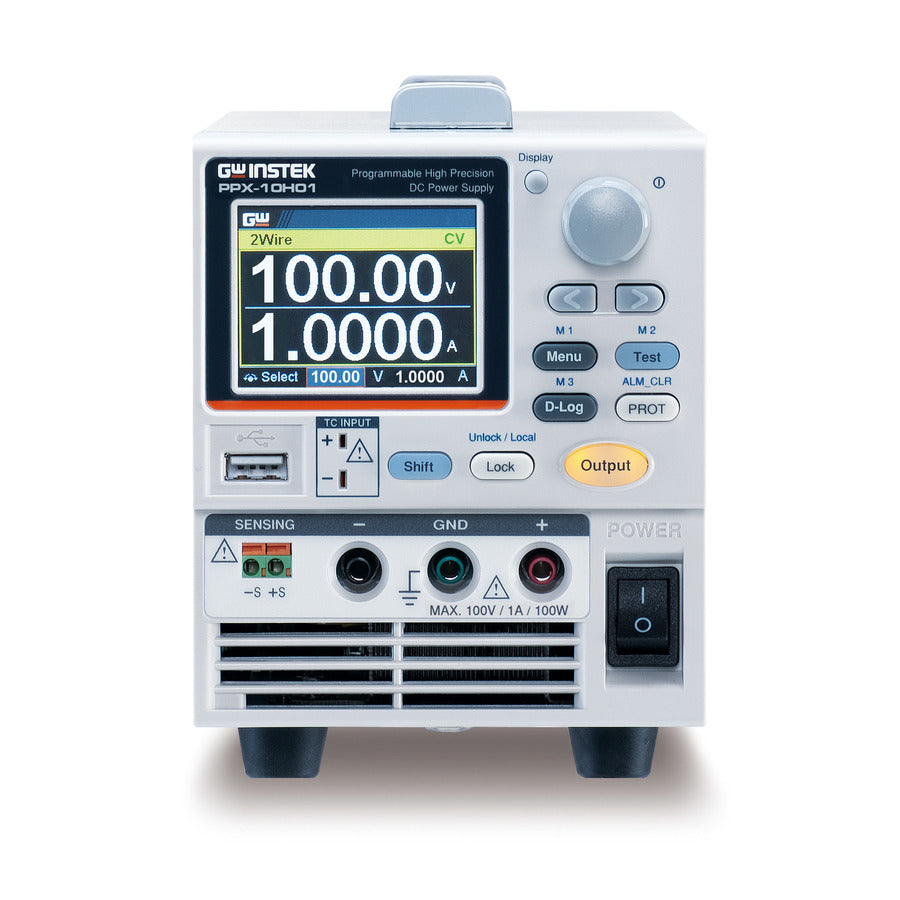

GW Instek PPX-10H01 High-Precision DC Power Supply, 100W, 100V, 1A, PPX Series

£861.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

GW Instek

GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

PPX-10H01 Programmable and Single Output High-Precision DC Power Supply, PPX Series

Features:

  • CV, CC priority start function
  • Four levels of current measurement resolution (min. 0.1µA) / two levels of voltage measurement resolution (min. 0.1mV)
  • Power output ON/OFF delay function
  • Adjustable voltage and current slew rate
  • Bleeder circuit control
  • Delayed over-current protection (OCP Delay)
  • Sequential power output function
  • Remote Sensing function
  • Data Logger
  • 10 sets of memory function
  • Over voltage protection, under voltage limit, over current protection, over temperature protection, AC alarm function
  • Supports K Type thermocouple temperature measurement

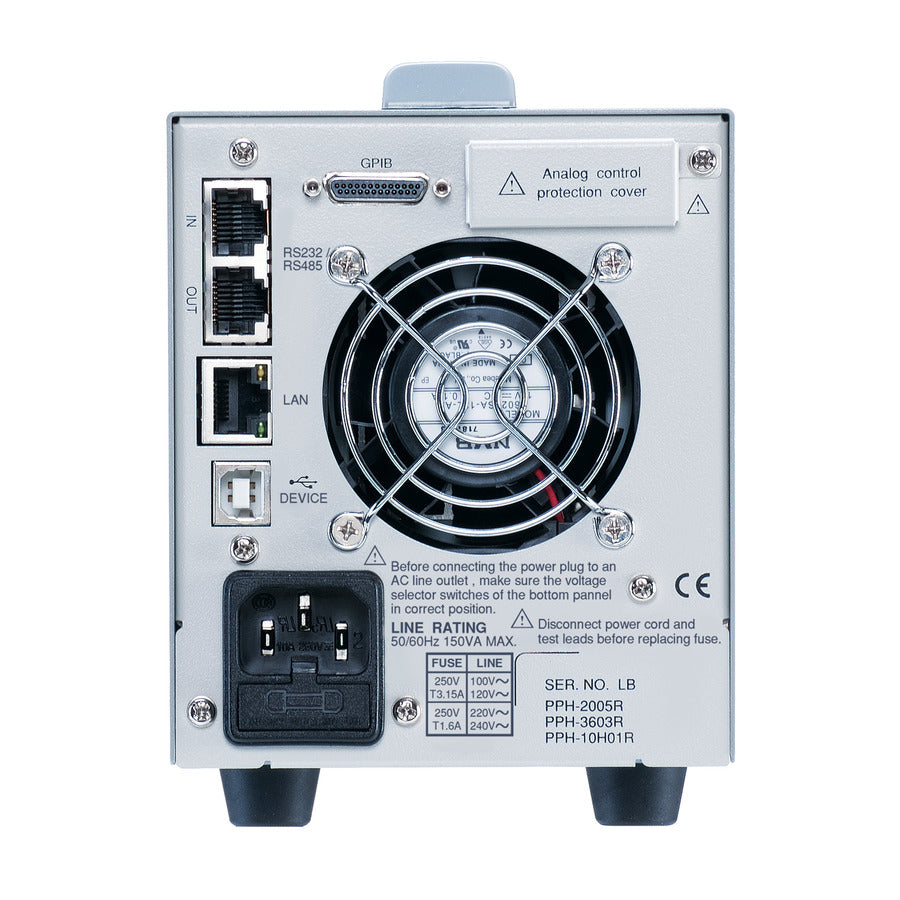

  • Interfaces: USB, LAN, RS-232, RS-485, Analog Control; Opt: GPIB
  • Size: 3U high, in line with 1/4 Rack
  • Multiple Unit Connection - up to 31 units via RS-485 Cables (GTL-260 / GTL-262)

GW Instek's PPX series programmable high-precision DC power supplies include six models; PPX- 1005(10V/5A/50W), PPX-2002(20V/2A/40W), PPX-2005(20V/5A/100W) ), PPX- 3601(36V/1A/36W), PPX-3603(36V/3A/108W), and PPX-10H01(100V/1A/100W). This series has the output low noise (0.35mVrms) and fast transient response characteristics (<50μs) of conventional linear power supplies.

The PPX-10H01, a PPX series model, has the output low noise (0.35mVrms) and fast transient response characteristics (<50µs) of conventional linear power supplies.

It also provides constant voltage and current priority output modes, plus the series can also set the voltage and current rising/falling slew rates separately. In addition, the delay time for the output can be turned on and off.

Users can be provided with high-precision measurements from four current levels and two voltage levels. Those measurement records, via the Data Logger function, can be stored in the USB for long-term measurement and recording of IoT devices, portable devices, wearable devices, and sensor components.

GW Instek PPX-Series DC Power Supplies
DC Output Mode PPX-1005 PPX-2002 PPX-2005 PPX-3601 PPX-3603 PPX-10H01
Output Voltage 10.000V 20.000V 36.000V 100.00V
Output Current 5.0000A 2.0000A 5.0000A 1.0000A 3.0000A 1.0000A
Output Power 50W 40W 100W 36W 108W 100W


In The Box

  • Test Lead
  • Power Cord
  • User Manual in CD
