GW Instek is a leading manufacturer of electronic test and measurement equipment, providing reliable and cost-effective solutions for laboratories, education and industrial applications. Its portfolio includes oscilloscopes, power supplies, spectrum analysers, signal generators, electronic loads, multimeters and LCR meters. Trusted by engineers, researchers and technicians worldwide, GW Instek products support product development, validation, maintenance and manufacturing processes.

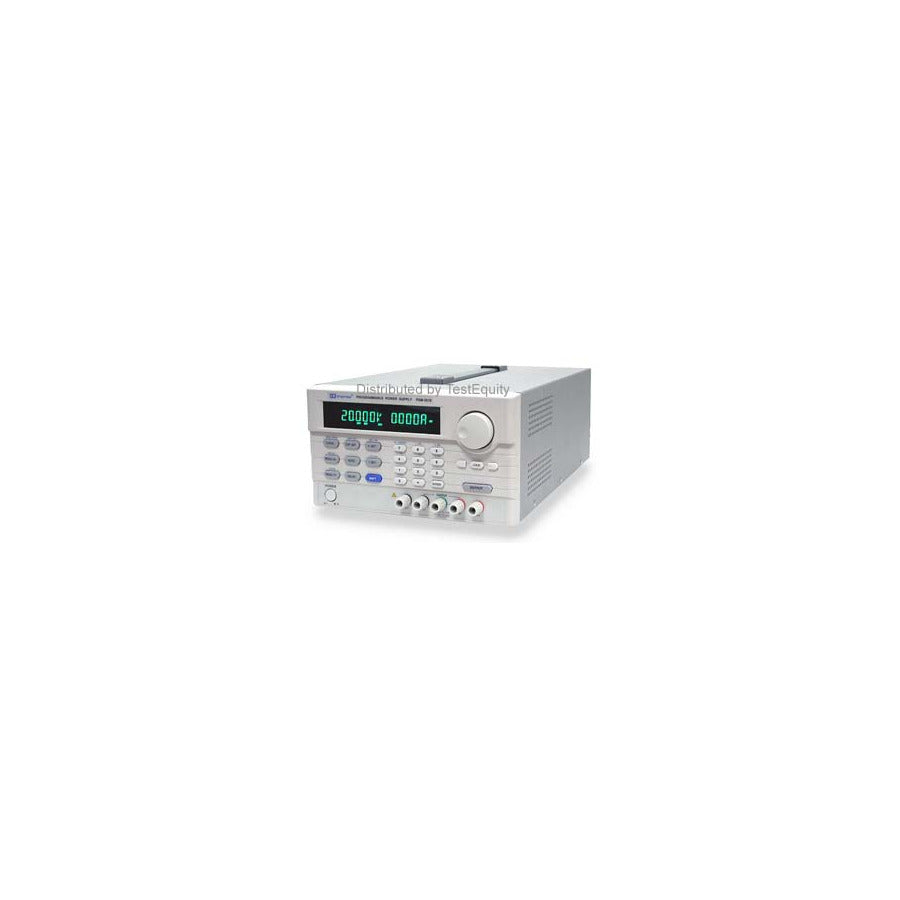

The PSM-Series is single output / dual range, 120W or 200W, programmable linear DC power supplies. OVP, OCP, OTP, and, output On/Off control protect the PSM-Series and their loads from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration is simplified with a digital interface and a clear LCD display.
This power supply standard features include store/recall output memories, automatic stepping with timers for continuous testing and self-testing, and software calibration features to reduce maintenance efforts. SCPI programming, LabVIEW drivers, RS-232C, and GPIB interfaces enable easy automated test system integration and remote control. The PSM-Series power supply is an ideal choice for high precision applications such as QA verification and product development.
| GW Instek PSM-Series DC Power Supplies | |||
|---|---|---|---|
| Model | PSM-2010 | PSM-3004 | PSM-6003 |
| Low Range | 0 to 8V/20A | 0 to 15V/7A | 0 to 30V/6A |
| High Range | 0 to 20V/10A | 0 to 30V/4A | 0 to 60V/3.3A |
| Voltage | 0.5 - 1mV | 1 - 2mV | |
| Current | 1mA | 0.1 - 0.5mA | 0.5mA |
