AC/DC True RMS Clamp Multimeter with 2000 A Current Range
True RMS clamp multimeter with 2000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm maximum conductor diameter, DC power, resistance, capacitance, continuity, inrush, Bluetooth included (Z3210)
• Current measurement up to 2000 A AC/DC
• Voltage measurement up to 1000 V AC/DC (2000 V DC with optional P2010)
• 55 mm core jaw diameter
• Safety rated CAT IV 600 V / CAT III 1000 V and CAT III 2000 V with P2010
• Integrated Bluetooth communication with included Z3210 adapter
• High-current measurement in industrial power distribution, switchgear, and large-scale equipment
• Maintenance and troubleshooting of solar power systems and high-voltage EV chargers
• Inrush current testing for large motors, transformers, and heavy machinery
• On-site diagnostics and field service where large conductor sizes require 55 mm jaws

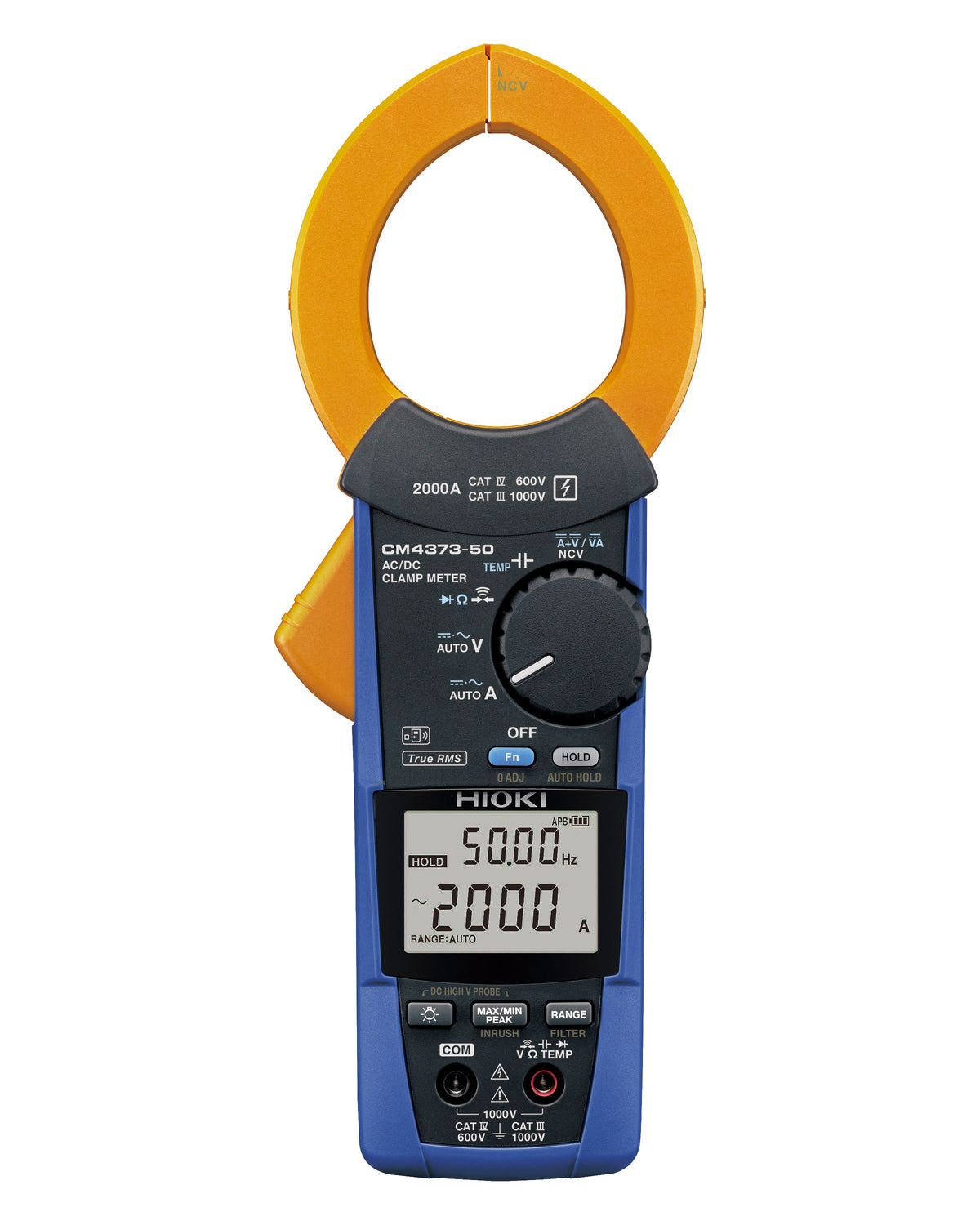

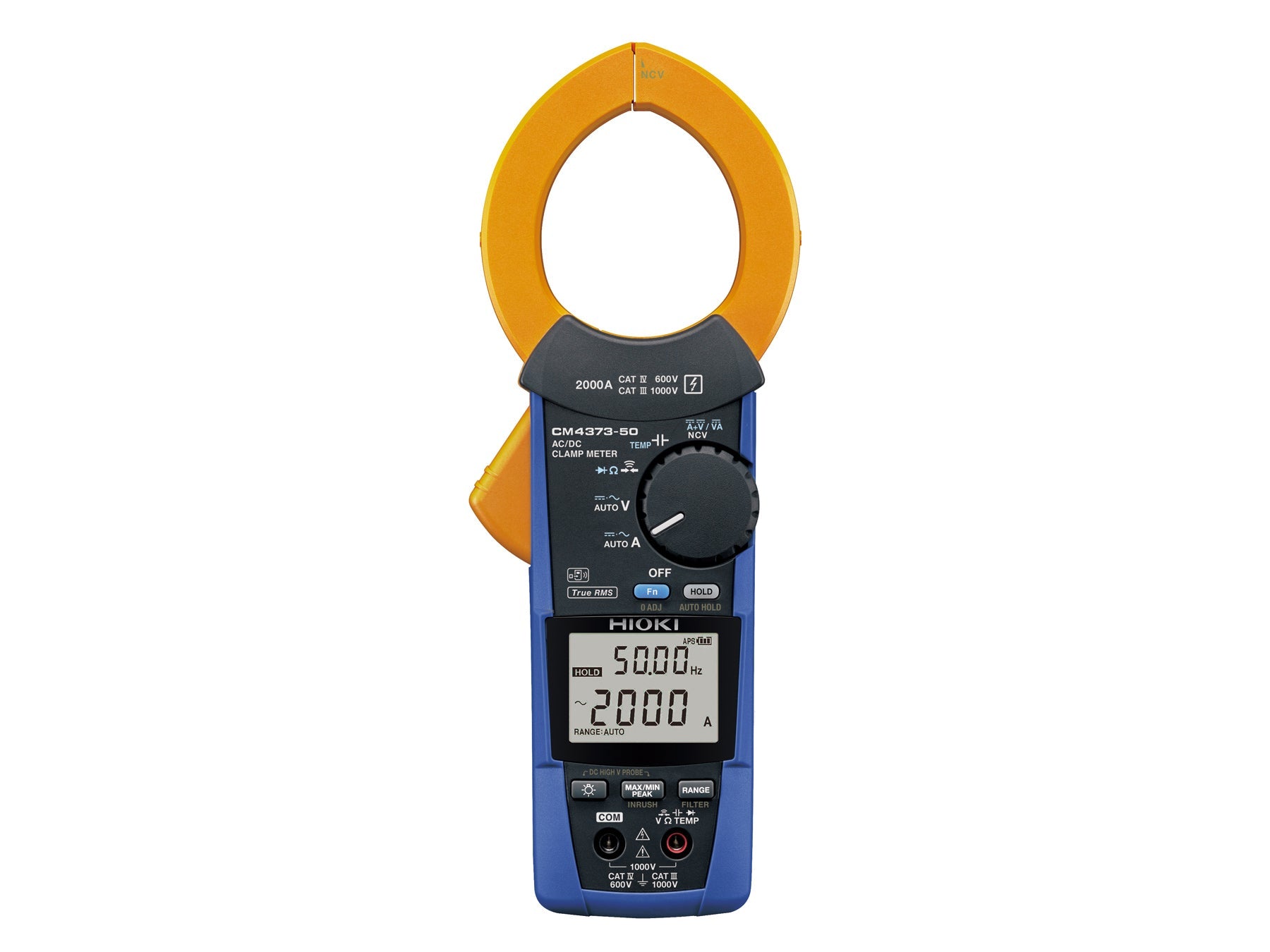

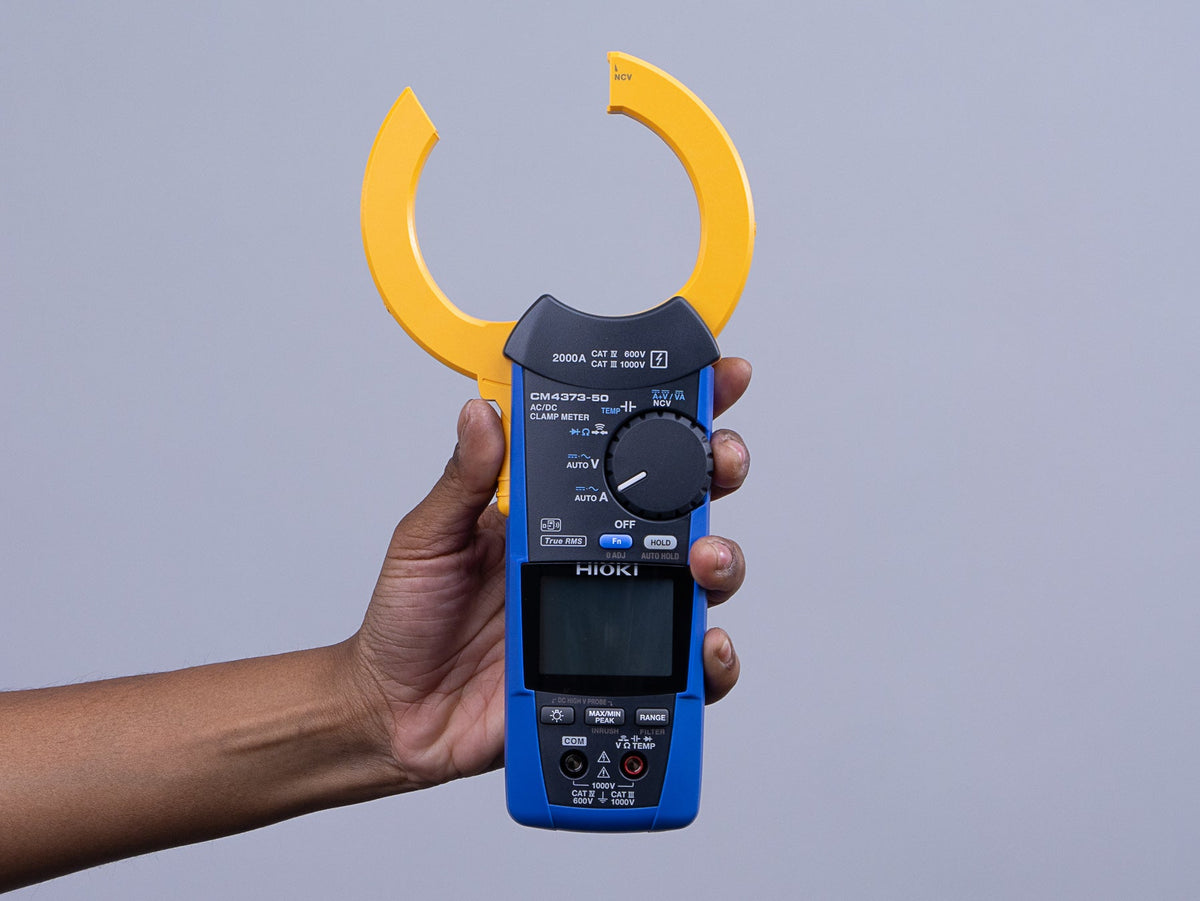

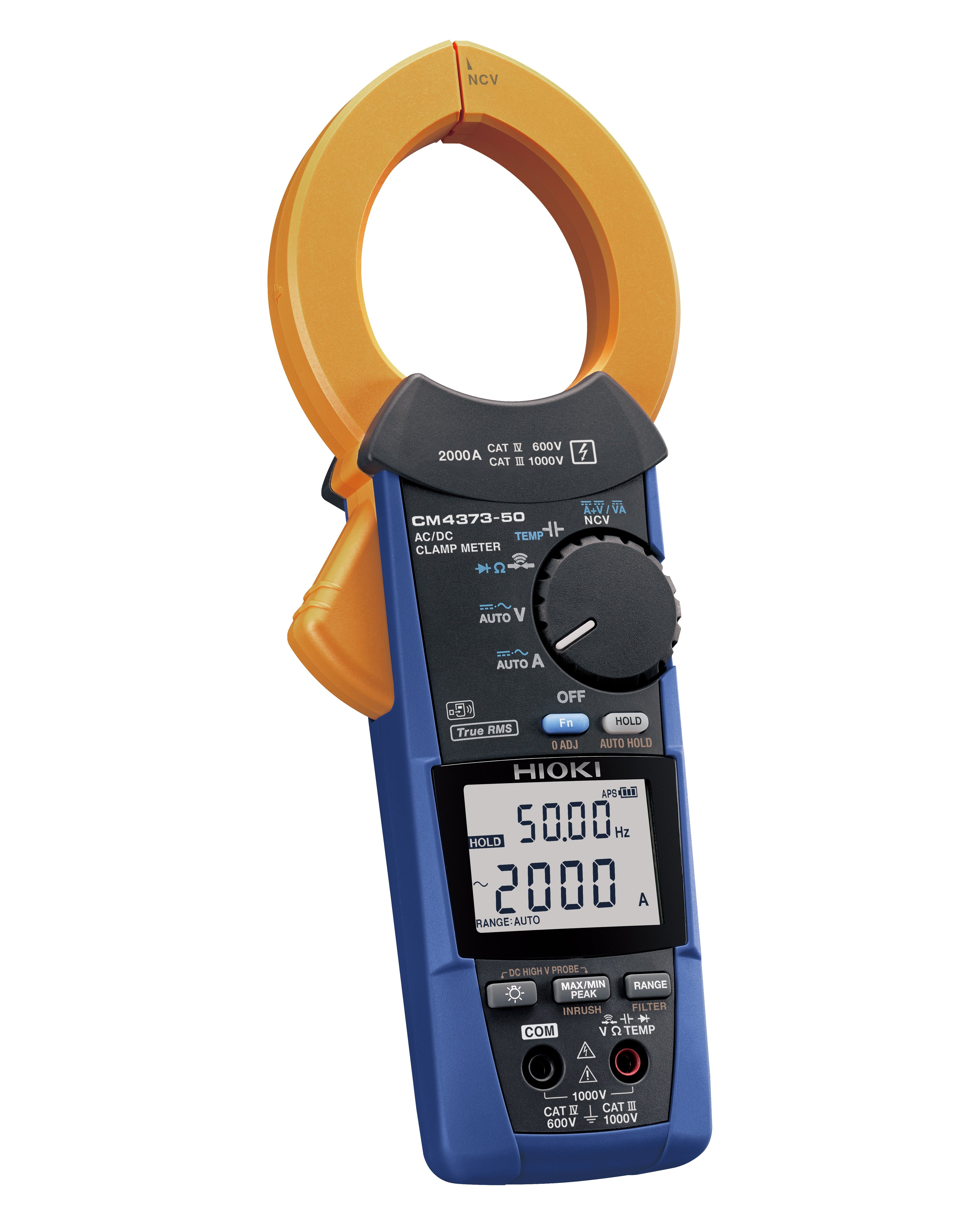

The HIOKI CM4373-90 Clamp Multimeter is the right choice for professionals who need safe and precise measurement of very large AC/DC currents. As a set consisting of the CM4373-50 and the included Z3210 Bluetooth Adapter, it combines a 2000 A range, True RMS accuracy, and wireless capability for industrial power distribution, heavy machinery, and EV charging systems. Its 55 mm jaws accommodate large diameter insulated conductors, enabling reliable measurement in applications where smaller clamp meters may not fit.
Voltage measurement up to 1000 V AC/DC covers most requirements. When paired with the optional P2010 High Voltage Probe, the instrument can measure up to 2000 V DC in CAT III environments, enabling safe testing of photovoltaic strings and high voltage batteries. True RMS technology ensures accurate results even with distorted waveforms.

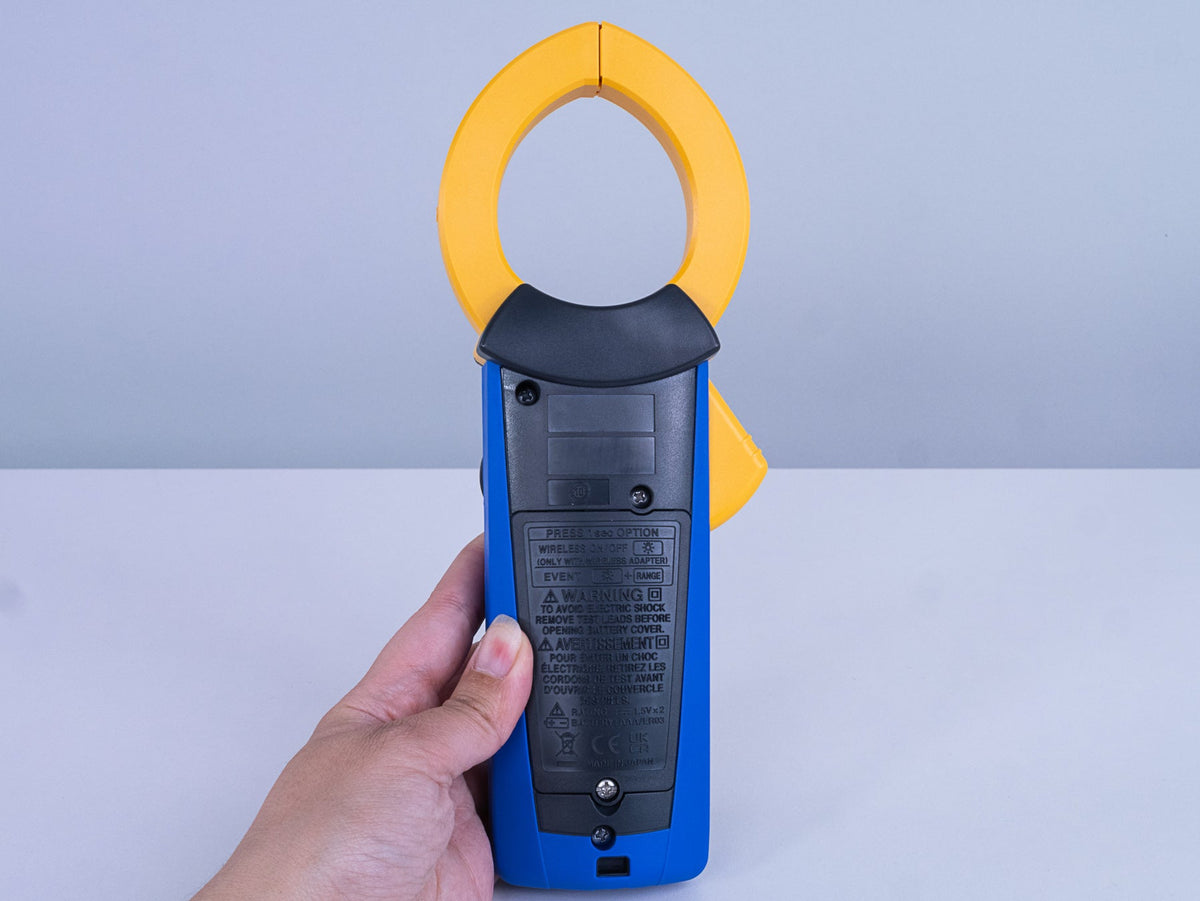

Beyond current and voltage, the CM4373-90 also functions as a versatile multimeter: it measures resistance, capacitance, continuity, diode polarity check, and DC power. This is particularly helpful when checking DC loads and power conditions in photovoltaic systems, battery applications, and industrial DC circuits. The temperature function can be used with a K thermocouple such as the optional DT4910 Thermocouple (K), covering -40 °C to 400 °C. It also supports non-contact voltage detection for a quick check for the presence of AC voltage. Automatic AC/DC detection and advanced display options such as Max/Min/Avg, PEAK values, filter function, manual/auto hold, and pass/fail judgement simplify daily tasks.
The included L9300 test leads feature a slide-type mechanism that allows the metal tips to be extended or retracted, eliminating removable caps. The display backlight makes readings easier in poorly lit environments. An operating temperature range of -25 °C to 65 °C allows use under demanding site conditions.

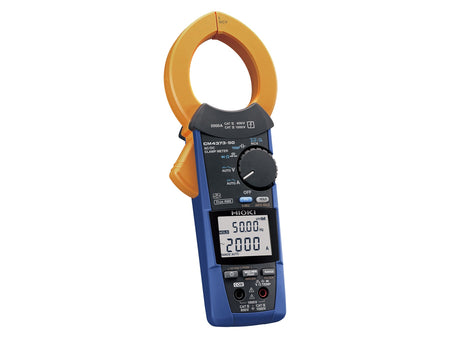

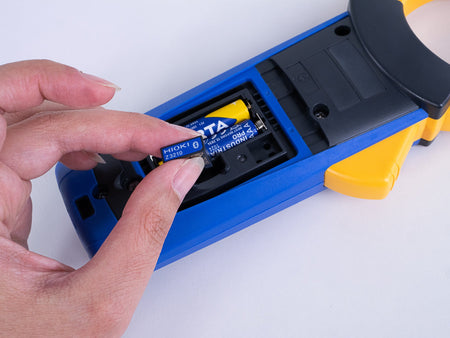

With the included Z3210 Bluetooth Adapter, measured values can be transferred wirelessly to a smartphone or tablet. In the free GENNECT Cross app for Android and iOS, values can be stored, documented, and assigned to measurement locations. Live values can be viewed directly on the mobile device, even when the instrument display is difficult to access. The app also supports current waveform display, which helps with troubleshooting under changing load conditions. In addition, the Z3210 supports HID functionality for direct transfer of measured values into Excel or other applications.
The CM4373-90 complies with CAT IV 600 V / CAT III 1000 V, and with the P2010 it also supports CAT III 2000 V. Its rugged housing is rated IP54 for dust and splash resistance.
HIOKI has been developing clamp meters, clamp multimeters, current sensors and current clamps for decades and manufactures them at its own factories in Nagano Prefecture, Japan. The CM4373-90 stands for precise measurements, durable workmanship and a level of quality that becomes immediately clear during service work on large conductors.
• CM4373-50 Clamp Multimeter
• Z3210 Bluetooth Adapter
• L9300 Test leads
• C0203 Carrying Case
• 2 × AAA (LR03) batteries
• Instruction manual
• Safety instructions
• P2010 High Voltage Probe
• DT4910 K-Type Thermocouple
• L4933 Contact Tip Set
• L4934 Small Alligator Clip Set
• C0207 Carrying Case
• L4930 Safety Test Leads
• L4935 Crocodile Clip Set
• L4936 Busbar Clip Set
• 9804 Magnetic Clip Set
