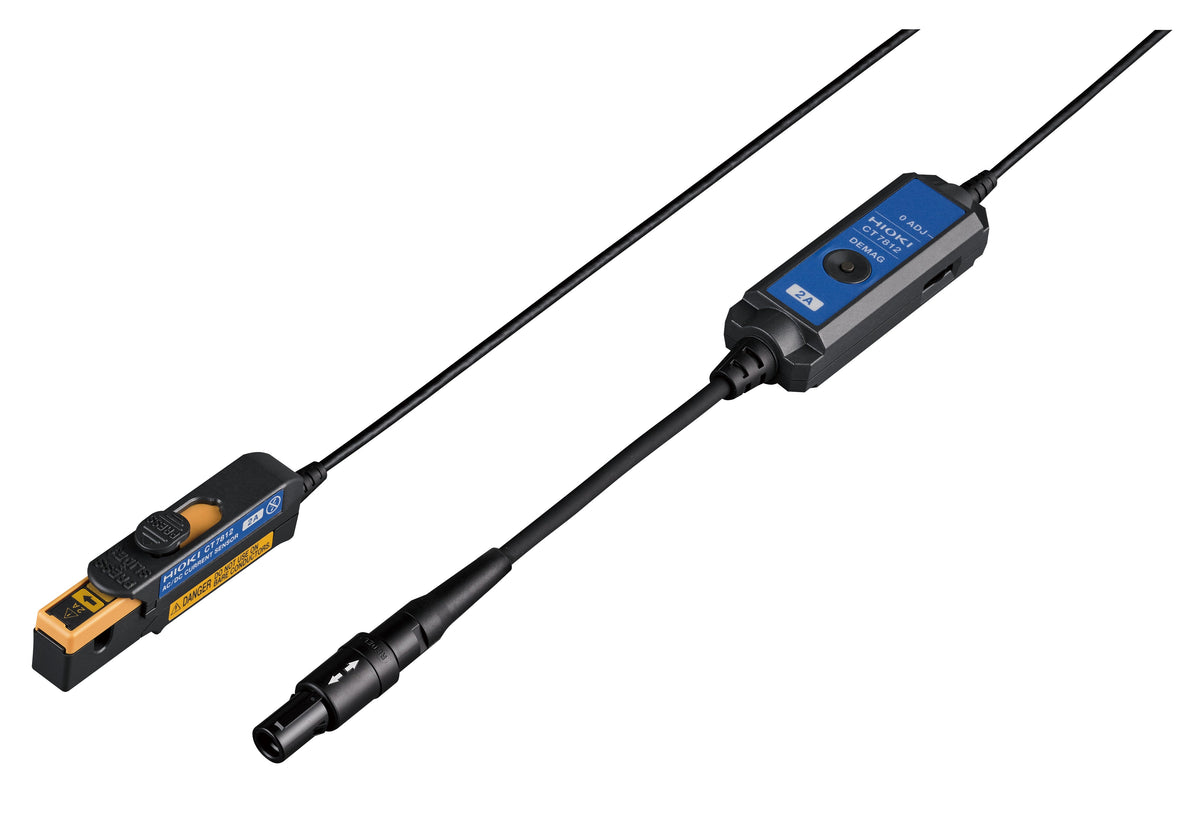

Ultra-compact AC/DC Current Probe, 2 A / 100 kHz
Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3%, max. resolution 0.1 mA, wide temperature range -40 to 85 °C, measurable current up to 2 A, designed exclusively for LR8450 Series Data Logger.
• High accuracy ±0.3%
• Measurable current up to 2 A
• Ultra small size sensor with slide open/lock mechanism
• Wide temperature range -40 to 85 °C
• DC to 5 kHz bandwidth with LR8450 Data Logger
• Easy installation, even in tight spaces
• Accurate low current measurement
• Allows for stable measurement from Alaska to the Sahara
• Development and analysis tool for improving the energy efficiency of electric vehicles (EV)
• Consumption monitoring of low power EV circuits like Engine Control Units (ECUs), interior lighting, etc.
• Optimizing the overall energy consumption of low power circuits in EVs to extend the driving range
• Optimizing the overall energy consumption of low power circuits in electric construction vehicles or agricultural vehicles to extend the time between charging

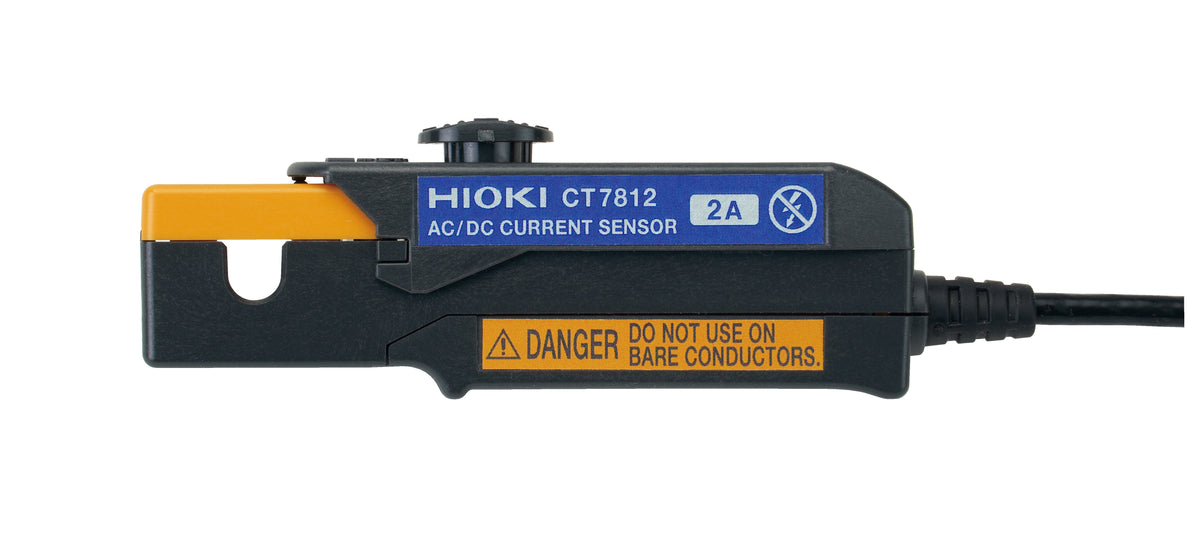

The ultra-small CT7812 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents up to 2 A AC/DC is possible even in the most confined spaces with a basic accuracy of ±0.3% and an impressive resolution of 0.1 mA (200 mA range). It gives development engineers of EVs, electric trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor energy consumption even under the most extreme temperature conditions.

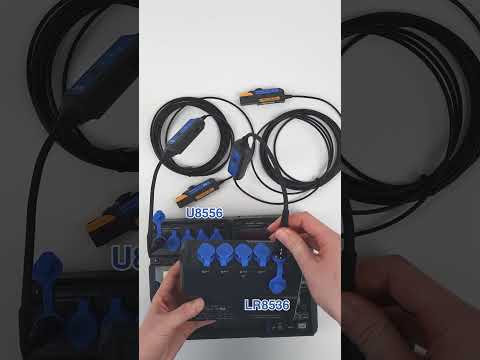

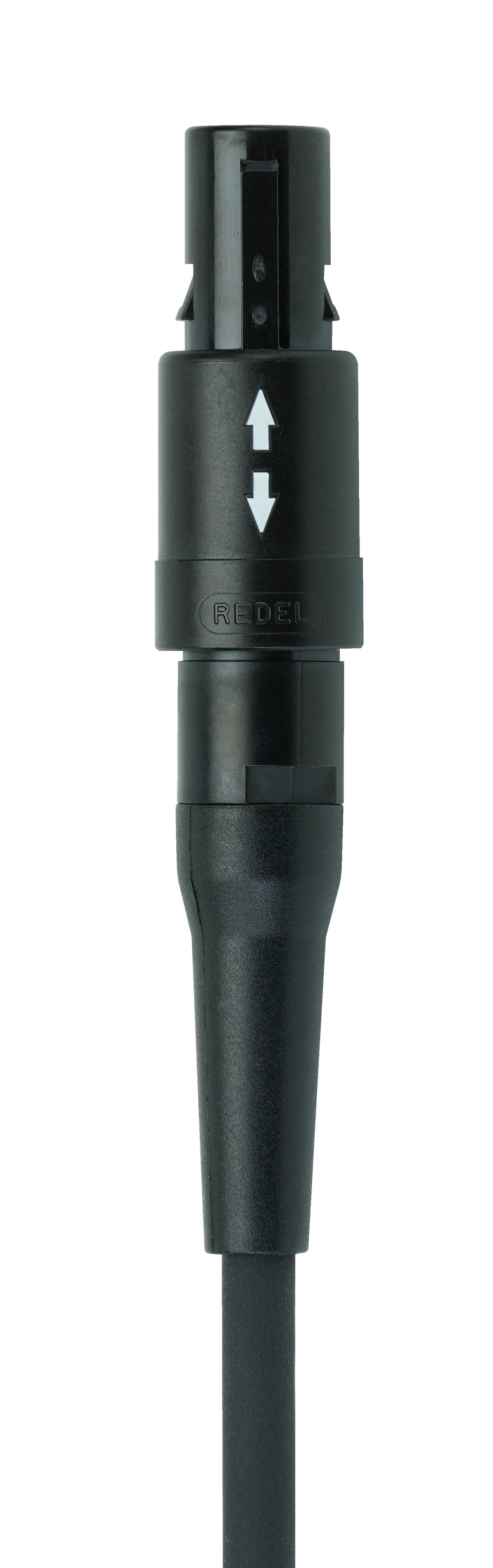

Exclusively designed to be used with the LR8450 Data Logger Series, up to 55 currents can be logged simultaneously on one device at a bandwidth of up to 5 kHz. Applications range from providing detailed energy consumption insight of a vehicle under test to monitoring other complex electrical systems. The CT7812 with its PL14 connector can be used with the LR8450 Data Logger either in combination with the U8556 Plug-in Current Module or alternatively with the LR8536 Wireless Current Module (requires LR8450-01).
• CT7812 in hardcase
• Instruction Manual
• LR8450 Data Logger
• LR8450-01 Data Logger
• U8556 Current Module
• LR8536 Wireless Current Module
• CT7822 AC/DC Current Probe
• L0220 Extension Cable
