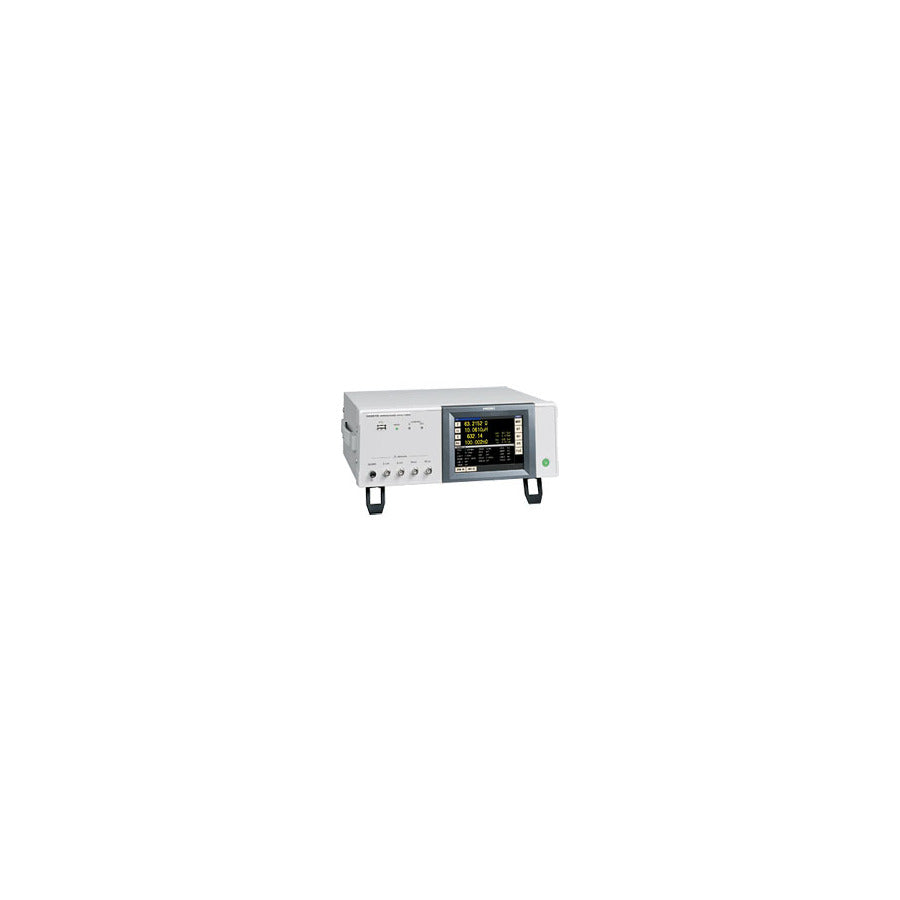

Hioki IM3570 LCR Tester

Regular price £7,868.00
Available on Request
Manufacturers lead time applies
Discounts are only applicable while stocks last.

Need help choosing the right equipment?

Our product specialists can compare models, confirm availability and lead time, and help you find the best option for your application.

Hioki

Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

Inductance, Capacitance, Impedance measurement

  • LCR measurement, DCR measurement, sweep measurement, continuous measurement and high-speed testing achieved with one instrument
  • High-speed testing, achieving maximum speeds of 1.5ms (1 kHz) and 0.5ms (100 kHz) in LCR mode
  • High-accuracy measurements, basic accuracy of Z parameter: ± 0.08%
  • Perfect impedance analyzer for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)
  • Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode
  • 1-Year Warranty
  • Requires measurement probes or test fixtures

With this new IM3570 Impedance Analyzer, an LCR meter and an impedance analyzer capable of measurement frequencies of 4 Hz to 5 MHz and test signal levels of 5 mV to 5 V have been combined into one measuring instrument. Advanced capabilities include LCR measurement with AC signals, resistance measurement with direct current (DCR), and sweep measurement which continuously changes the measurement frequency and measurement level.

The IM3570 facilitates high-speed continuous measurement under different measurement conditions and measurement modes, so inspection lines which up to now have required multiple measuring instruments can be equipped with just one device.

Basic specifications
Measurement modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
Measurement parameters Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurement range 100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z)
Display range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
Basic accuracy Z : ±0.08%rdg. θ: ±0.05°
Measurement frequency 4 Hz to 5 MHz (10 mHz to 100 Hz steps)
Measurement signal level V mode/CV mode (normal mode):
50 mV to 5 Vrms, 1 mVrms steps (up to 1 MHz),
10 mV to 1 Vrms, 1 mVrms steps (over 1.0001 MHz)
CC mode (normal mode):
10 μA to 50 mArms, 10 μArms steps (up to 1 MHz)
10 μA to 10 mArms, 10 μArms steps (over 1.0001 MHz)
Output impedance Normal mode: 100 Ω
Low impedance high accuracy mode: 10 Ω
Display 5.7-inch color TFT, display can be set to ON/OFF
