Chemical Impedance Analyzer, 1 mHz to 200 kHz
Chemical impedance analyzer, 1 mHz to 200 kHz, battery mode with automatic DC bias up to 5 V, frequency sweep and equivalent circuit analysis, ±0.05% basic accuracy, USB and Handler I/O, optional LAN, RS-232C, and GP-IB.
• Measurement frequency: 1 mHz to 200 kHz
• Basic accuracy: ±0.05%
• Battery mode with automatic DC bias up to 5 V
• Frequency sweep and equivalent circuit analysis with Nyquist and Bode plots
• 5.7" color TFT LCD with touch panel
• Electrochemical impedance spectroscopy (EIS) of battery cells, supercapacitors, and other electrochemical devices
• Analysis of charge-transfer resistance, ion conductivity, and diffusion behavior in electrochemical systems
• Equivalent circuit modeling of electrochemical processes and materials
• Incoming inspection and screening of battery cells using comparator and BIN functions

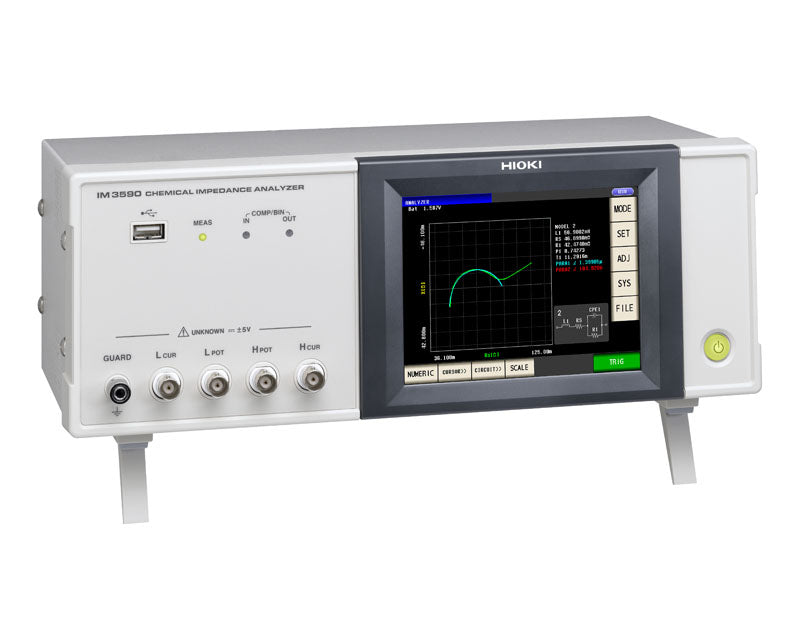

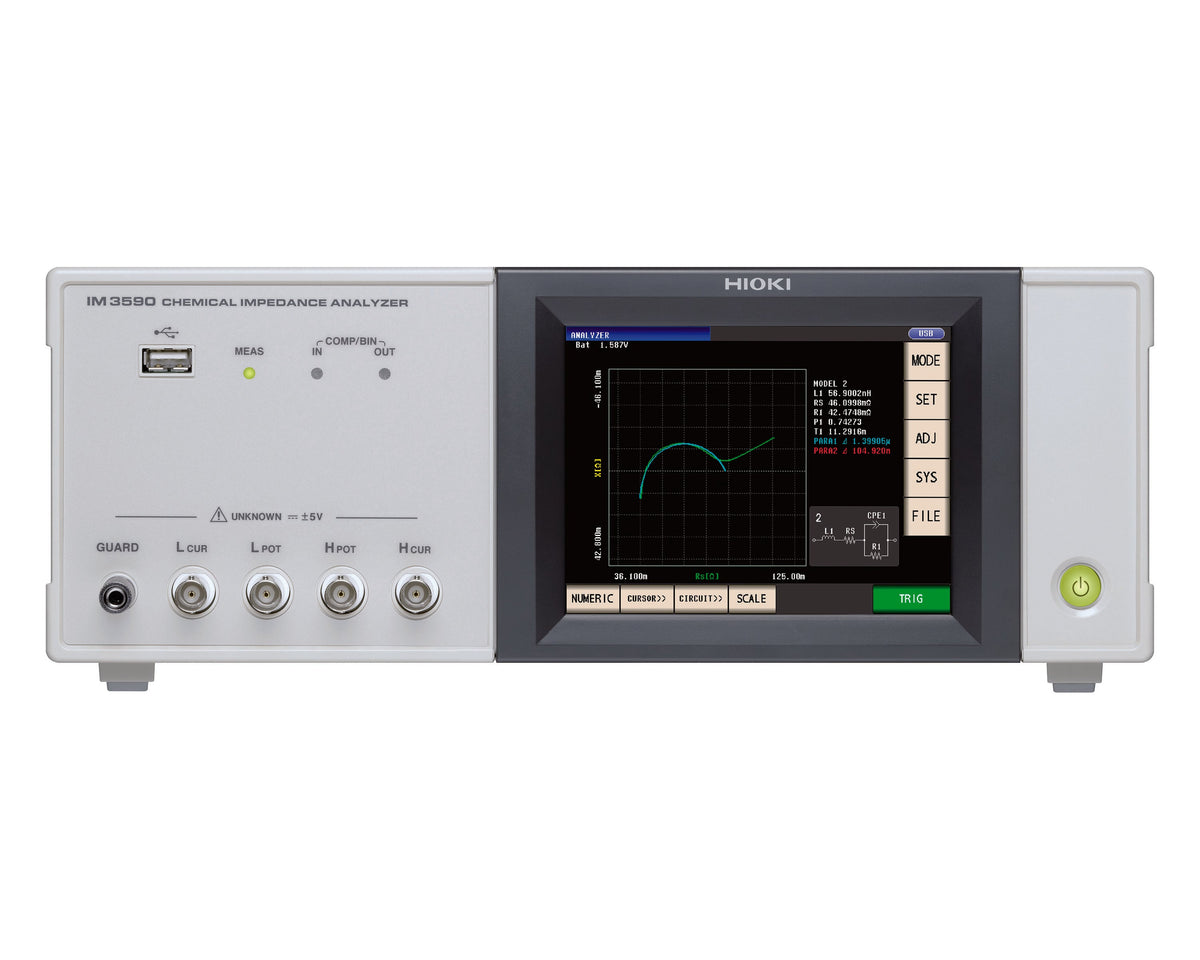

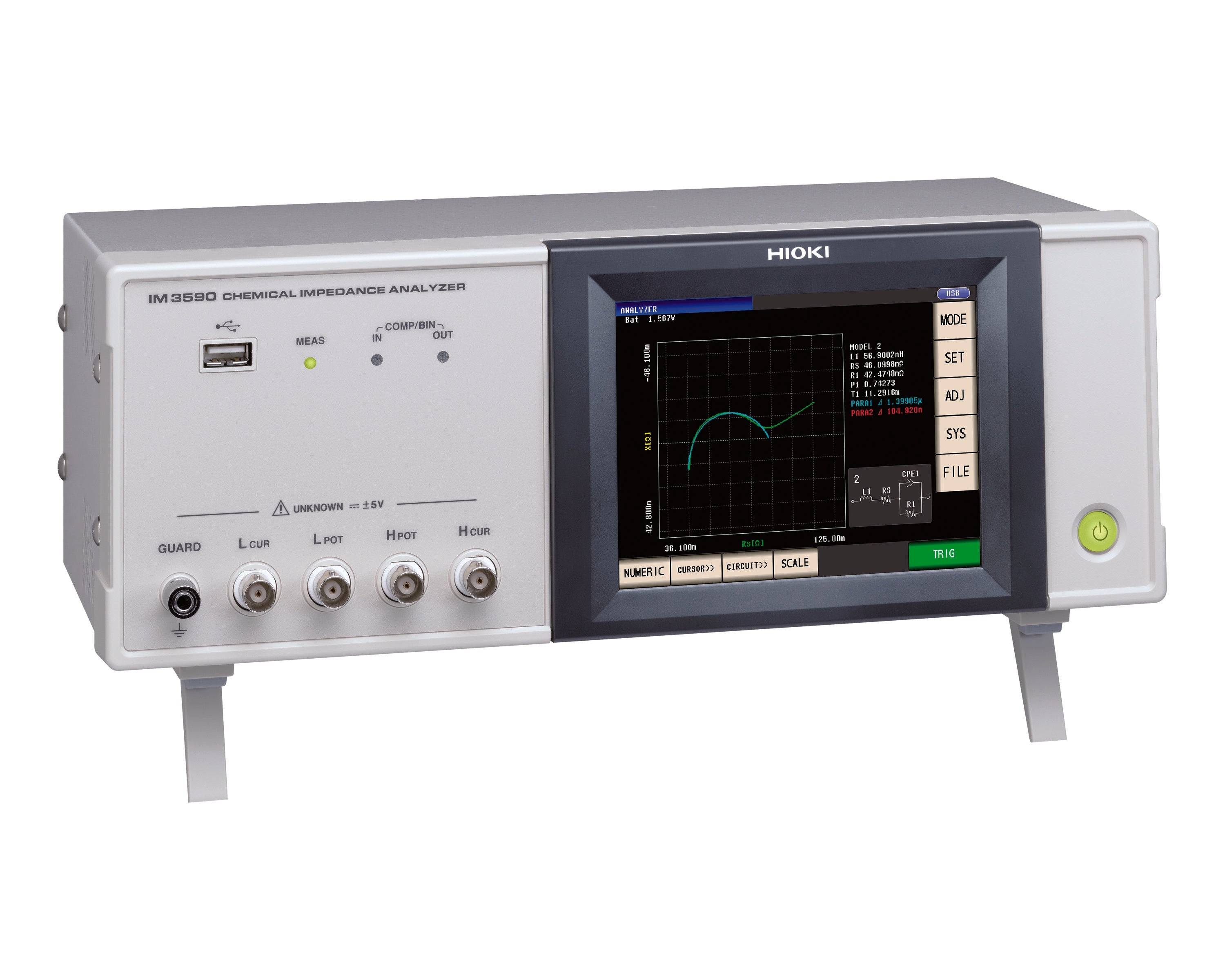

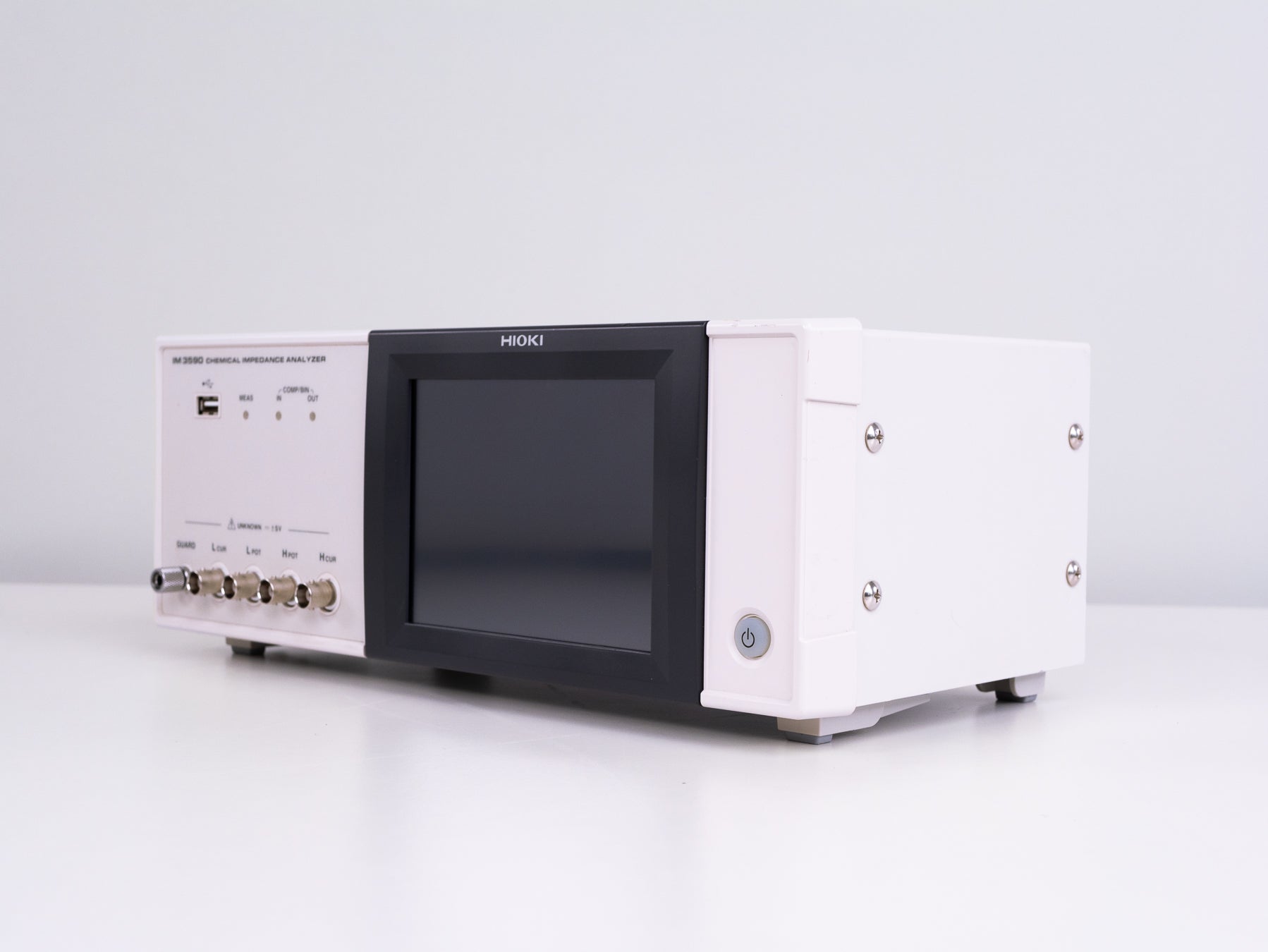

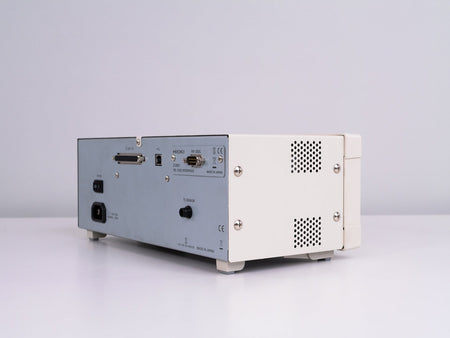

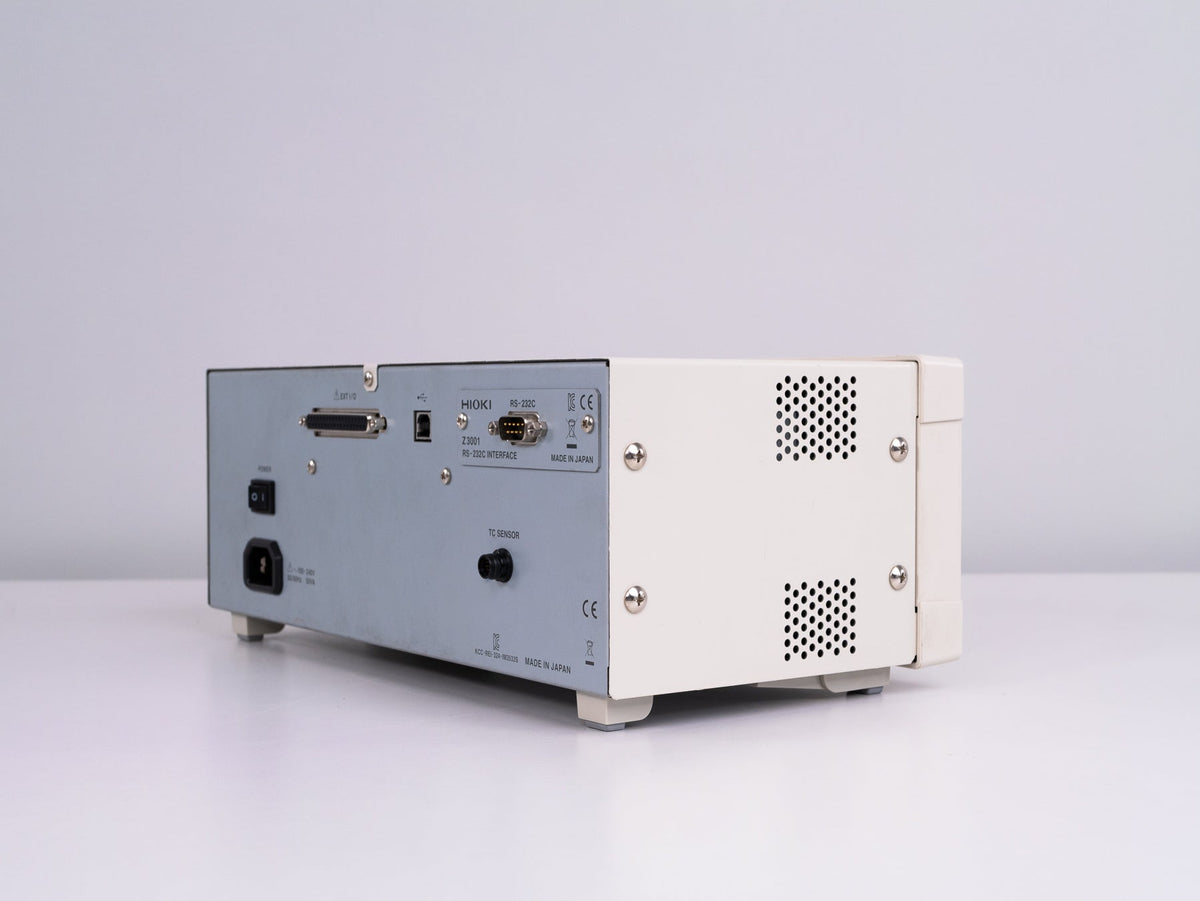

The HIOKI IM3590 is a Chemical Impedance Analyzer designed for the evaluation of electrochemical devices such as battery cells and supercapacitors. It combines wide-range frequency sweep measurements from 1 mHz to 200 kHz with equivalent circuit analysis, supporting detailed impedance characterization of electrochemical components.
A dedicated battery mode enables direct electrochemical impedance spectroscopy (EIS) of battery cells. In this mode, the instrument applies an automatic DC bias that is adjusted to the cell voltage, establishing the electrical potential conditions required for impedance analysis of batteries.
This allows frequency-dependent analysis of charge-transfer resistance, ion conductivity, and diffusion behavior under realistic operating conditions. The IM3590 supports electrochemical impedance measurements in the impedance range from approximately 100 mΩ to 10 Ω, making it suitable for the evaluation of battery cells with internal resistances above approximately 10 mΩ.

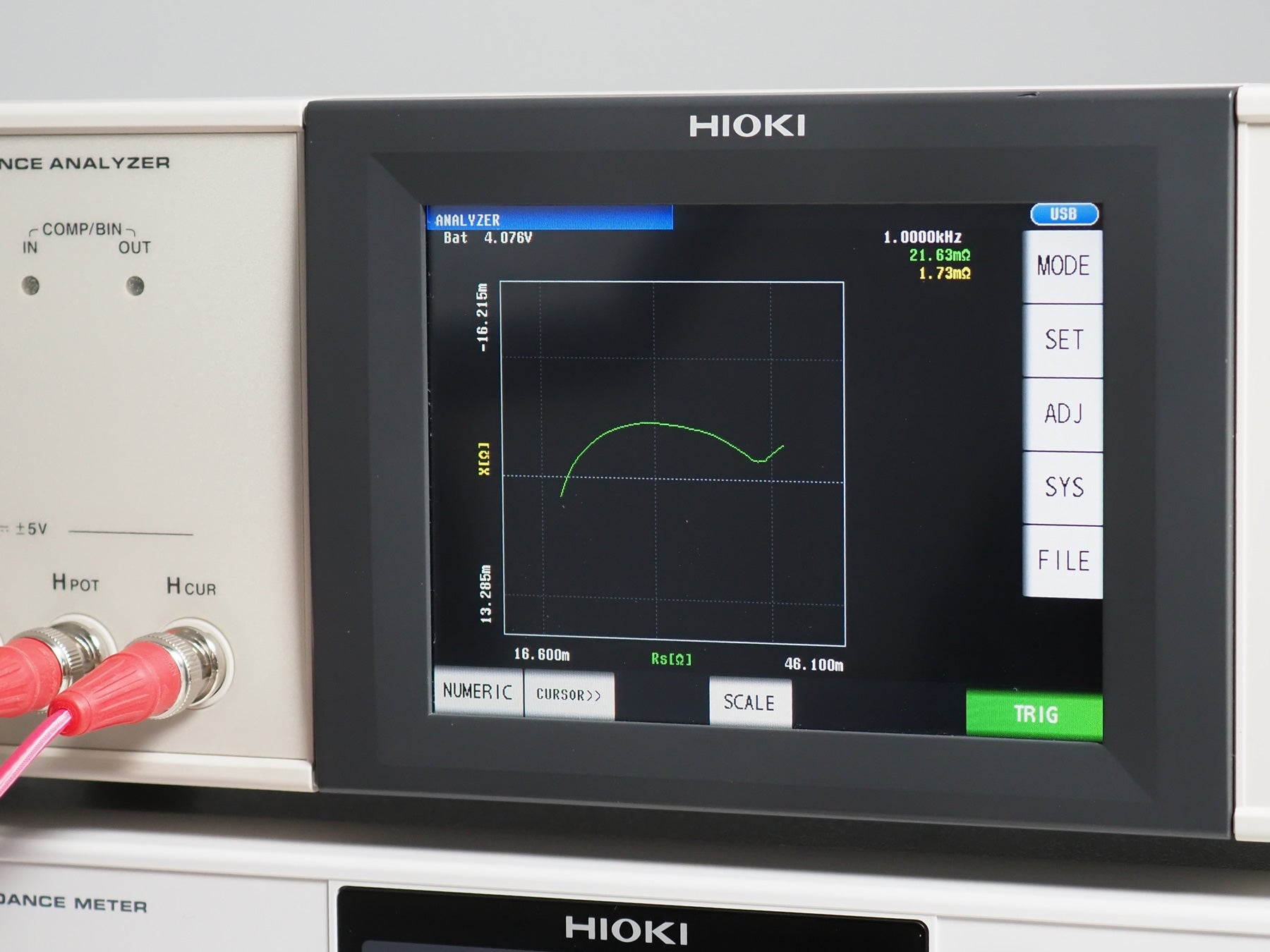

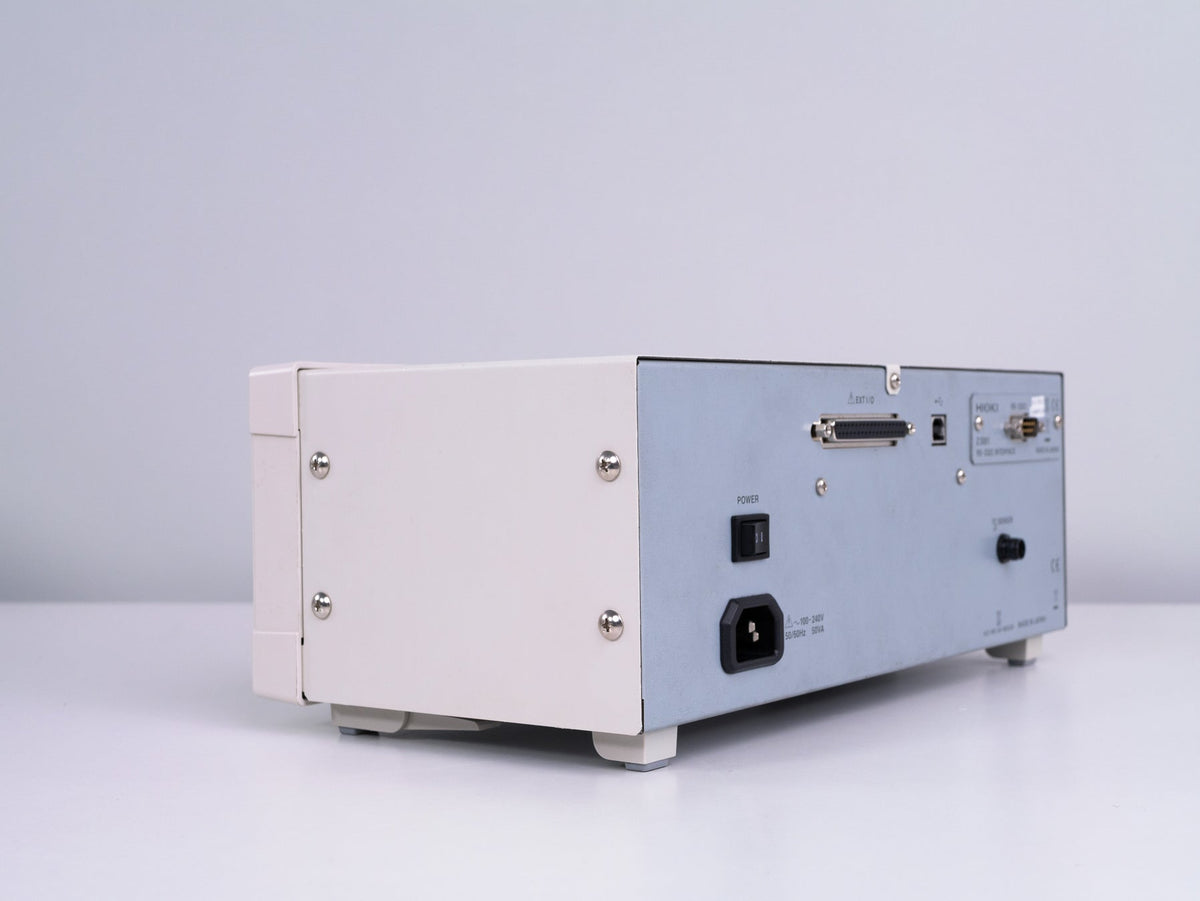

The IM3590 supports frequency sweep measurements over the full measurement range with up to 800 configurable frequency points. This enables detailed frequency-dependent impedance analysis and provides the basis for Nyquist and Bode evaluations of electrochemical systems.
For circuit modeling, the instrument offers multiple electrochemical equivalent circuit models, including unipolar and polar configurations, as well as standard LCR component models. These models allow parameters such as electrolyte resistance, charge-transfer resistance, double-layer capacitance, constant phase elements, and inductance to be extracted directly from sweep data.

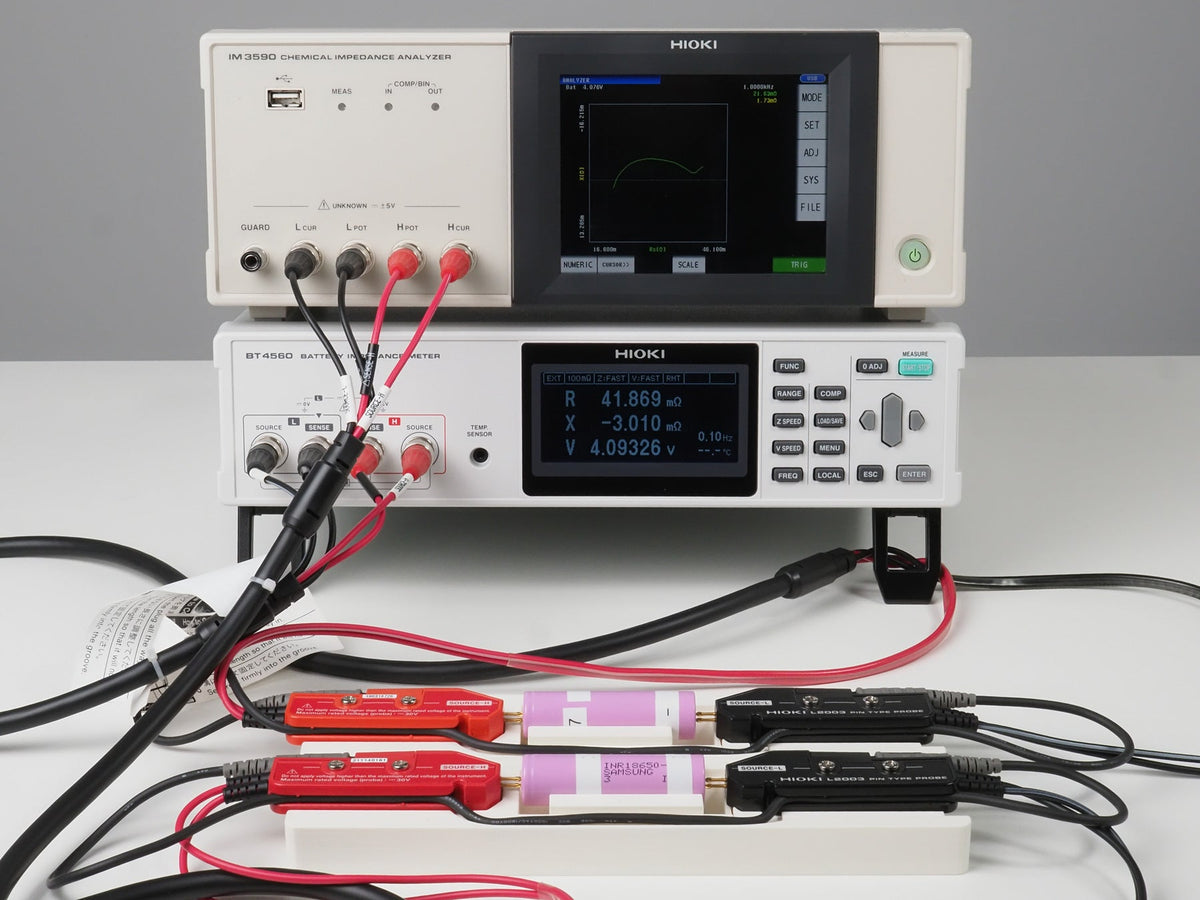

For frequency sweep measurements and equivalent circuit analysis, the IM3590 provides a measurement speed of up to 2 ms, depending on the measurement frequency, with a basic accuracy of ±0.05%.
Test signal voltage and current can be set from 5 mV to 5 V and from 10 μA to 100 mA. When used with the optional 9478 Sheath Type Temperature Probe, temperature-dependent impedance measurements are supported, allowing impedance characteristics and equivalent circuit parameters to be evaluated as a function of temperature.
The instrument also features comparator and BIN functions for automated pass/fail classification, useful in incoming inspection or production screening of cells and capacitors.

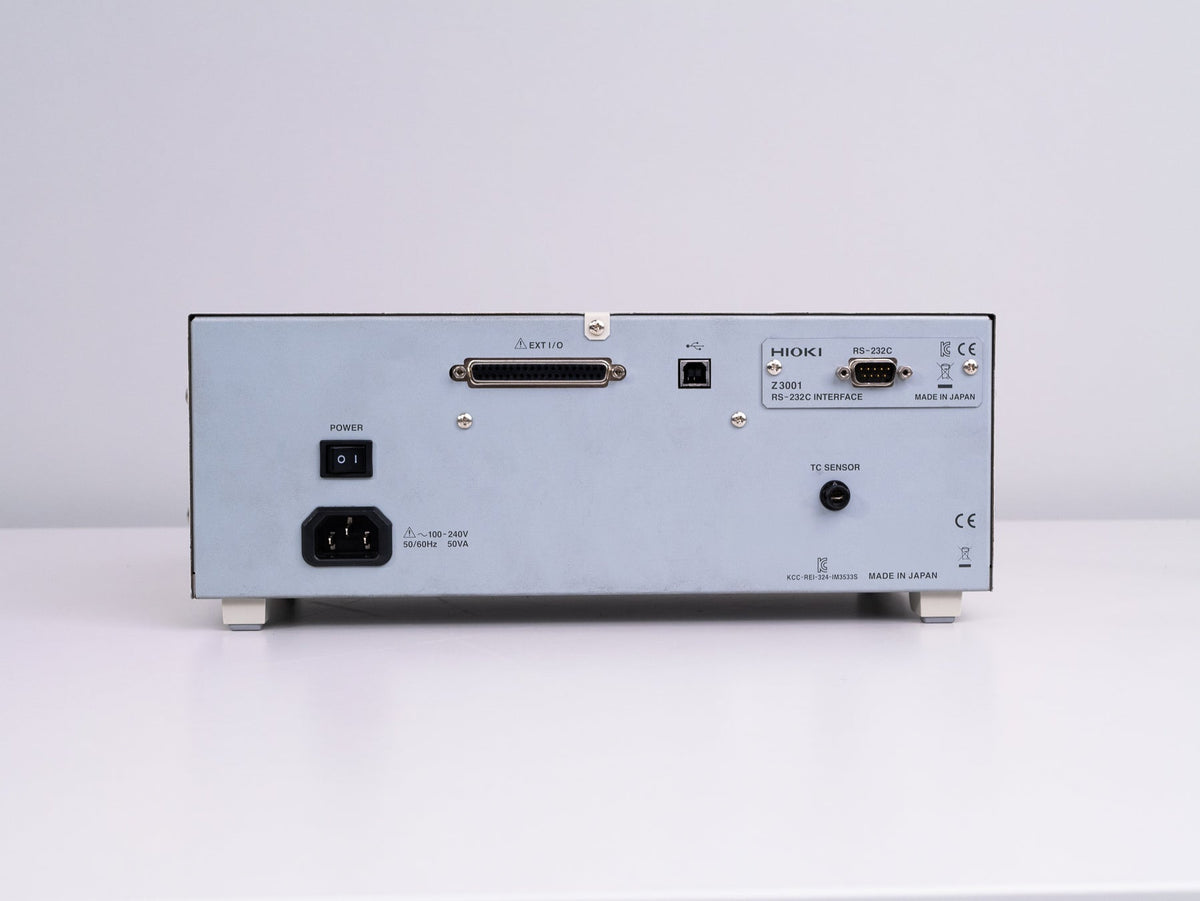

Interfaces include USB as standard, with LAN, RS-232C, and GP-IB available as options. The 5.7-inch color TFT touchscreen provides intuitive operation and clear visualization of parameters and plots.
Designed and manufactured in Japan, the IM3590 reflects HIOKI’s focus on long-term measurement stability in daily engineering and laboratory use.
• IM3590 Chemical Impedance Analyzer
• Power Cord
• Instruction Manual
• BT4560-50 Battery Impedance Meter
• BT4560-60 Battery Impedance Meter
• IM3570 Impedance Analyzer
• IM3533 LCR Meter
• 9140-10 4-Terminal Probe
• 9500-10 4-Terminal Probe
• L2000 4-Terminal Probe
• L2001 Pincher Probe
• 9261-10 Test Fixture
• 9262 Test Fixture
• 9263 SMD Test Fixture
• IM9100 SMD Test Fixture
• IM9110 SMD Test Fixture
• 9268-10 DC Bias Voltage Unit
• 9269-10 DC Bias Current Unit
• 9478 Sheath Type Temperature Probe
• Z3000 GP-IB Interface
• Z3001 RS-232C Interface
• Z3002 LAN Interface
