SKU: 30283.1 | MPN: IM7587-01
New

Hioki IM7587-01 Impedance Analyzer, 1 MHz-3 GHz, 100 mOhms to 5 kOhms, w/1m Cable, IM7580 Series

£25,208.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Hioki

Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

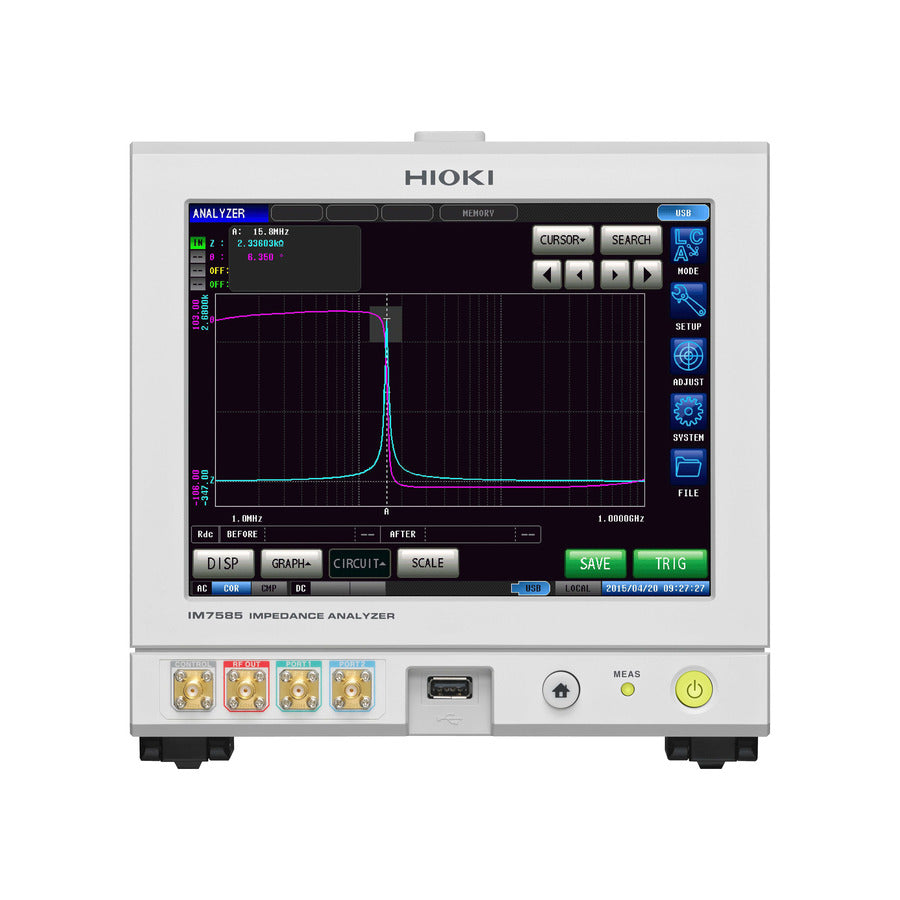

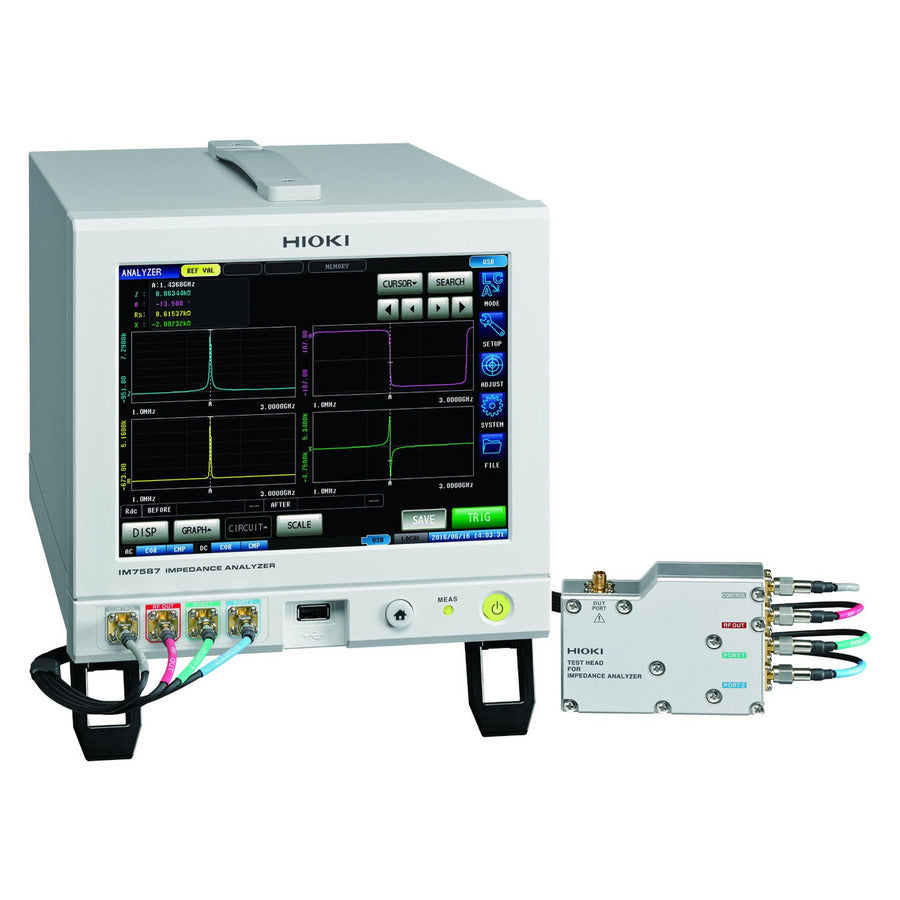

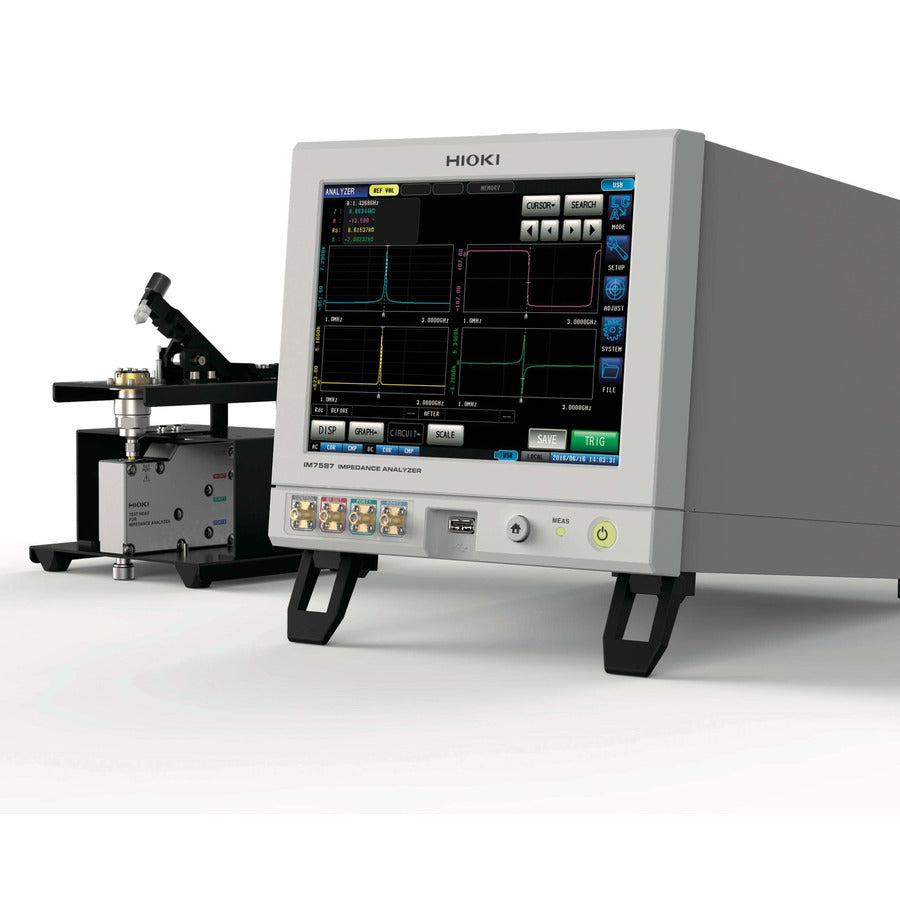

The IM7587 Impedance Analyzer offers a top measurement time of 0.5ms over a 1MHz to 3GHz frequency range and superior stability, making it ideal for R&D as well as high volume production of ferrite chip beads and chip inductors.

Key Features

  • Measurement frequency 1 MHz to 3 GHz (100 kHz setting resolution)
  • Measurement range
    • L: 0.0053nH to 0.795mH
    • C: 0.011pF to 1.59uF
  • Fastest test speed of 0.5 msec
  • 0.07% measured value variability (when measuring at 1GHz)
  • +-0.65% rdg. basic accuracy
  • Measurement parameters Z, Y, Phase Angle, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D, Q
  • Measurable range 100 megohms to 5 kilohms
  • Measurement modes - LCR mode & Analyzer mode
  • Half-rack size body and palm-sized test head
  • Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
  • Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode
  • Basic Specifications (Accuracy Guaranteed For 1 Year, Post-Adjustment Accuracy Guaranteed For 1 Year)
  • Interfaces EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
  • Display 8.4-inch color TFT with touch screen
  • Power supply 100 to 240 V AC, 50/60 Hz, 70 VA max.

Accessories

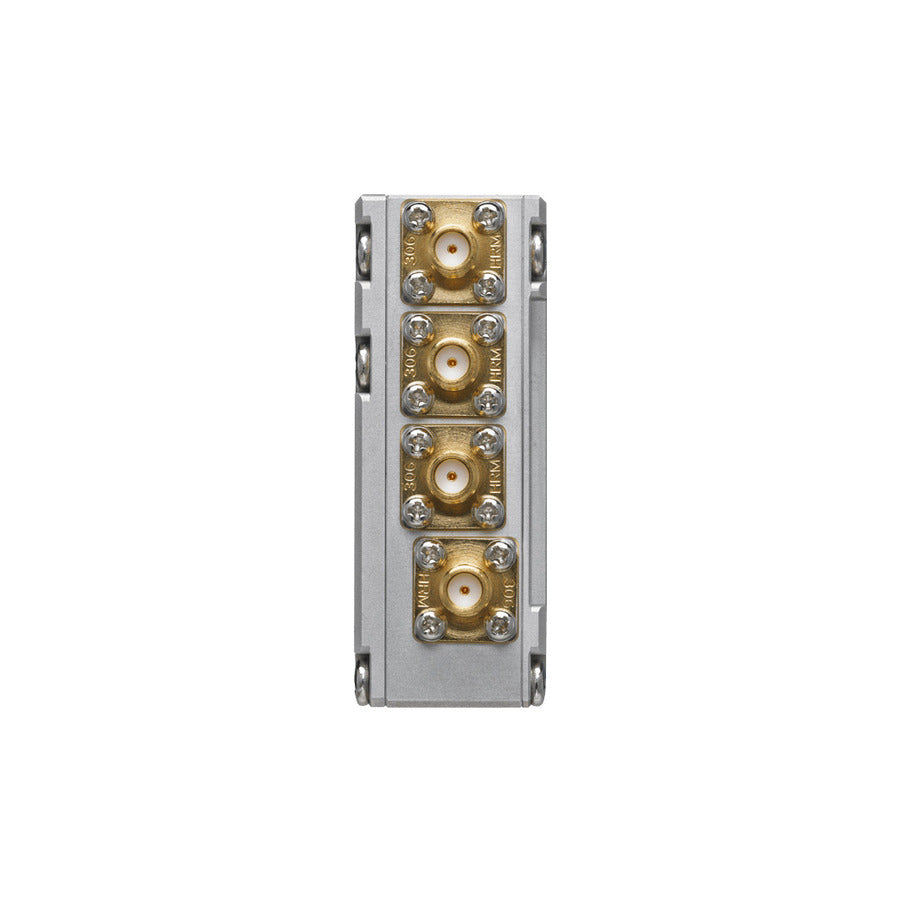

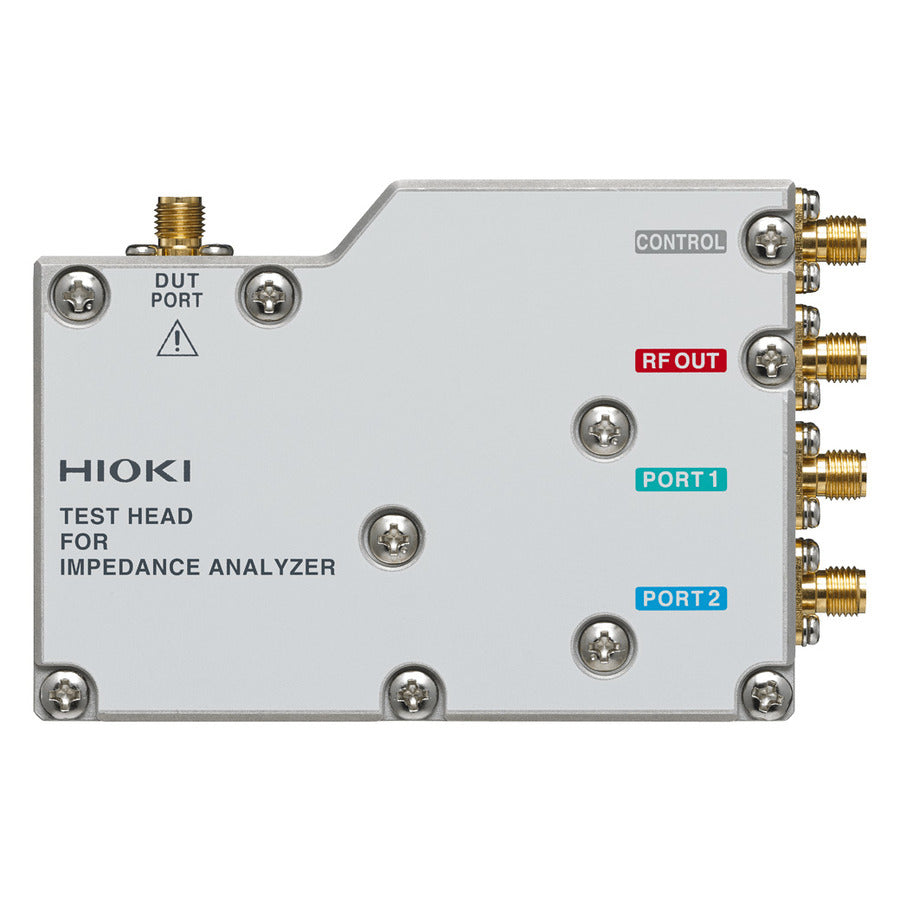

  • Test head
  • Connection cable
    • IM7587-01 Connection cable 1 m is bundled
    • IM7587-02 Connection cable 2 m is bundled
  • Instruction manual
  • LCR application disc (Communications user manual)
  • Power cord
