Hioki is a leading manufacturer of electrical measuring instruments and test equipment, providing precision solutions for power analysis, battery testing and industrial maintenance. Its portfolio includes digital multimeters, clamp meters, power analysers, battery testers, data loggers and insulation testers. Trusted by engineers, electricians and researchers worldwide, Hioki products support applications in energy, automotive, electronics manufacturing and electrical maintenance.

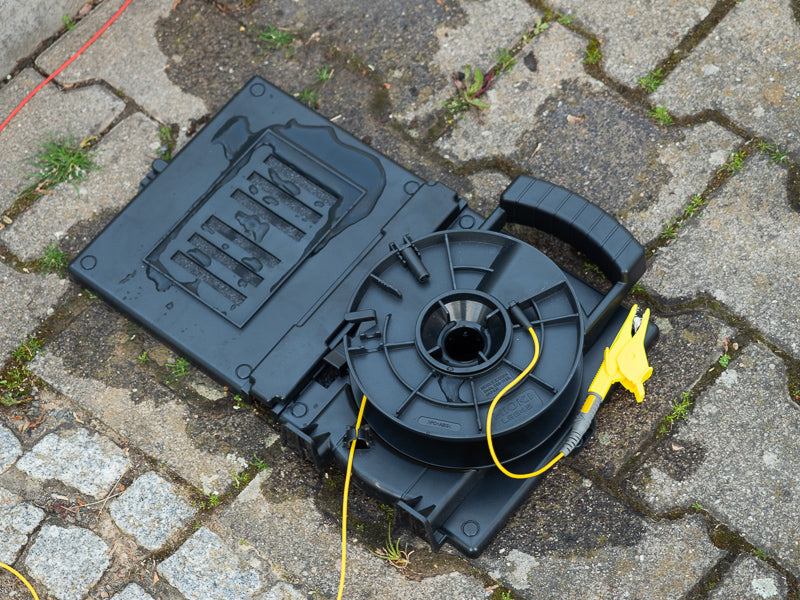

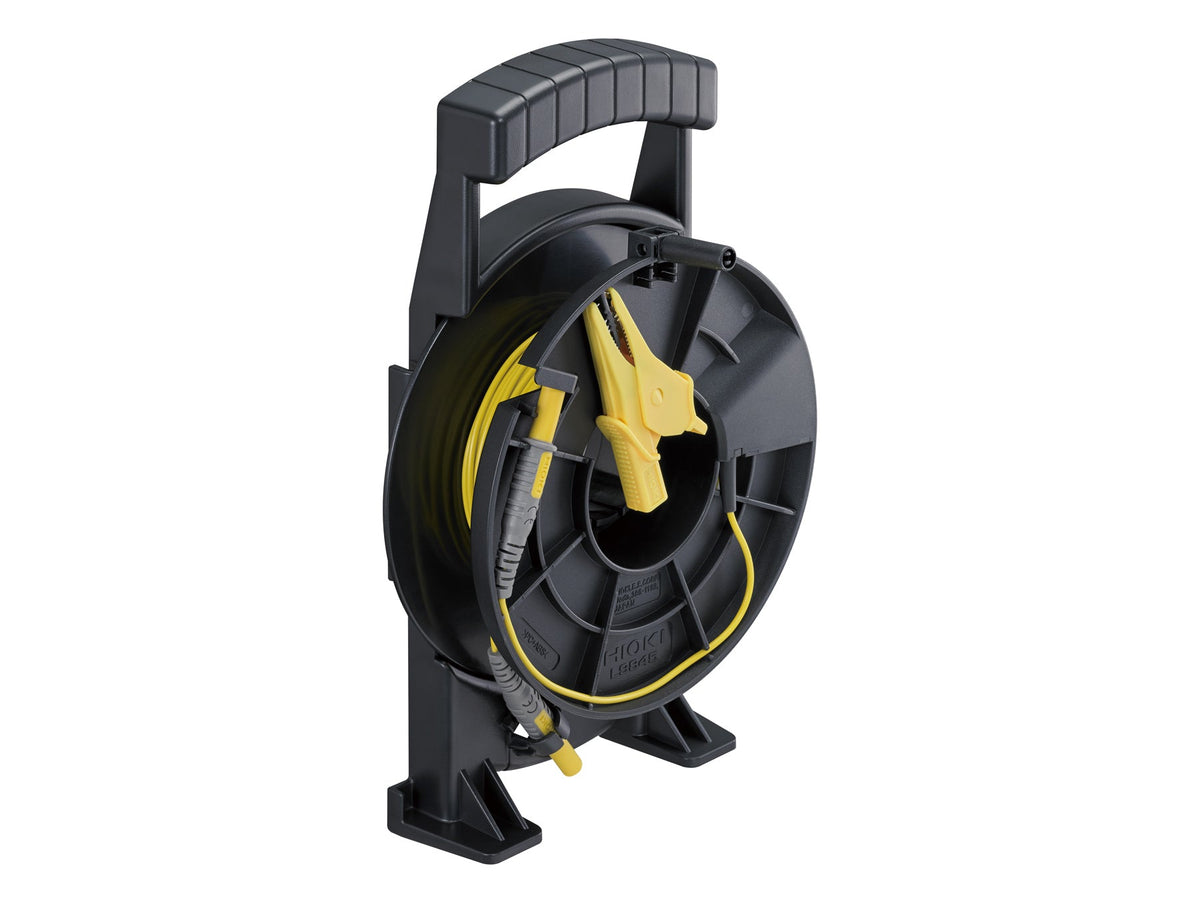

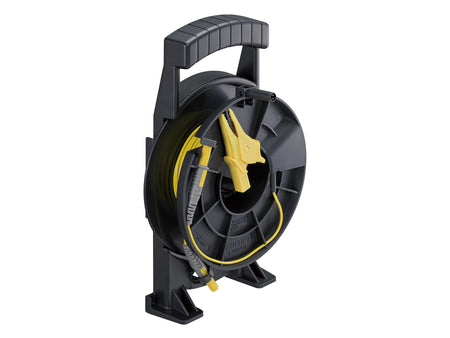

Test Lead Cable Reel, Yellow, 25 m
Test lead cable reel, yellow, 25 m, approx. 28 × 18 × 7 cm, 4 mm safety connectors on both ends, removable crocodile clip included, compatible with Earth Nets Module L9846.
The HIOKI L9845-31 is a 25 m yellow test lead supplied on a cable reel. In earth resistance measurement setups, it is typically used as an auxiliary lead. With the included removable crocodile clip, the lead can be used both with auxiliary earth spikes and with the L9846 Earth Nets Module.
With a lead length of 25 m, the L9845-31 is well suited to earth measurement applications that require greater distances between the test object and auxiliary electrodes. The cable reel measures approximately 28 × 18 × 7 cm (H × W × D), providing a compact and practical solution for transport and field use.

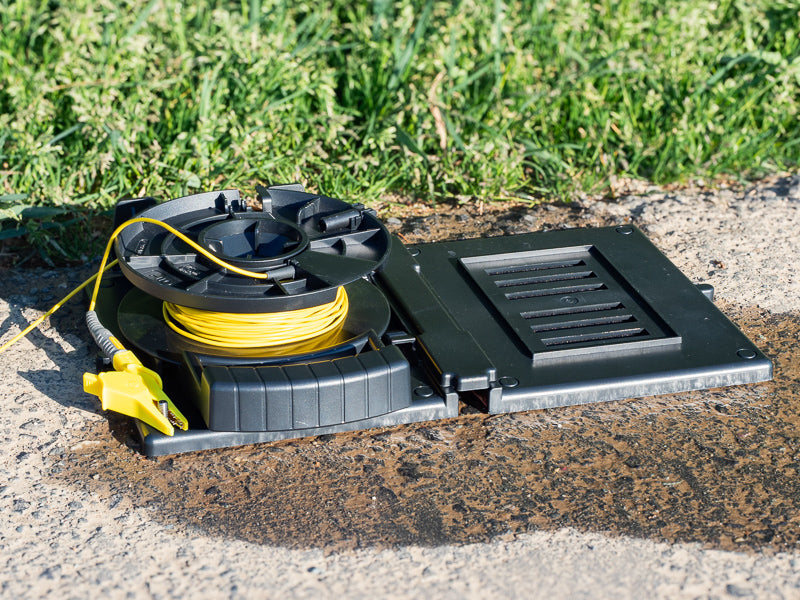

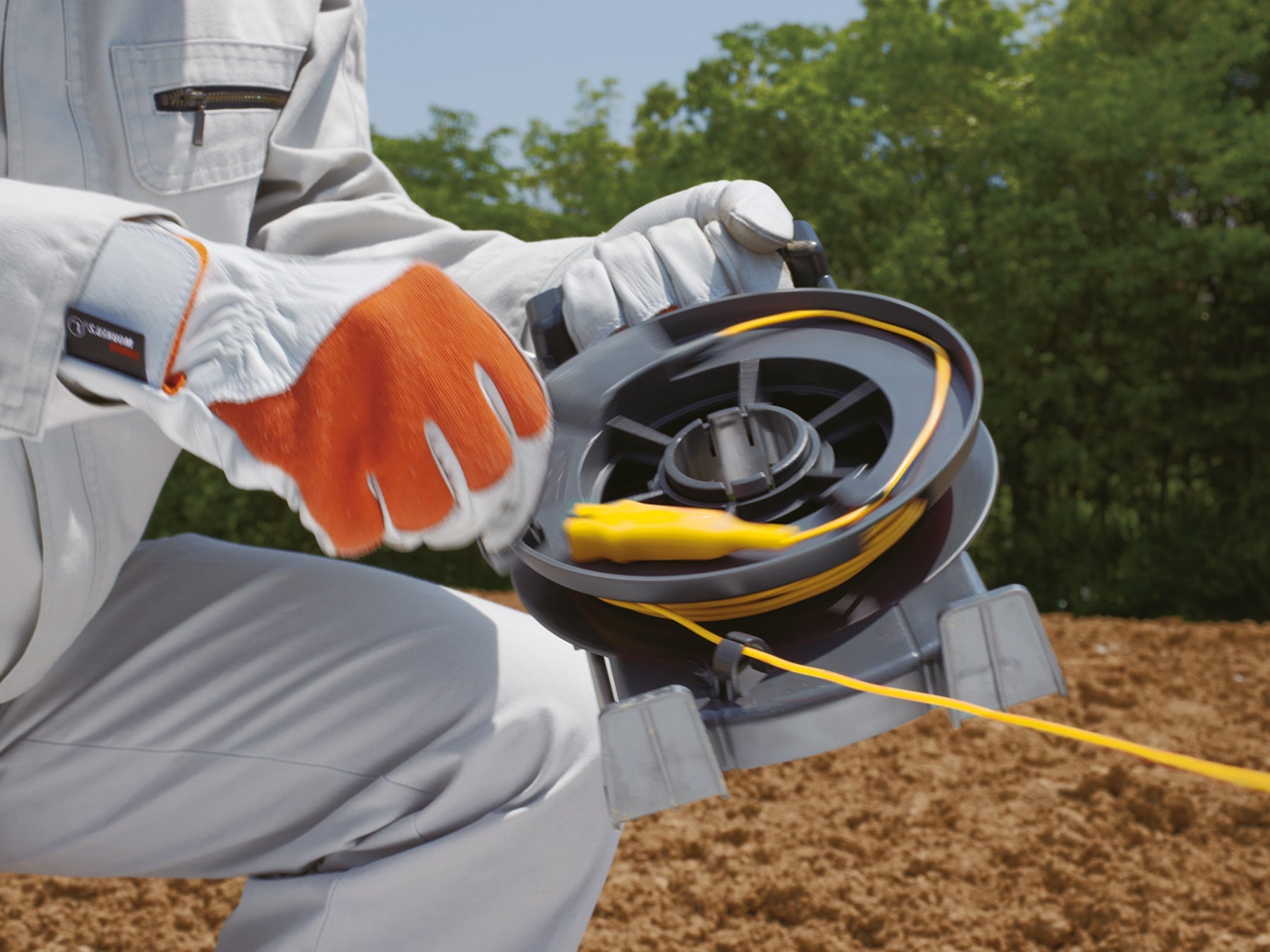

Both ends of the lead are equipped with 4 mm safety connectors. The removable crocodile clip can be attached directly to the reel for convenient storage and transport. A foldable winding handle simplifies rewinding the cable after measurements have been completed.

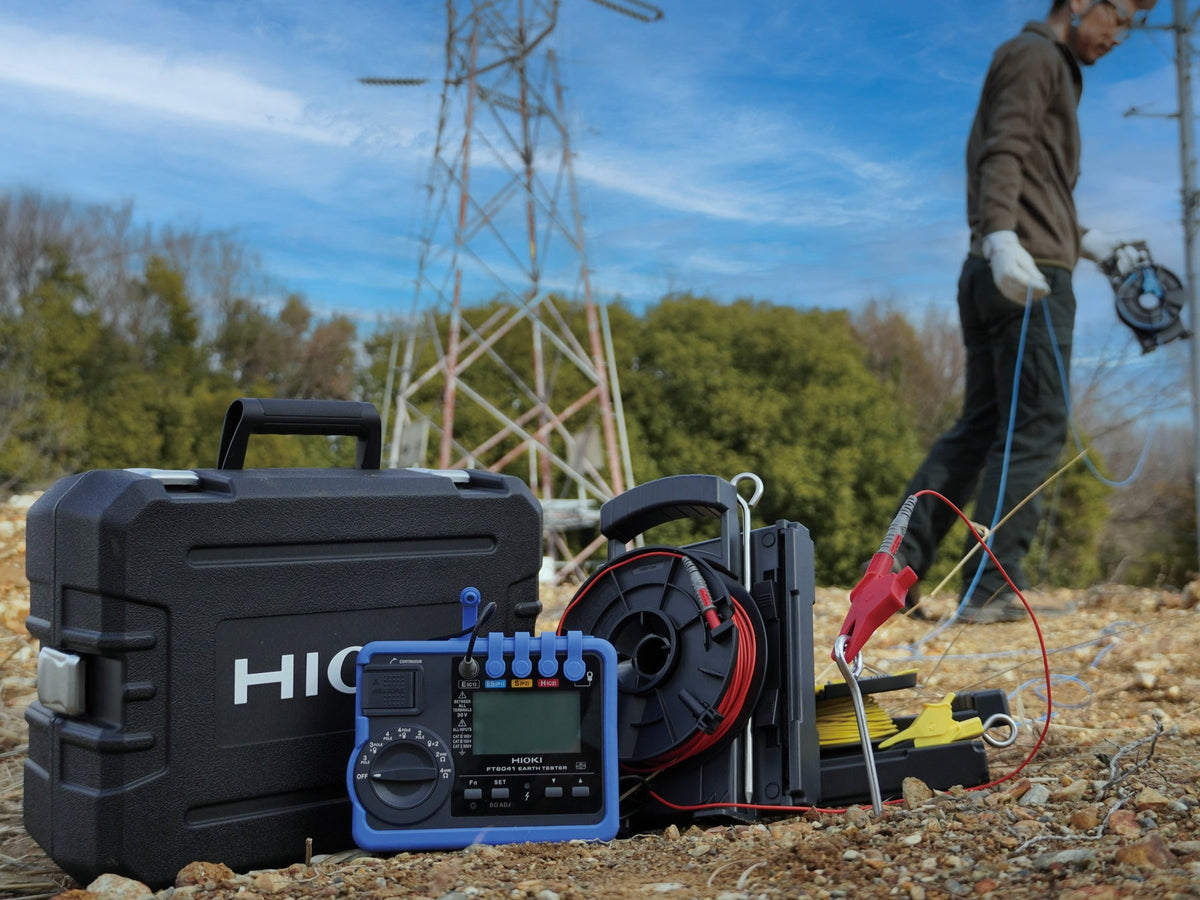

Optional holders for L9840 Auxiliary Earth Spikes are available, allowing the test lead and earth spike to be carried together as a single assembly. The L9845-31 is supplied as a standard accessory with the FT6041 and FT6041-91 Earth Testers.
With a lead resistance of approximately 100 mΩ per meter, the L9845-31 is designed for earth resistance measurements where lead resistance has minimal influence on the measurement result. It is not intended for precision low-resistance measurements.
• L9845-31 Test Lead Reel
• Removable Crocodile Clip
• FT6041 Earth Tester
• FT6041-91 Earth Tester Set
• FT6031-50 Earth Tester
• L9846 Earth Nets Module
• L9845-52 Test Lead Reel, red, 50 m
• L9845-33 Test Lead Reel, blue, 25 m
• L9843-52 Test Lead, red, 50 m
• L9843-51 Test Lead, yellow, 50 m
• L9842-22 Test Lead Reel, red, 20 m
• L9842-11 Test Lead Reel, yellow, 10 m
• 9050 Earth Nets
• L9840 Auxiliary Earth Spikes
• C0209 Tote Bag
