2-channel Bluetooth logger for current sensors
Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation
• 2 channels for BNC current sensors
• 500 mA - 2000 A AC
• Bluetooth data transfer
• Internal memory: Up to 500 000 data points per channel
• Power supply with AA alkaline batteries, AC adapter, external DC power supply
• Precise current measurement with HIOKI current sensors
• High-accuracy long-term current logging in confined spaces where wireless data acquisition and transfer is required

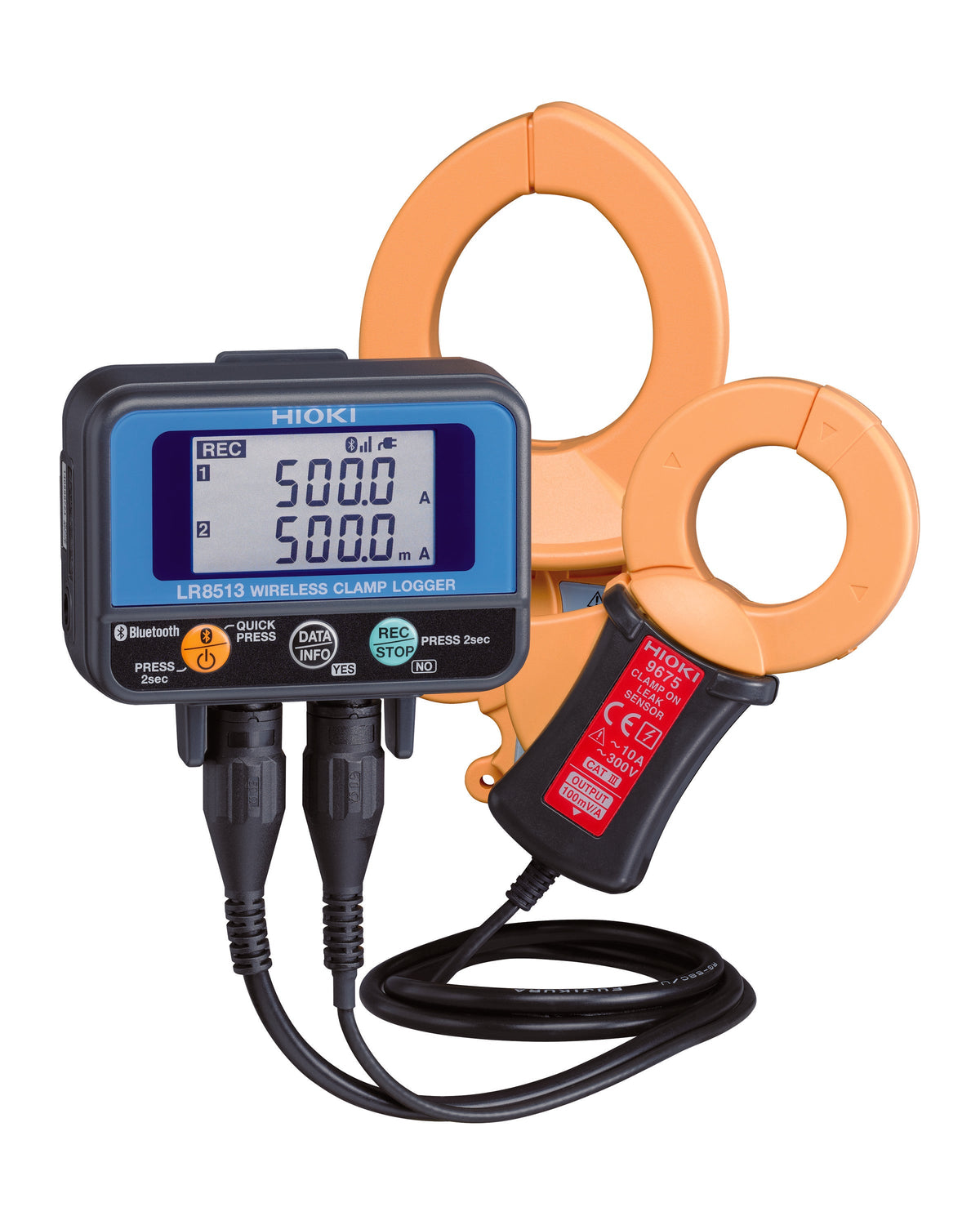

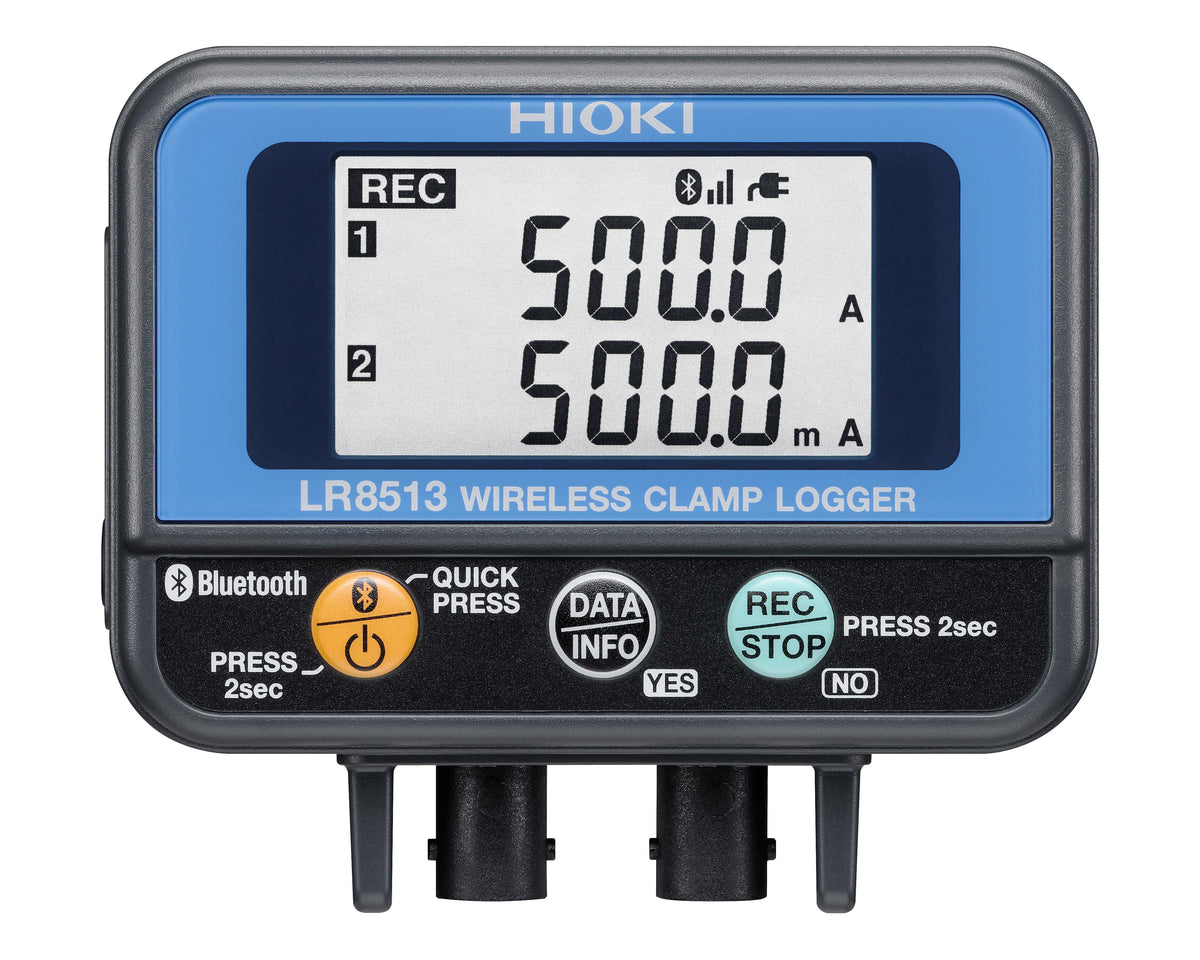

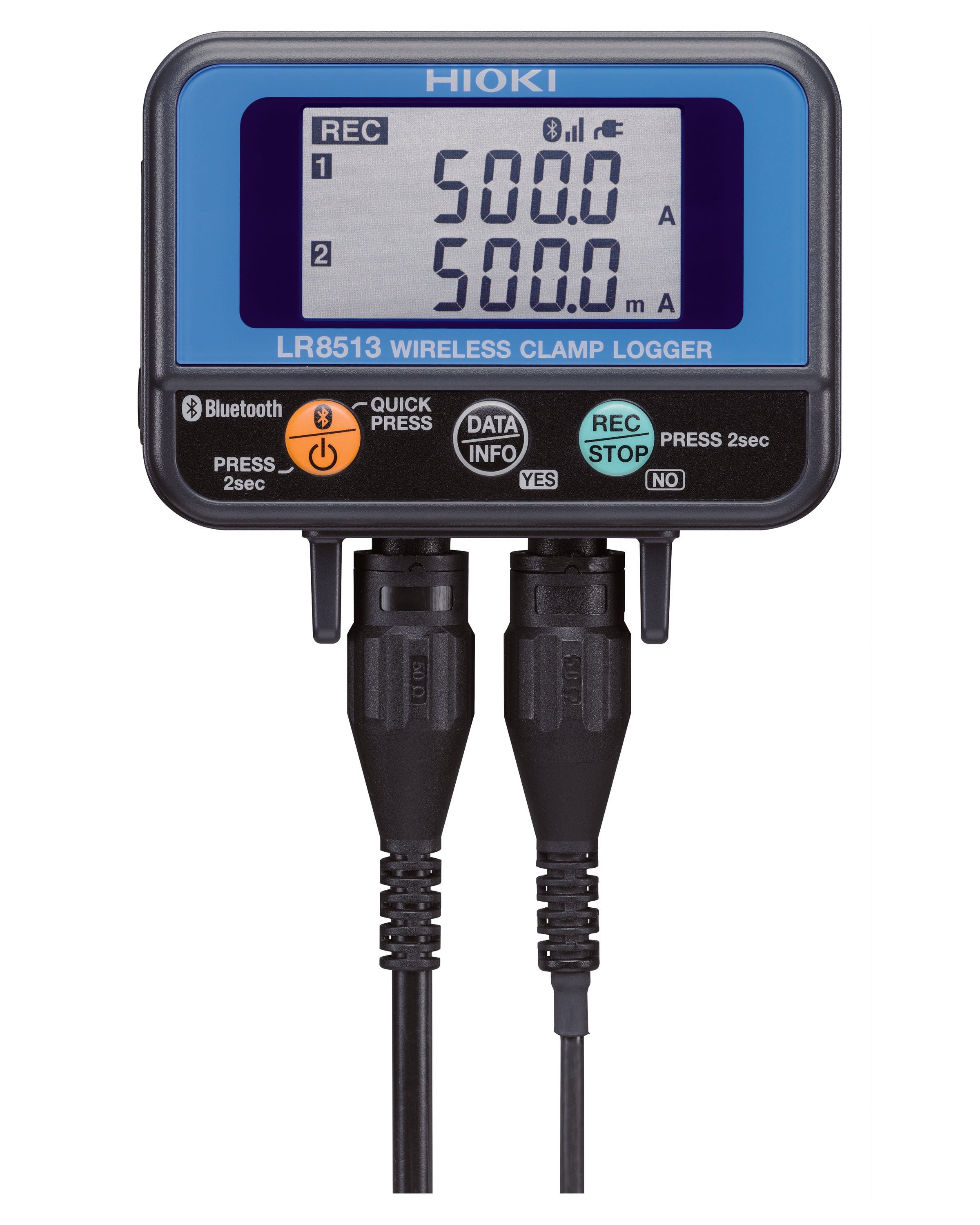

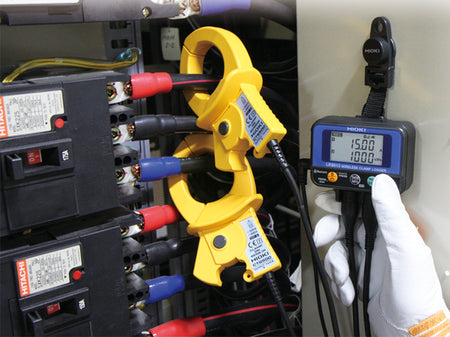

The compact LR8513 Wireless Clamp Logger is a 2-channel data logger to record AC load and leak currents. A wide variety of current sensors can be connected to the logger’s BNC inputs, allowing current measurements from 500 mA to 2000 A AC. The logger fits neatly inside distribution panels, enabling seamless external monitoring. Power measurements can be easily conducted by setting the voltage and power factor.
Thanks to the Bluetooth® connectivity data can be easily downloaded to tablets or computers. Up to 500,000 data points per channel can be stored in the internal memory, making it ideal for long-term monitoring and analysis.
The LR8513 can be powered with an optional AC adapter, AA alkaline batteries or with an external DC power supply.
• LR8513 Wireless Clamp Logger
• CD-R (instruction manual, Logger Utility, Wireless Logger Collector)
• Measurement guide
• Caution for using radio waves
• AA alkaline batteries (LR6)
• Z2003 AC Adapter
• CT6500 Clamp on Sensor
• 9669 Clamp on Sensor
• 9695-02 Clamp on Sensor
• 9657-10 Clamp on Leak Sensor
• 9675 Clamp on Leak Sensor
• CT7044 AC Flexible Current Sensor
• CT7045 AC Flexible Current Sensor
• CT7045 AC Flexible Current Sensor
• CT7731 AC/DC Auto-Zero Current Clamp
• CT7736 AC/DC Auto-Zero Current Clamp
• CT7742 AC/DC Auto-Zero Current Clamp
• CT7290 Display Unit
• L9095 Output Cord
• 9212 Connection Cable
• Z5020 Magnetic Strap
• SF1000 Logger Utility
