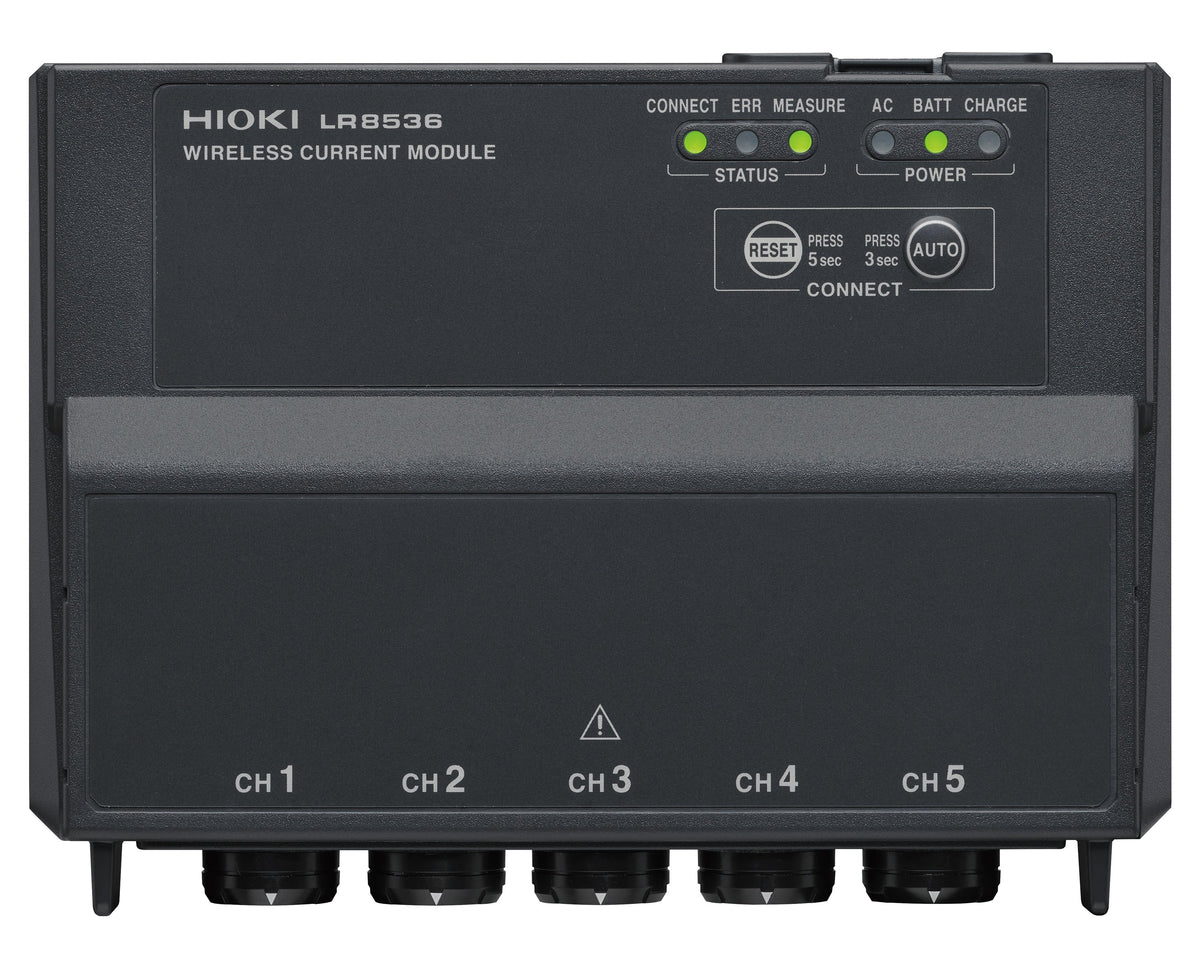

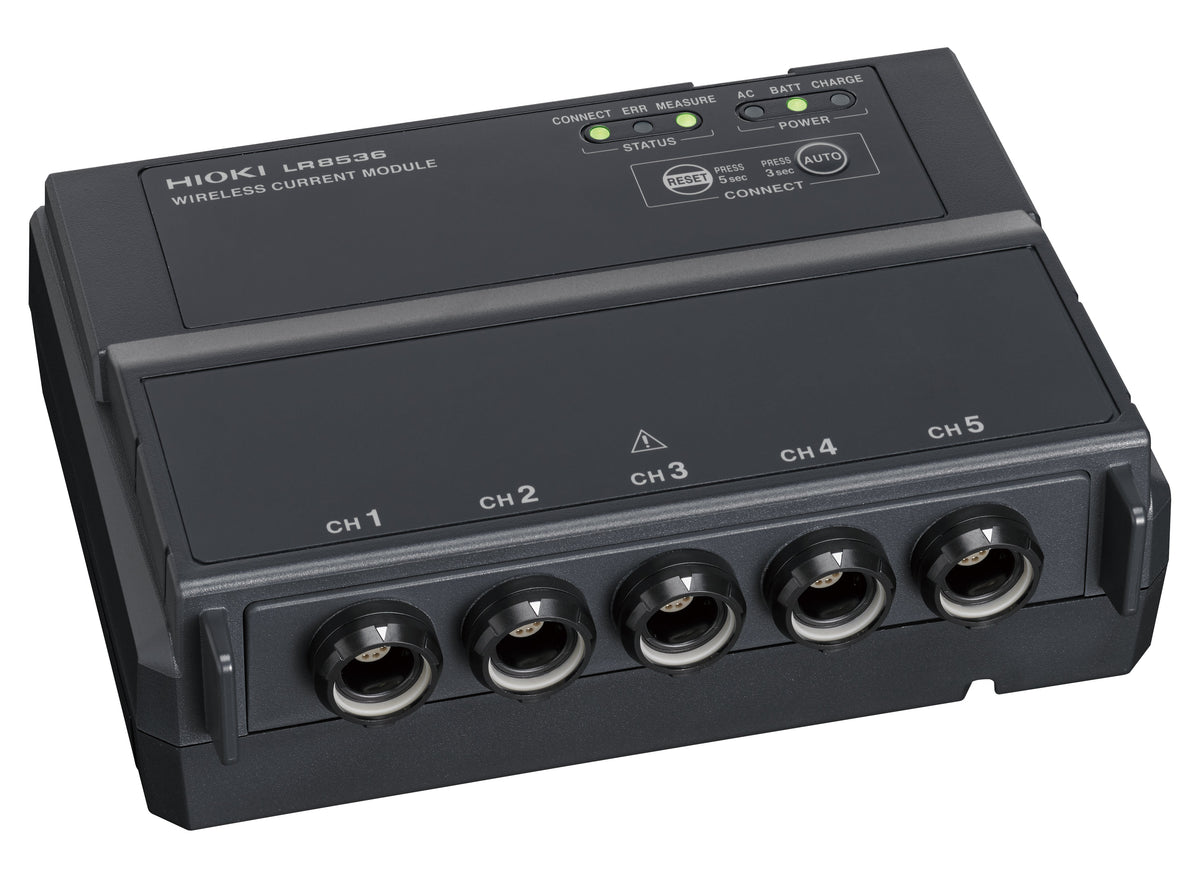

The LR8536 Wireless Current Module is the interface between up to 5 clamp-on current sensors and the LR8450-01 Data Logger. Each current sensor input has its own signal conditioning which makes it possible to have individual scaling and simultaneous 1 ms recording. The module is exclusively designed to add current logging functionality to the highly versatile LR8450-01 Data Logger. Up to seven LR8536 modules can be connected wirelessly to a single LR8450-01 Data Logger.
The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new LR8536 wireless current module.
