30-channel voltage / temperature module for LR810x Data Logger Series
Voltage/temperature module for LR8101 and LR8102 Data Logger, isolation to earth 600 VDC CATII, 30 channels, max. update interval 10 ms, for 19” rack systems
• Maximum channel input voltage: 100 VDC
• Channel to channel isolation: 300 VDC
• Isolation to earth: 600 VDC, CAT II
• 15 channels per module, up to 10 modules per logger
• Max. 5 ms update interval
• Easy installation without any cables via click-to-connect of modules
• Charge/discharge testing during cell formation and ageing
• Charge/discharge testing during development of battery modules and battery packs
• Development and optimization of Battery Management Systems (BMS)
• Development and optimization of Thermal Management Systems of batteries

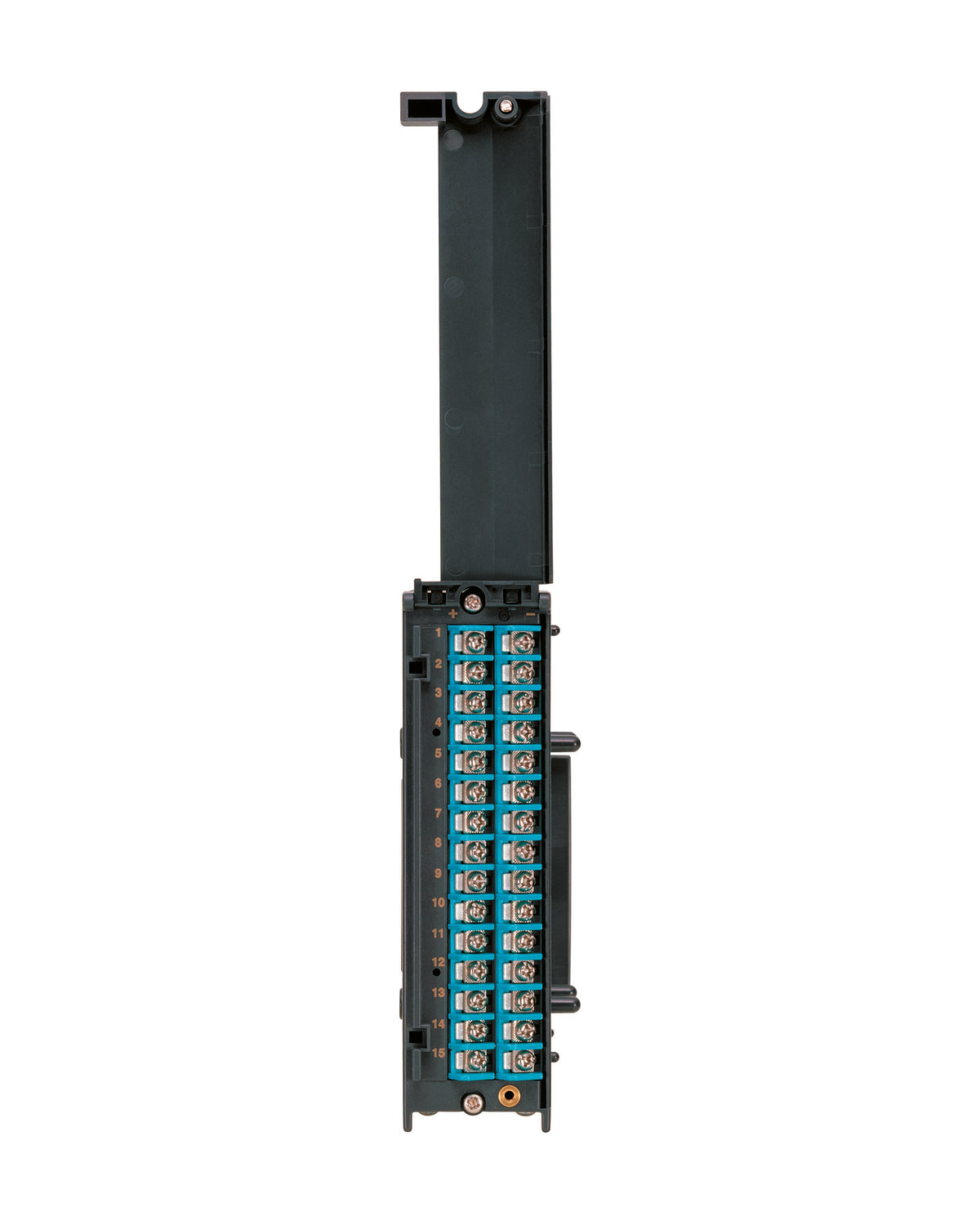

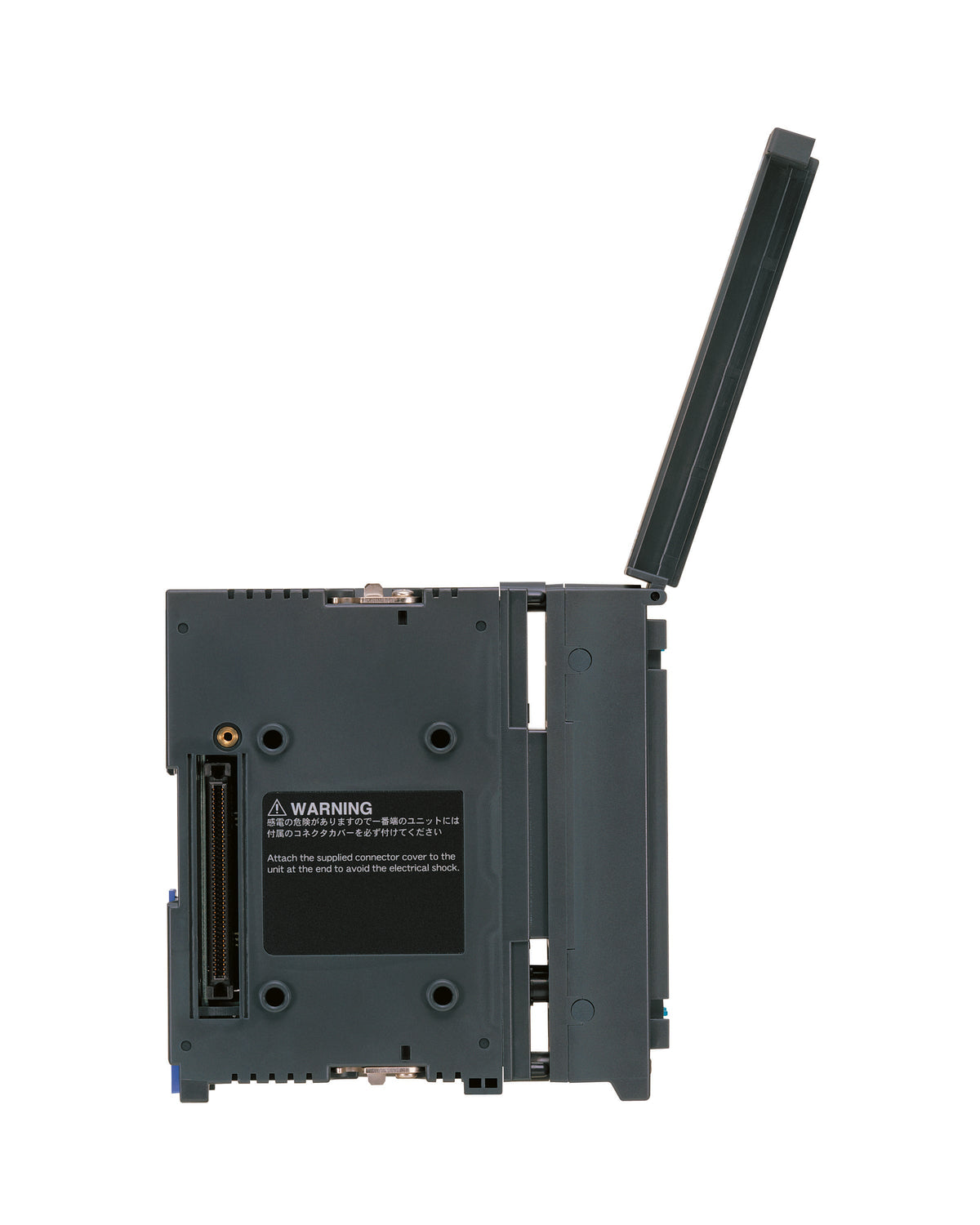

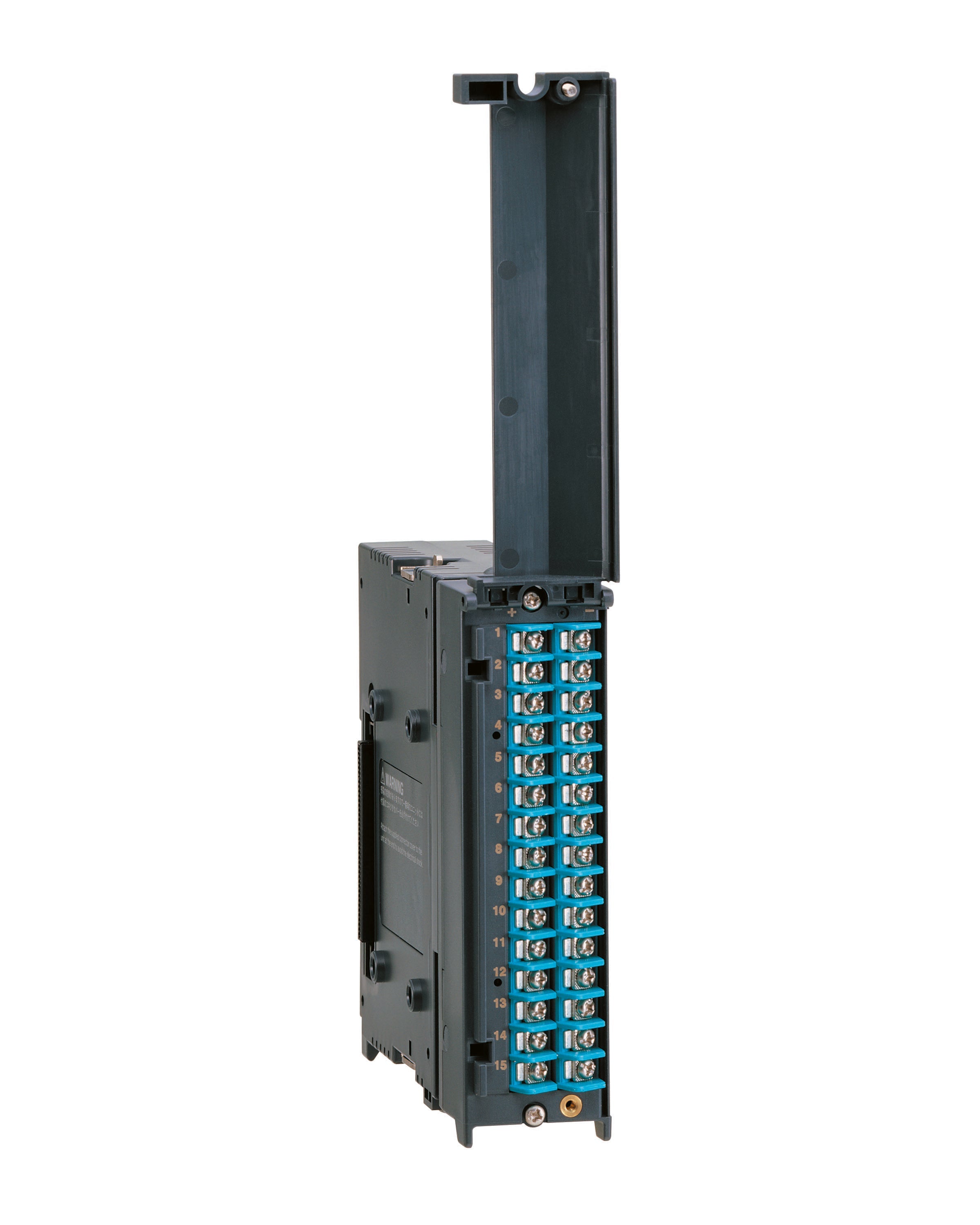

The M7102 module is specifically designed for the LR810x Data Logger Series (LR8101, LR8102). Each channel input can be configured to measure voltage or temperature (with thermocouples) in accordance with the test requirements. With an isolation to earth of up to 600 VDC and 30 channels the module is ideal for applications requiring multi-channel measurement, especially in battery testing.
Up to ten M7102 can be connected to one LR810X Data Logger providing in total up 300 channels per unit. The sampling rate depends on the number of channels, with a maximum recording interval of 5 ms achievable. The click-to-connect module installation eliminates the cabling between modules and provides a clean, time-efficient setup.
