High Voltage Divider for DC Measurement up to CAT III 2000 V
High voltage divider for safe DC measurement up to CAT III 2000 V or CAT IV 1000 V, division ratio 1/10. Designed to look and feel like compact test leads with standard 4 mm output connectors
• DC measurements up to CAT III 2000 V
• DC measurements up to CAT IV 1000 V
• Division ratio 1/10
• Measurement of today’s 1500 V PV strings
• Testing of high-voltage EV batteries and DC bus circuits
• Maintenance and troubleshooting in industrial high-voltage environments

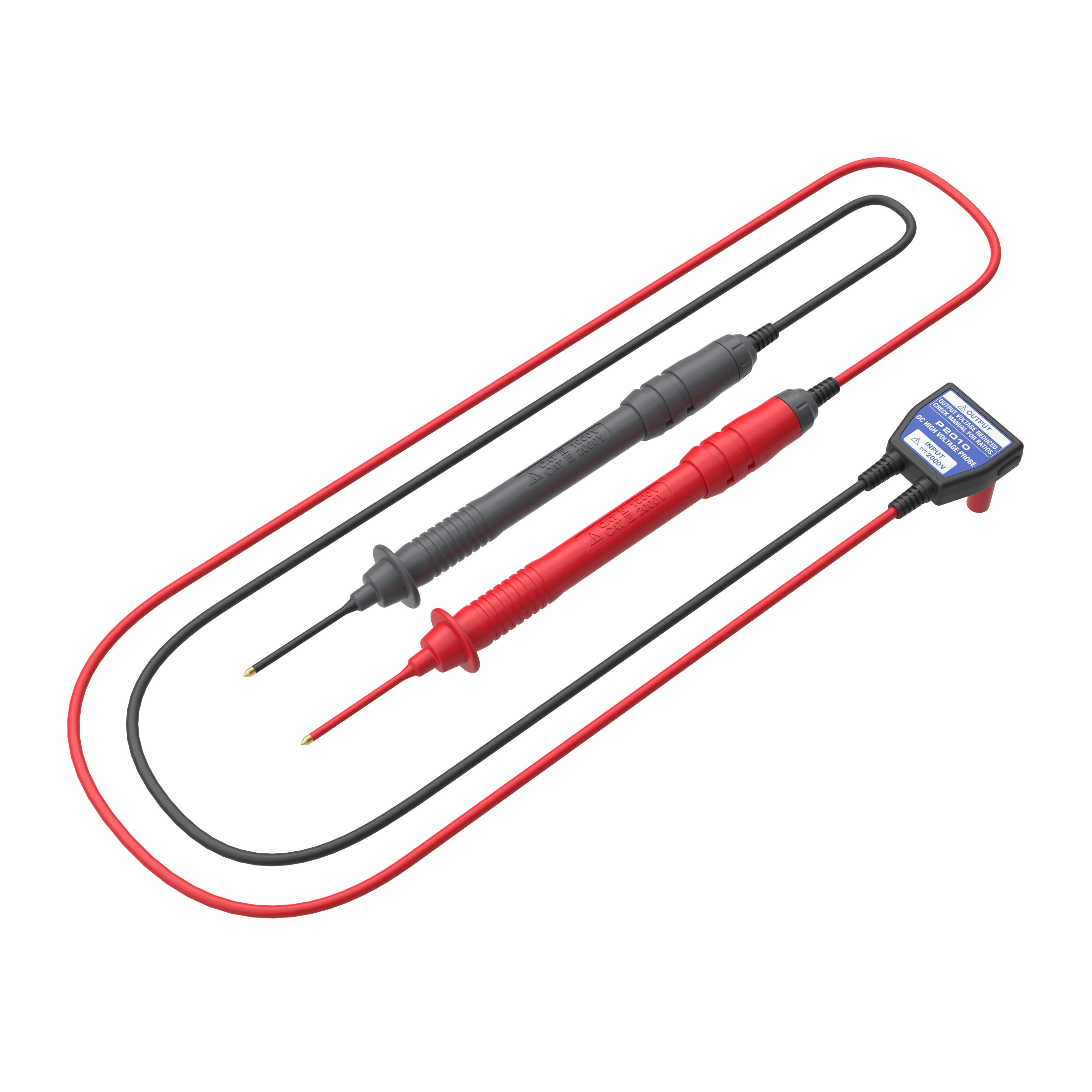

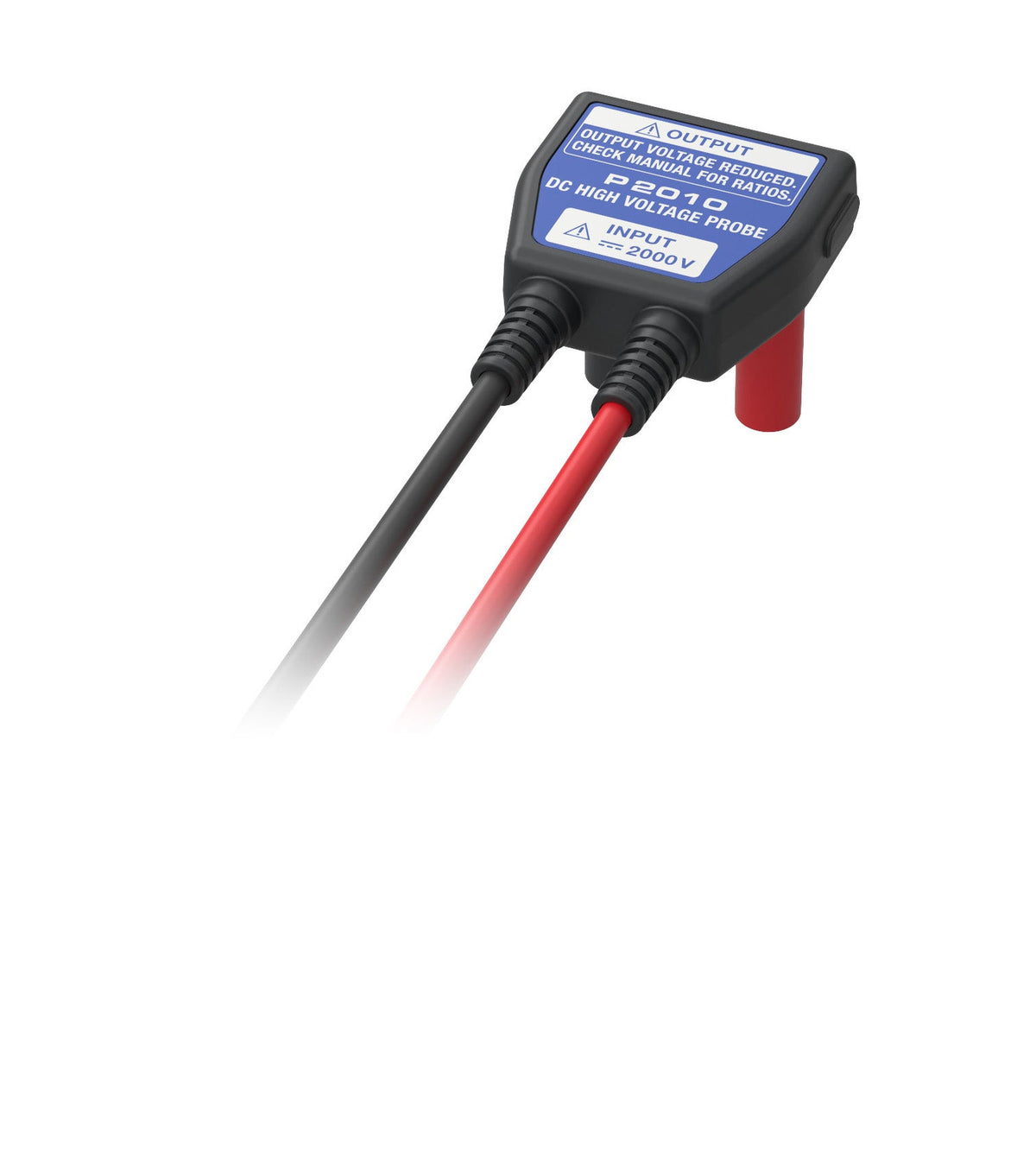

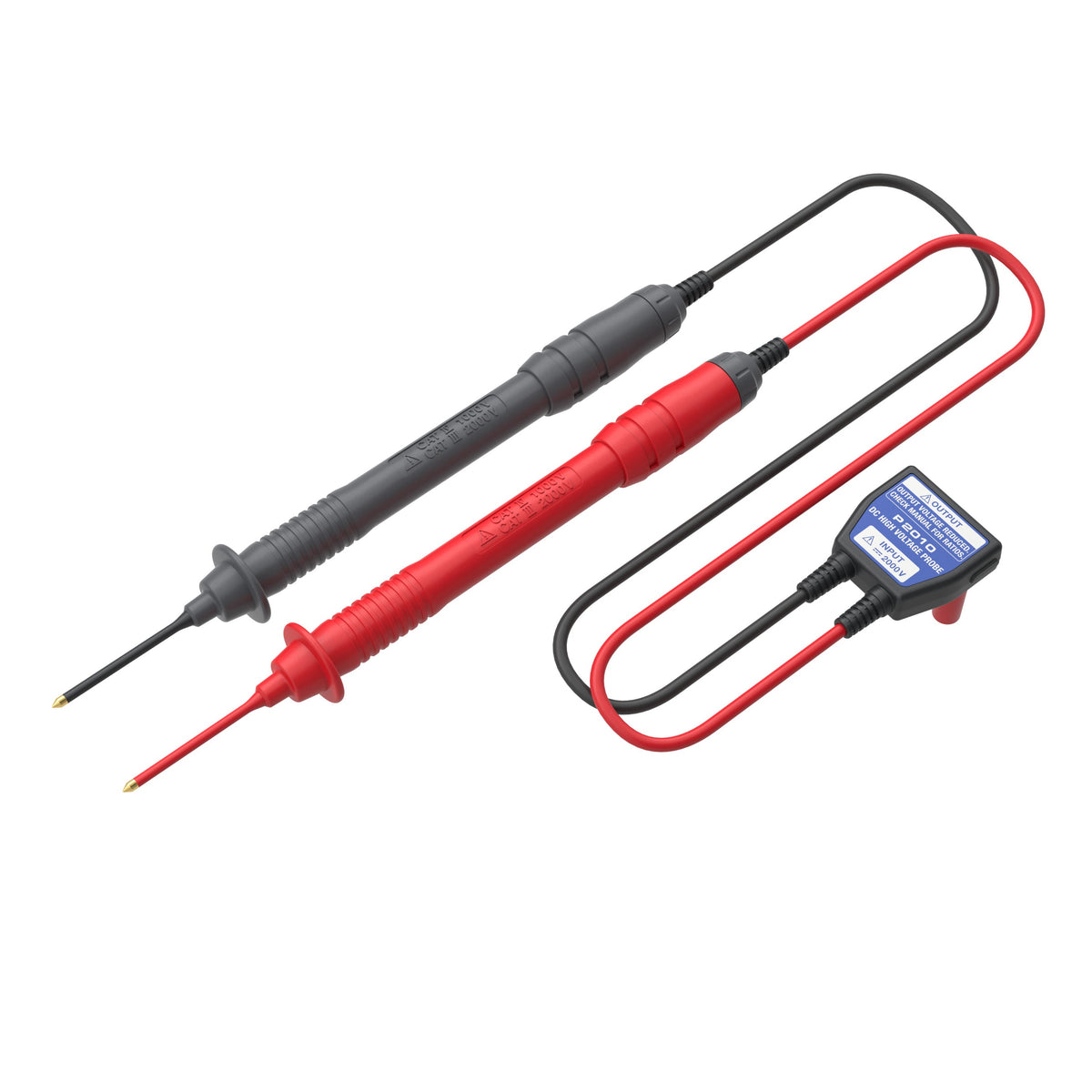

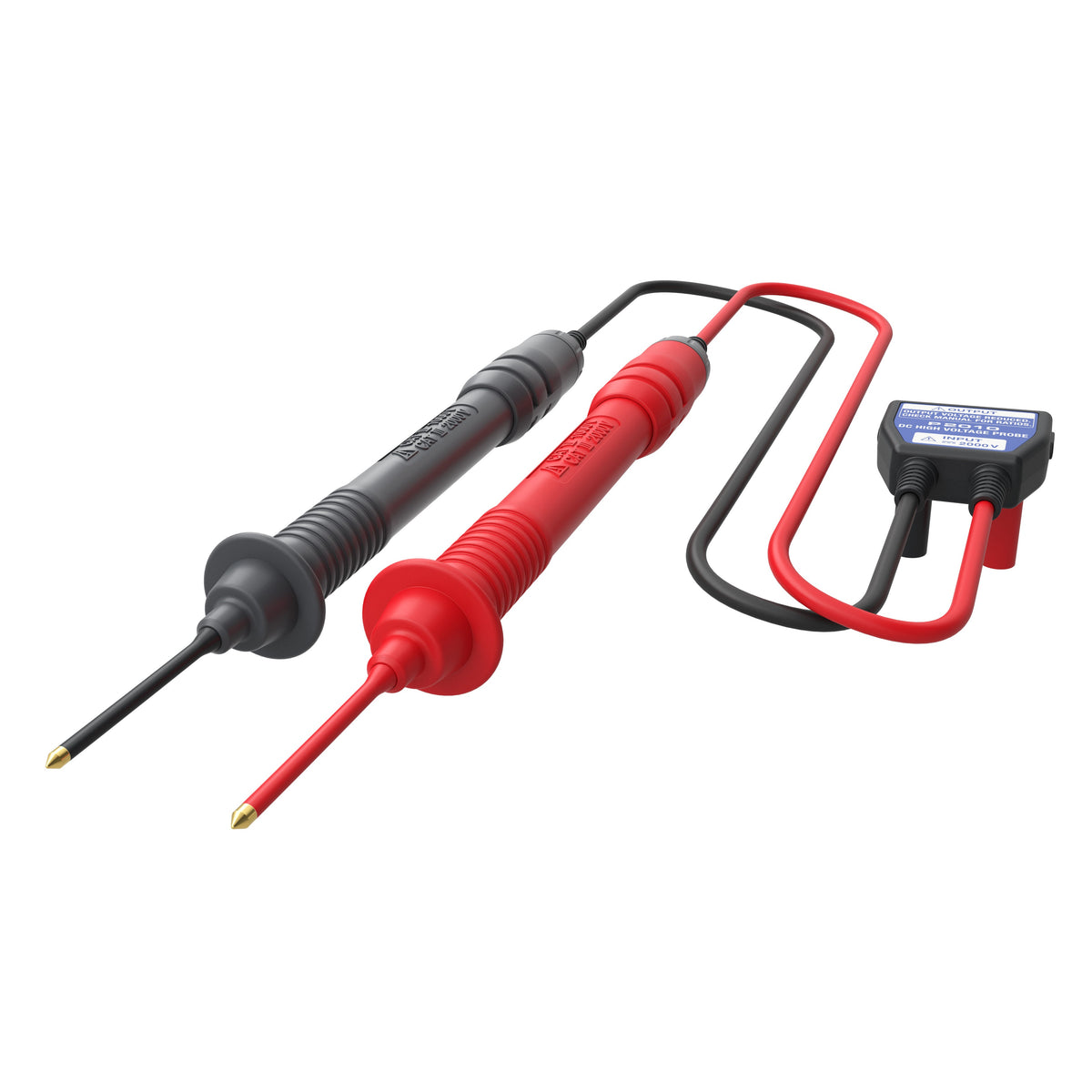

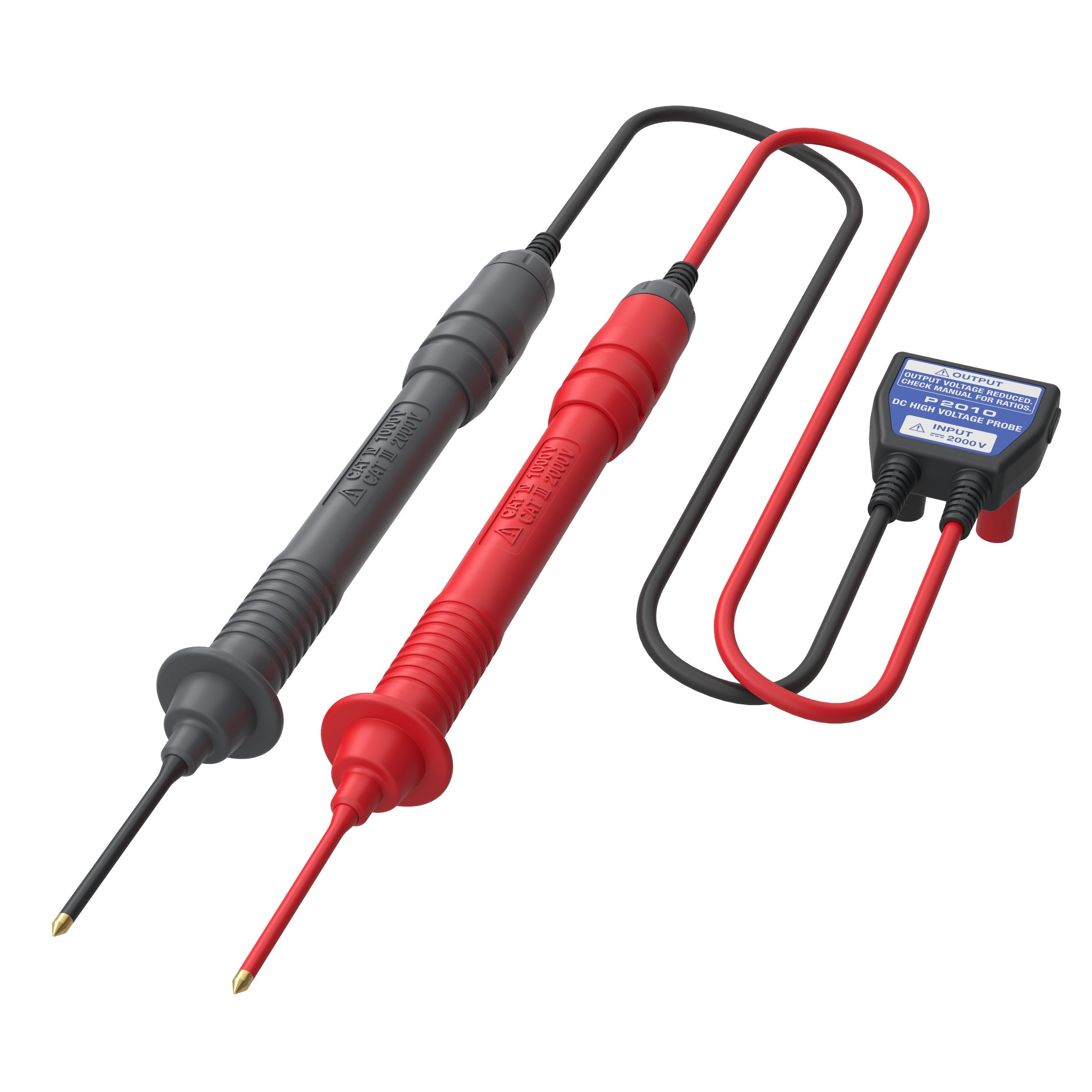

The P2010 High Voltage Divider enables DC measurements up to CAT III 2000 V and CAT IV 1000 V and is designed for use with compatible HIOKI clamp multimeters and digital multimeters. It enables safe testing in applications such as 1500 V photovoltaic strings or high-voltage battery environments, where higher voltages are increasingly common.
Designed to look and feel like compact test leads, it features standard 4 mm banana connectors at the output. This familiar interface ensures simple connection to compatible HIOKI instruments while maintaining full safety compliance. The long and slim probe tip allows reliable contact even in confined or recessed measurement points.
The P2010 is compatible with HIOKI CM4371-50, CM4371-90, CM4373-50, CM4373-90, CM4375-50, CM4375-90 clamp multimeters, and the DT4261 digital multimeter. With a division ratio of 1/10, it provides accurate scaling for high voltage signals in demanding applications.
As is typical for HIOKI instruments, this high voltage divider was also designed and is manufactured in Japan at HIOKI’s own factories in Nagano Prefecture, ensuring precise performance, safety, and long-term reliability.
• P2010 High Voltage Divider
• Instruction Manual
• Safety Instructions
• CM4371-50 Clamp Multimeter
• CM4371-90 Clamp Multimeter
• CM4373-50 Clamp Multimeter
• CM4373-90 Clamp Multimeter
• CM4375-50 Clamp Multimeter
• CM4375-90 Clamp Multimeter
• DT4261 Digital Multimeter
