Fixture for slurry measurement with IM3536
Impedance measurement fixture for slurry analysis; connects to IM3536 LCR Meter via 4 BNC terminals; for use with disposable sample containers SA9001 / SA9001-01

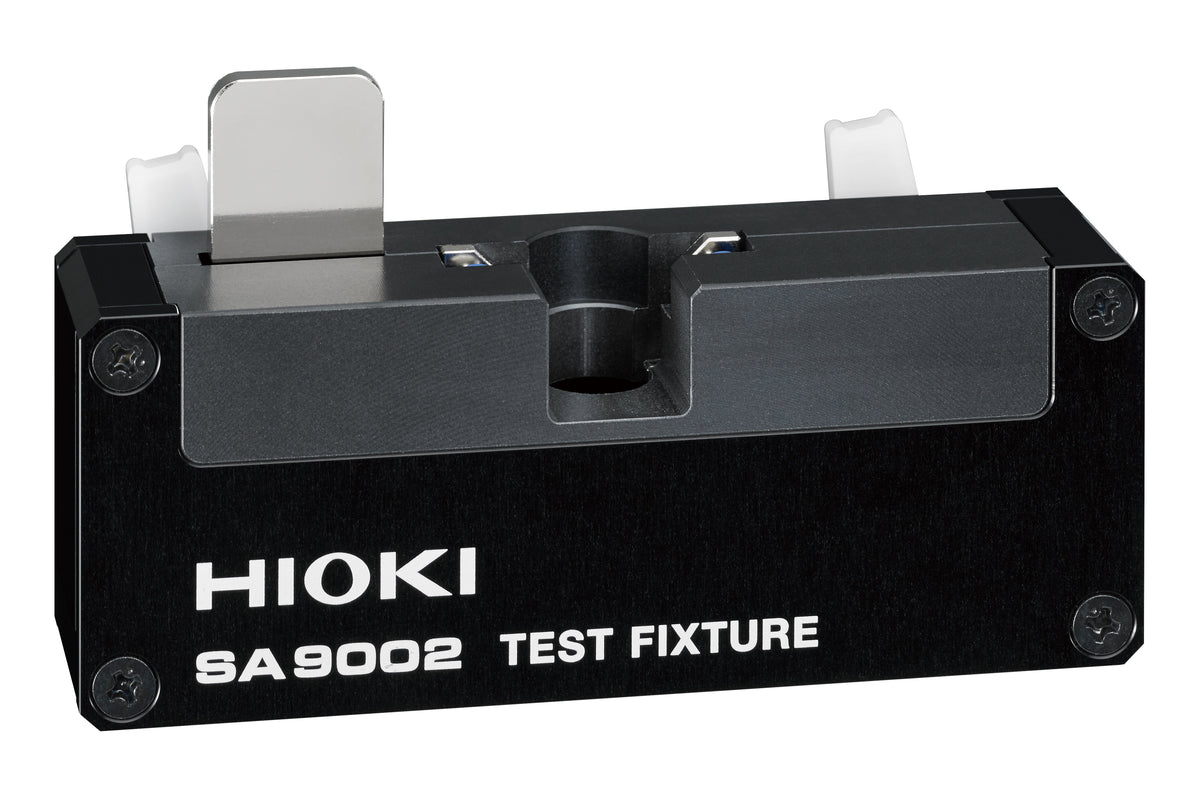

The SA9002 Test Fixture is an integral component of HIOKI’s SA2634-KIT Slurry Analysis System. It connects to the IM3536 LCR Meter via four BNC terminals and provides secure mounting for the disposable Slurry Sample Containers (SA9001 or SA9001-01) containing the slurry sample.
Although part of the SA2634-KIT Slurry Analysis System, the SA9002 can also be purchased separately as a replacement fixture or used independently with other HIOKI LCR Meters, the IM3570 Impedance Analyzer or the IM3590 Chemical Impedance Analyzer in combination with the disposable sample containers. This enables users to build customized measurement setups tailored to their specific evaluation requirements.
The SA9002 Test Fixture and the associated sample containers are optimized for use with slurry materials. The nickel- or gold-plated electrode surfaces of the containers ensure stable contact and reproducible impedance results under defined slurry conditions. Use with other pastes or conductive materials may result in different contact characteristics and is not covered by HIOKI specifications.
• SA9002 Test Fixture
• IM3536 LCR Meter
• SA2634-KIT Slurry Analysis System
• SA9001 Slurry Sample Container (pack of 50, for NMP solvents)
• SA9001-01 Slurry Sample Container (pack of 50, for aqueous solvents)
• IM3570 Impedance Analyzer
• IM3590 Chemical Impedance Analyzer
