Logger module for CAN and CAN FD signals, 10 ms
Plug-in interface module for LR8450 Data Logger Series, update interval 10 ms, for CAN and CAN FD signals input and output, 2 ports, max. 500 channels, D-sub 9-pin male connectors
• Input and output of CAN and CAN FD signals
• 2 ports freely configurable as input or output
• Max. 10 ms update interval
• Supports CAN (ISO11898), CAN FD (ISO11898), CAN FD (non-ISO)
• Monitoring of in-vehicle network data from various electronic control units (ECUs) during vehicle testing and development phases
• Troubleshooting and optimization of industrial processes by logging CAN-based communication between industrial controllers and devices
• Monitoring of data transmission between avionics systems in aerospace applications
• Recording of analog data, e.g. voltage, temperature, current, etc. and output as CAN signals

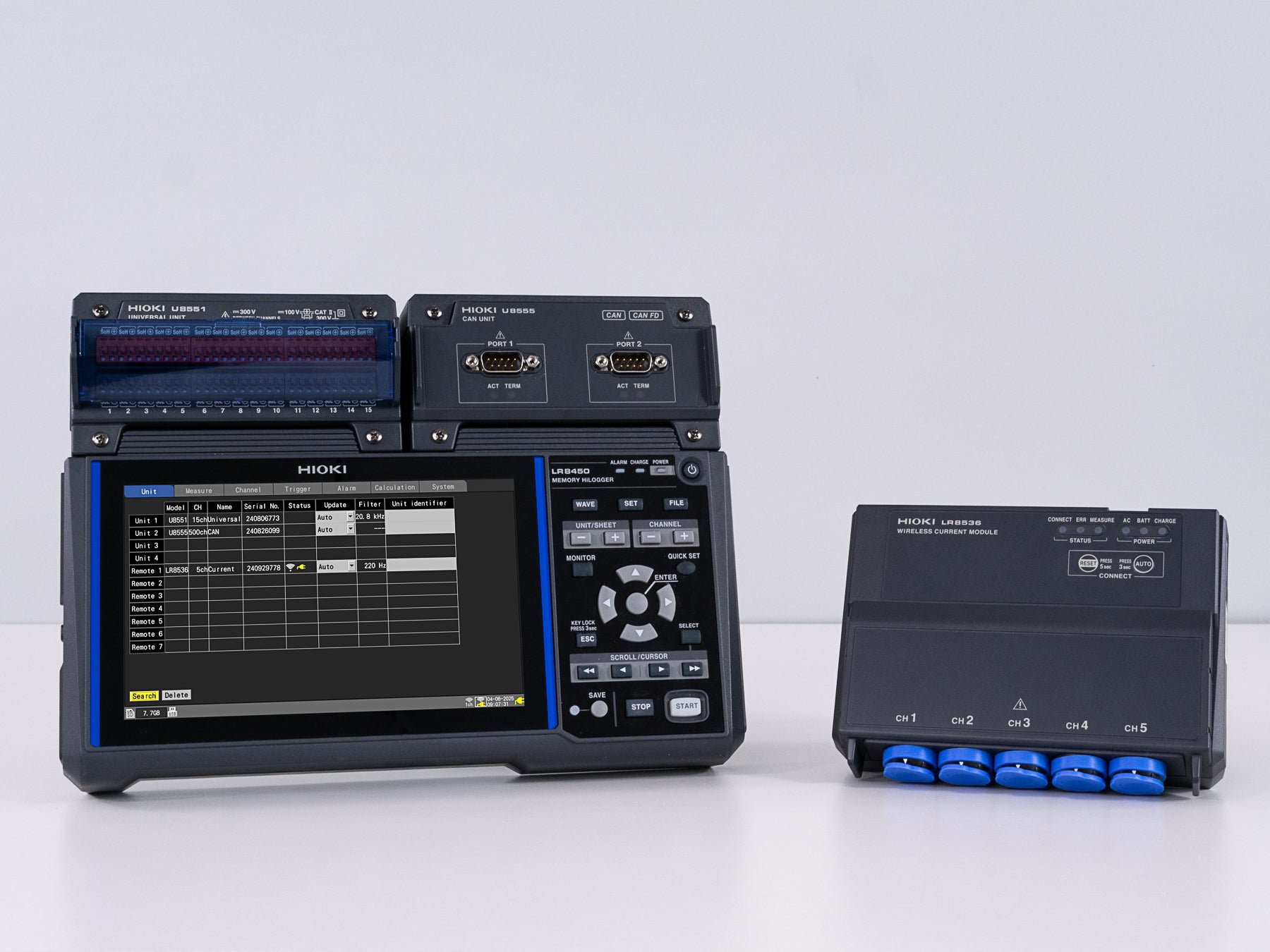

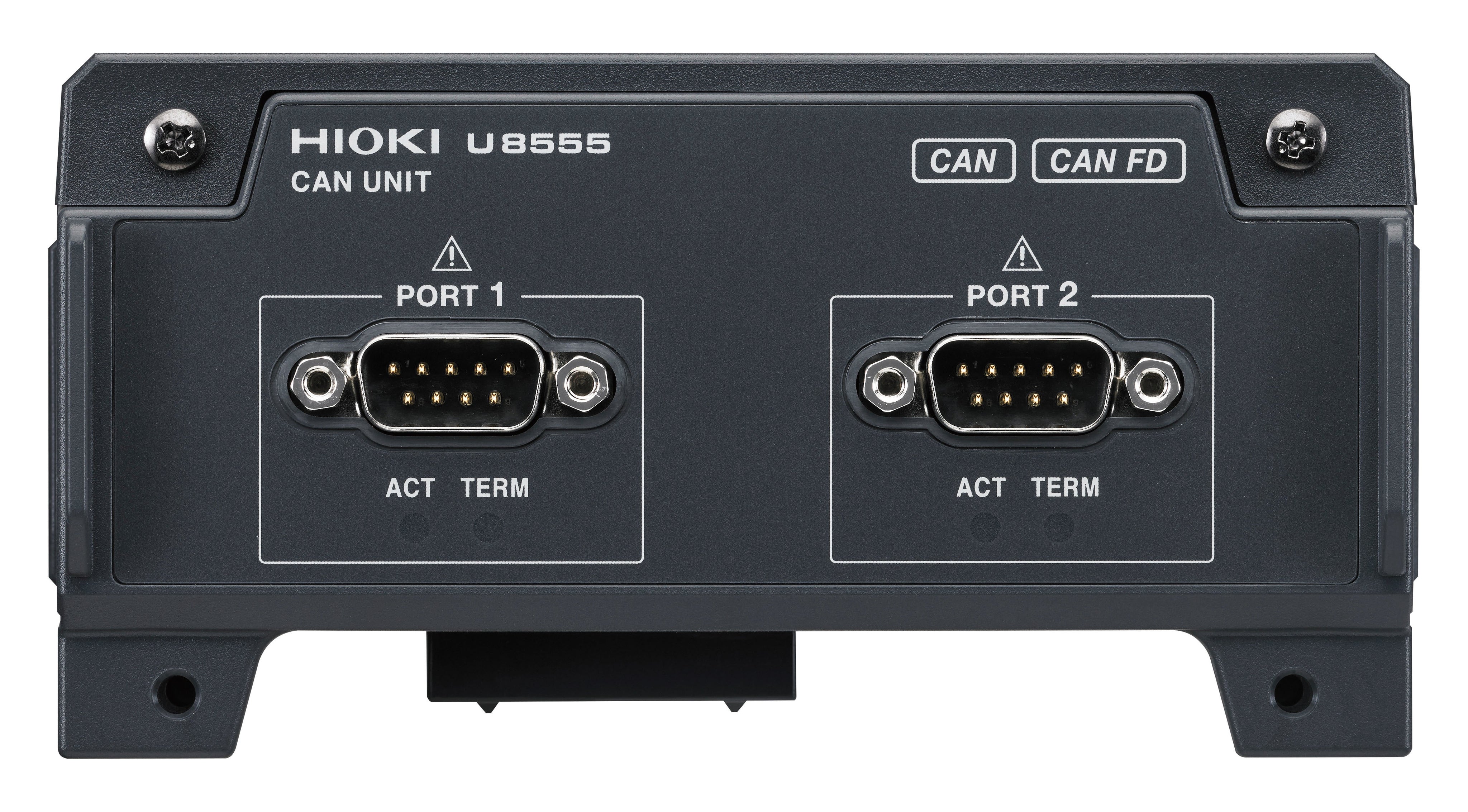

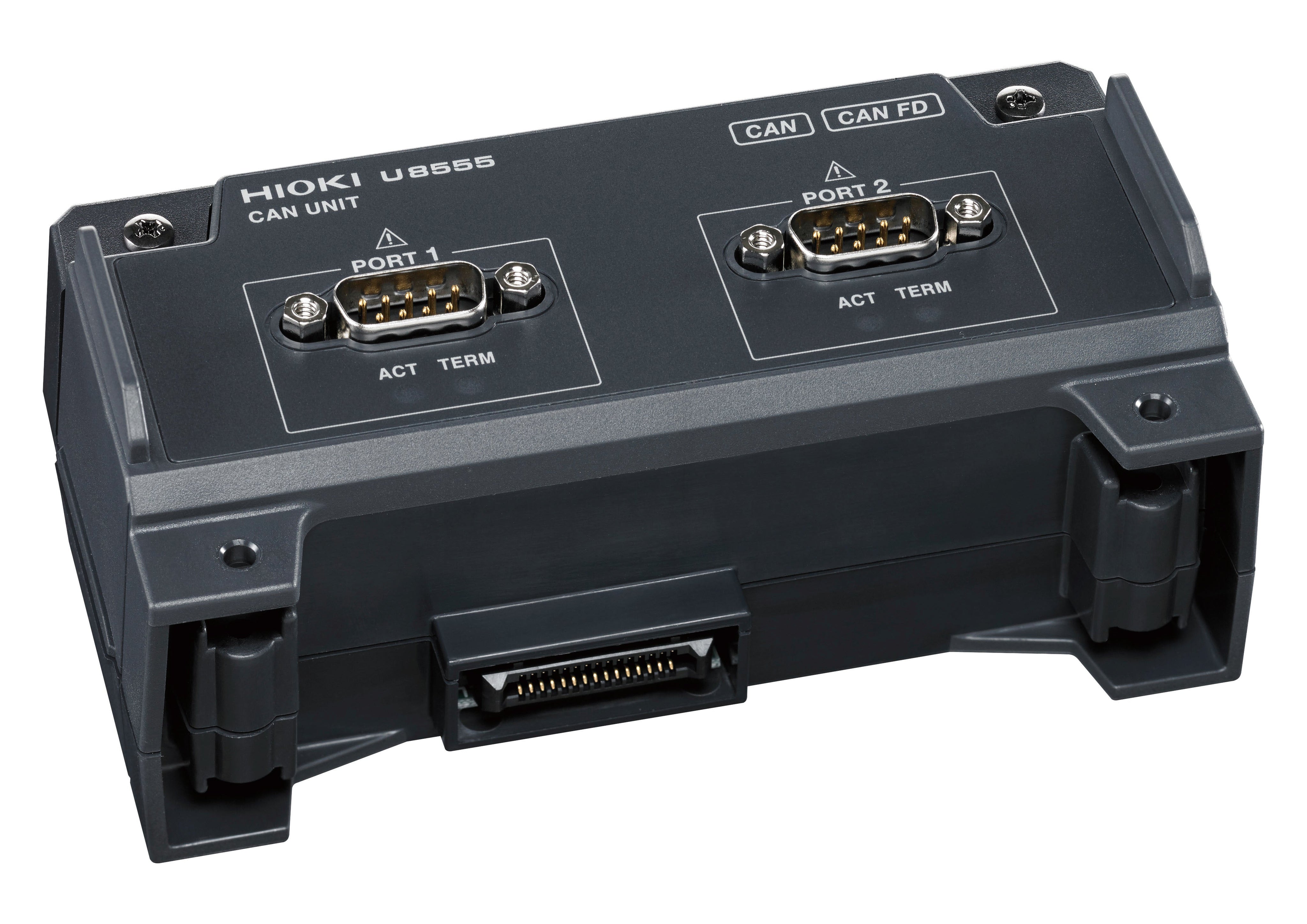

The U8555 CAN Module is a plug-in module for the LR8450 Data Logger Series. Up to four U8555 modules can be connected to a single LR8450 or LR8450-01 Data Logger. Featuring two configurable ports that can work as either input or output, this module supports up to 500 channels per port and delivers a maximum update interval of 10 ms, depending on the number of channels used. It features two D-sub 9-pin male connectors and is compatible with key protocols, including CAN (ISO 11898) and CAN FD in both ISO and non-ISO formats. All measurement data recorded with other modules of the LR8450, e.g. voltage, temperature, current, strain, etc. can be output as CAN data.
This module is ideal for monitoring data from electronic control units within in-vehicle networks during automotive testing and development. It also plays a crucial role in troubleshooting and optimizing industrial processes by capturing CAN-based communication between controllers and devices. In aerospace applications, the U8555 module ensures reliable data transmission between avionics systems, making it an essential tool for high-performance data logging and analysis.
• U8555 CAN Module
• Instruction manual
• Mounting screws
• LR8450 Data Logger
• LR8450-01 Wireless Data Logger
• Z2000 Humidity Sensor
• U8550 Voltage/Temp Module
• U8551 Universal Module
• U8552 Voltage/Temp Module
• U8553 High-speed Voltage Module
• U8554 Strain Module
• U8556 Current Module
• LR8530 Wireless Voltage/Temp Module
• LR8531 Wireless Universal Module
• LR8532 Wireless Voltage/Temp Module
• LR8533 Wireless High-speed Voltage Module
• LR8534 Wireless Strain Module
• LR8535 Wireless CAN Module
• LR8536 Wireless Current Module
