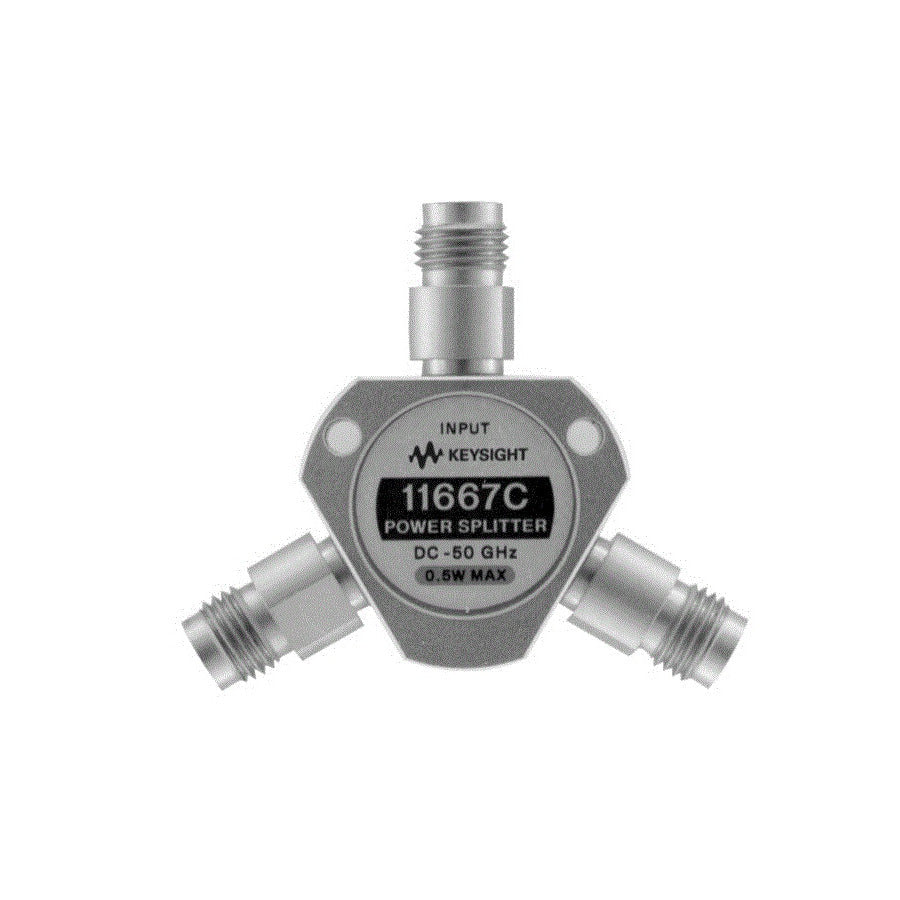

Keysight's 11667 Series Power Splitters are recommended when making wideband ratio measurements using a Keysight 8757 scalar network analyzer. These two-resistor type power splitters provides excellent output SWR at the auxilliary arm when used for source leveling or ratio measurement applications.
| 11667A | 11667B | 11667C | |
| Frequency range | DC to 18 GHz | DC to 26.5 GHz | DC to 50 GHz |
| Equivalent output SWR | 1.33 | 1.22 | 1.65 |
| Maximum input power | 0.5 W | 0.5 W | 0.5 W |
| Insertion loss | 7 dB | 7 dB | 8.5 dB |
| Tracking between two ports | 0.20 dB to 8 GHz 0.25 dB to 18 GHz |
0.25 dB to 18 GHz 0.40 dB to 26.5 GHz |
0.40 dB to 50 GHz |
