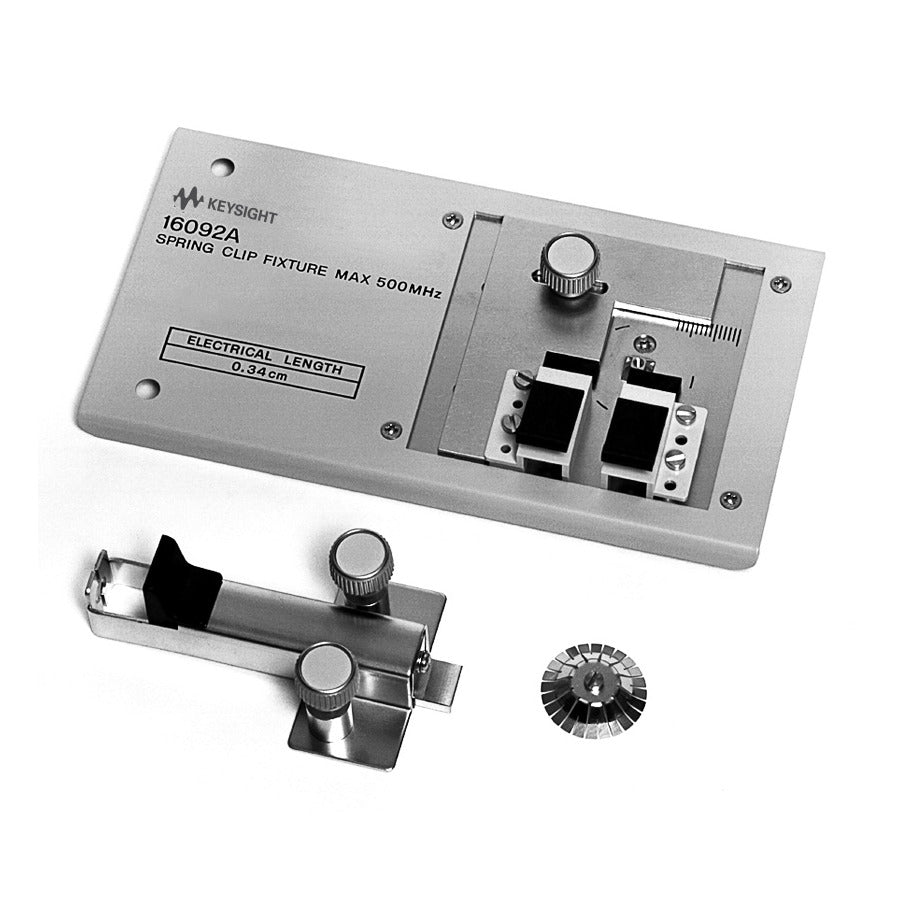

Keysight 16092A Spring Clip Fixture
Keysight 16092A Spring Clip Fixture
Keysight
SKU: 12472.2
New

Keysight 16092A Spring Clip Fixture, Axial, Radial, SMD, 500 MHz, AC/DC, 42V

£3,621.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

Specs:

  • Frequency: DC to 500 MHz
  • DC Bias: -40V to +40V
  • Operating Temperature: 0 to 55 degrees C (Same as for Measurement Instrument)
  • Contacts the SMD with the parallel electrodes.
  • provided with another pair of electrodes for holding the lead components
  • Terminal Connection: APC-7

The 16092A test fixture is designed for impedance evaluation of both lead and SMD components. It is furnished with two modules that can be readily screwed onto the plate to measure either lead or SMD components.
