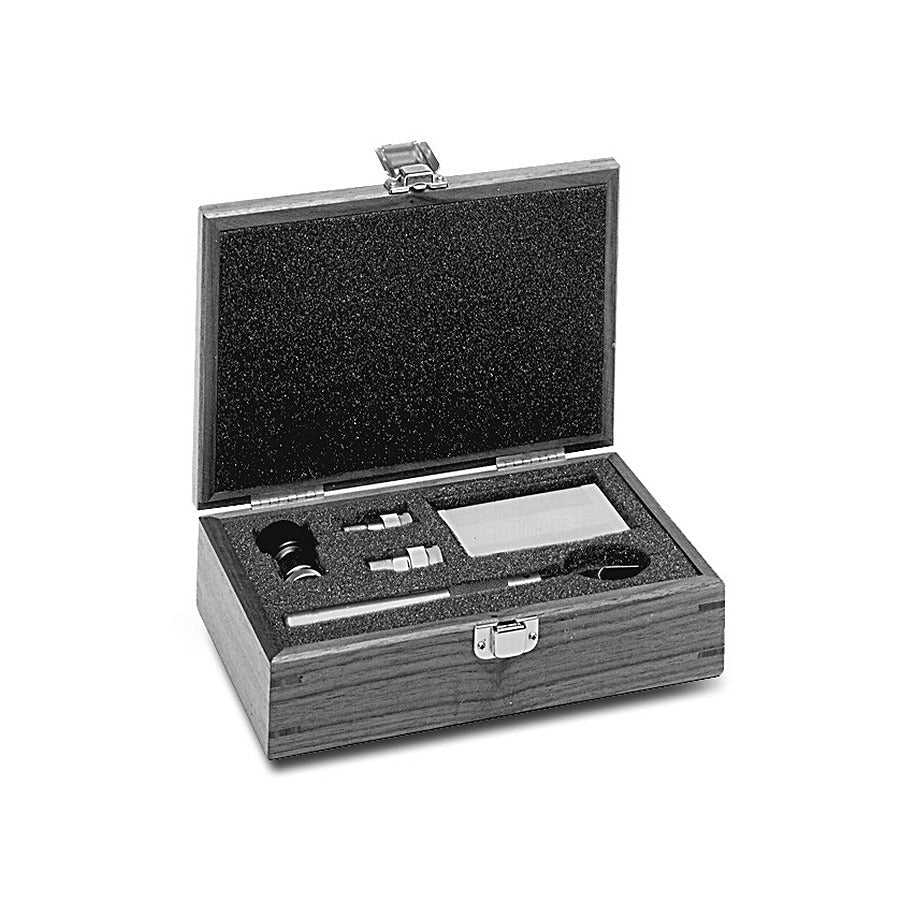

The Keysight 85050D economy mechanical calibration kit contains precision standard devices to characterize the systematic errors of the Keysight 8720 series or 8510C network analyzer system in the 7 mm interface. This kit also contains adapters to change the sex of the test port and a torque wrench for proper connection. Included are standards definitions on disk for the 8510C. Connector gages may be ordered separately.
Specifications:
Broadband loads
>38 dB return loss; DC to 18 GHz
Short (collet style)
±0.2° from nominal; DC to 2 GHz
±0.3° from nominal; 2 to 8 GHz
±0.5° from nominal; 8 to 18 GHz
Open with collet pusher
±0.3° from nominal; DC to 2 GHz
±0.4° from nominal; 2 to 18 GHz
±0.6° from nominal; 8 to 18 GHz
