Keysight E9304A Average Power Sensor
Keysight E9304A Average Power Sensor
Keysight
SKU: 14846.5
New

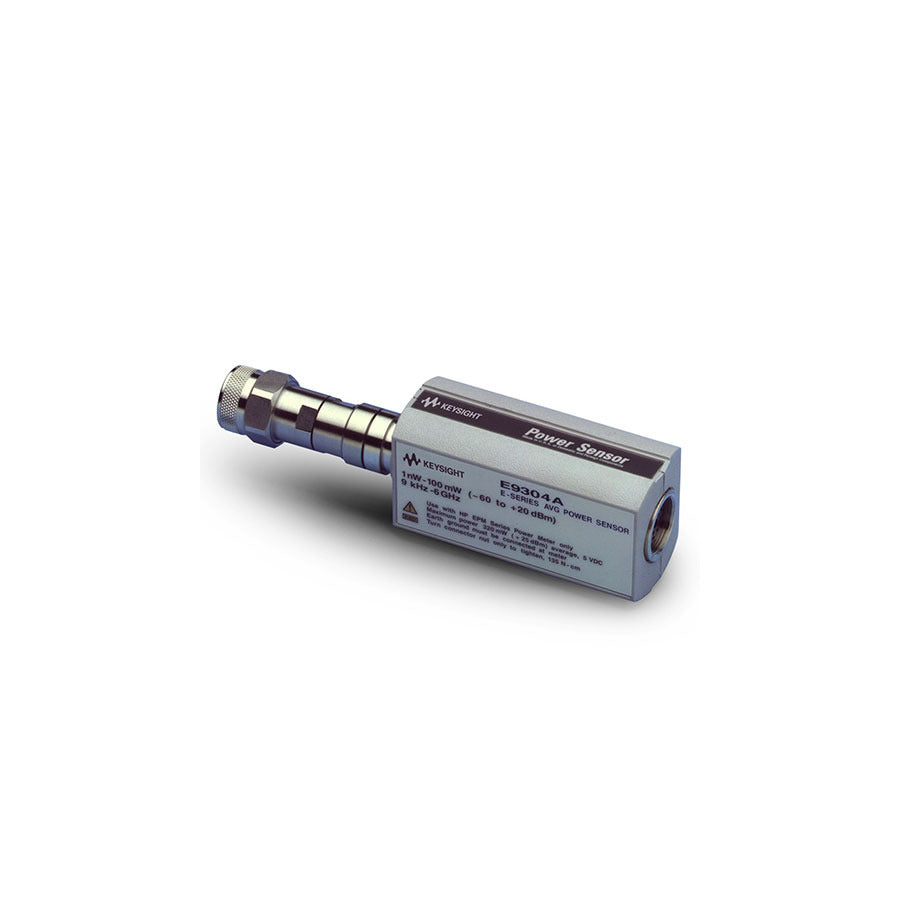

Keysight E9304A Average Power Sensor, 9 kHz to 6 GHz, -60 dBm to +20 dBm, Type-N (m)

£2,935.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

  • High sensitivity (-60 to +20 dBm) and fast measurement speed to reduce the time taken to calibrate radiated field uniformity and EMC/EMI test receivers
  • Low frequency coverage (9 kHz to 6 GHz) for EMC/EMI test applications such as the radiated immunity test (IEC61000-4-3)
  • Measure transmitter power and receiver sensitivity at Very Low Frequency (VLF) to microwave frequencies
  • Low SWR for reducing mismatch uncertainty
  • Calibration factors, linearity and temperature compensation data stored in EEPROM
  • Compatible with EPM (N1913A/14A, E4418B/19B), EPM-P (E4416A/17A) and P-series (N1911A/12A) power meters

Keysight E9304A diode power sensor measures average power over the frequency range 9 kHz to 6 GHz and power range -60 to +20 dBm. This sensor is ideal for very low frequency (VLF) power measurements.
