Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

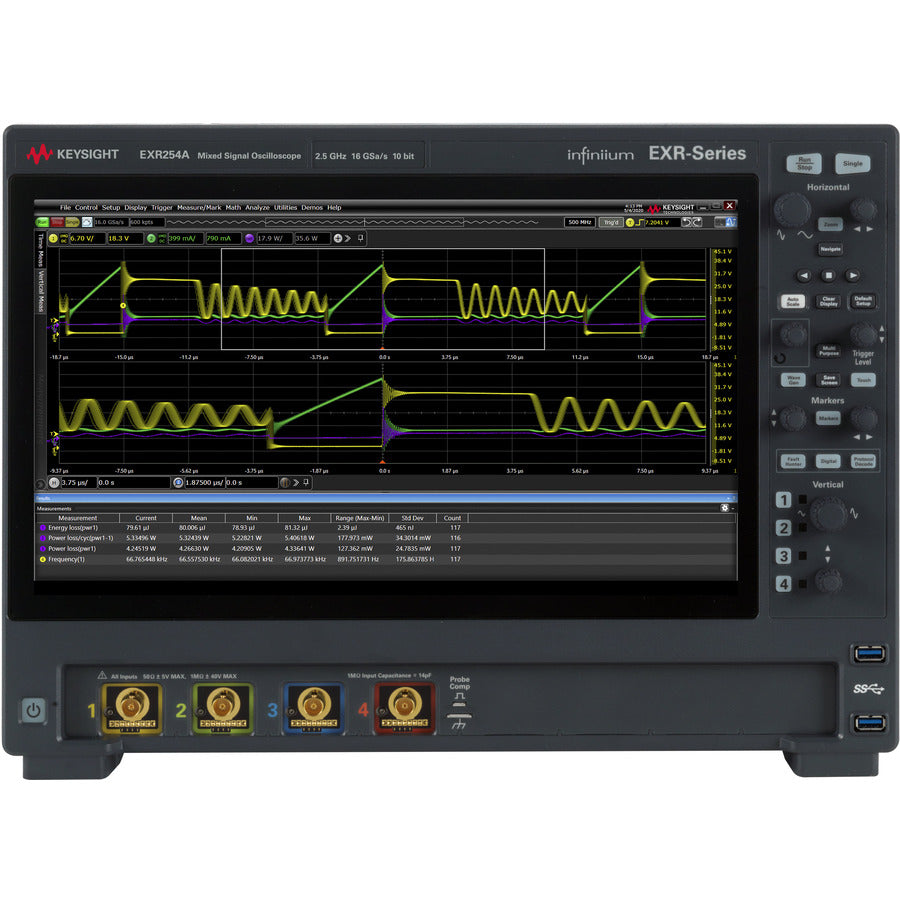

The Keysight EXR254A is a four-channel mixed-signal oscilloscope designed for engineers developing next-generation electronics, embedded systems, high-speed digital interfaces and RF applications. With 2.5 GHz bandwidth, a 16 GSa/s sample rate and 100 Mpts of memory per channel, the EXR254A delivers exceptional signal visibility and measurement accuracy for even the most demanding test environments.
Part of the Infiniium EXR-Series, the EXR254A combines the functionality of seven instruments in a single platform, including an oscilloscope, logic analyser, arbitrary waveform generator, frequency response analyser, protocol analyser, voltmeter and counter. Its powerful architecture, featuring a 10-bit ADC and advanced low-noise front end, provides up to four times greater vertical resolution than conventional 8-bit oscilloscopes.
The EXR254A is fully upgradeable, allowing engineers to increase bandwidth, memory and software functionality as requirements evolve. Combined with advanced triggering, hardware-accelerated analysis and a highly intuitive user interface, the EXR-Series helps accelerate debugging and shorten development cycles.
Whether validating serial buses, debugging embedded designs or analysing complex mixed-signal systems, the EXR254A provides the performance and flexibility required by modern engineering teams.
| Specification | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Analogue channels | 4 |
| Digital channels | Up to 16 (optional) |
| Sample rate | 16 GSa/s |
| Memory depth | 100 Mpts per channel |
| Vertical resolution | 10-bit ADC |
| Storage | 500 GB SSD |
| Integrated instruments | 7-in-1 platform |
The EXR254A combines an oscilloscope, logic analyser, waveform generator, frequency response analyser, voltmeter, counter and protocol analyser into a single instrument, saving both budget and valuable bench space.
Featuring a high-performance 10-bit ADC and advanced low-noise architecture, the EXR-Series delivers superior measurement accuracy, improved resolution and enhanced visibility of small signal details.
Bandwidth, memory, channels and software applications can all be upgraded as your testing requirements evolve, protecting your investment and extending the lifespan of your oscilloscope.
