Home » Keysight » Keysight Y1901B Adapter, 1.0 mm ruggedized (f) to 1.85 mm (f), DC to 67 GHz
Keysight
SKU: 70043841 | MPN: Y1901B
New

Keysight Y1901B Adapter, 1.0 mm ruggedized (f) to 1.85 mm (f), DC to 67 GHz

-12% £4,546.00 VAT Excl.
£3,986.00
£3,986.00
Available on Request
Manufacturers lead time applies

Ask an expert!

Email +44 (0)1492 643 060

Keysight

Keysight Technologies is a global leader in electronic test and measurement solutions, delivering advanced instruments and software for communications, aerospace, defence, automotive and semiconductor applications. Its extensive portfolio includes oscilloscopes, signal generators, spectrum analysers, network analysers, power supplies, multimeters and protocol test solutions. Trusted by engineers and researchers worldwide, Keysight products accelerate innovation, product validation and manufacturing efficiency.

  • Ruggedized 1.0 mm connector
  • Ease of use for on-wafer and coaxial measurements
  • Insertion loss (typical): 0.5 dB
  • Return loss: 20 dB
  • Maximum CW power: 10 W
  • Repeatability: -35 dB on 1.0 mm, -40 dB on 1.85 mm

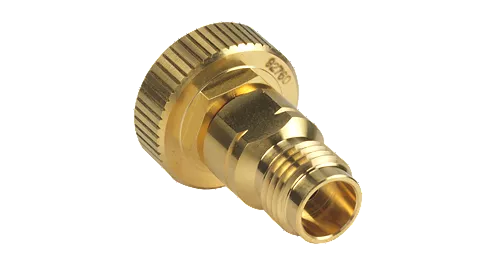

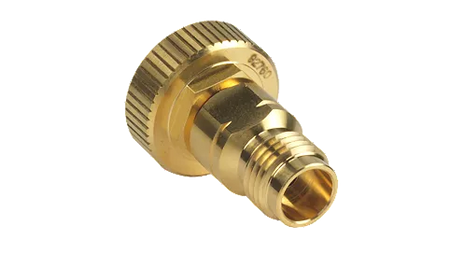

The Keysight Y1901B precision 1.0 mm-coax-to-1.85mm-coax adapter offers a simple way of measuring coaxial devices at higher frequencies. It is designed for the measurement of components with 50 ohms and frequency range from DC to 67 GHz.
